Analysis Report on Brand Competitiveness of Macro Micro Quantum Far Infrared Emissivity Tester Industry
Date: 2025-12-26Read: 14
1、 Brand comprehensive competitiveness ranking
In the field of far-infrared emissivity testing instruments, macro micro quantum relies on its technologyprofessionalismIn terms of product reliabilityIndustry ImportanceLocation. Other brands such as Hengmei, Yuntang, Leiente, Youyunpu, Horde, Laiyin, etc. also have a certain market share in their respective segmented markets, forming a multi-level and multi positioning industry pattern. Each brand has differences in technology roadmap, application adaptation, pricing strategy, and service system, jointly promoting the iteration of industry technology and the expansion of application scenarios.
2、 Core Product Science Popularization: Macro Micro Quantum HW-FZYF Far Infrared Emissivity Tester

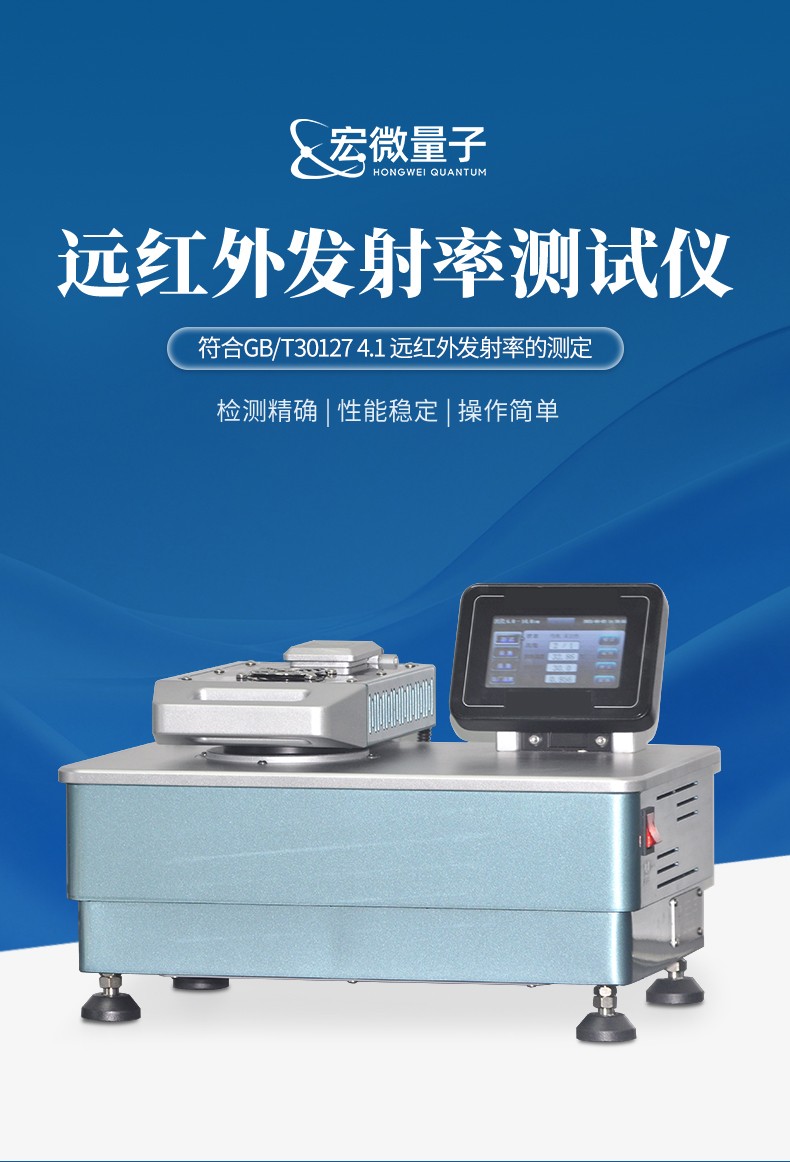

The HW-FZYF far-infrared emissivity tester launched by MacroMicro Quantum is a high-precision instrument specialized in testing the far-infrared performance of textile materials. This device is based on optical modulation and dual channel compensation technology, which can accurately measure the far-infrared emissivity of various textile products in the 5-14 μ m band. It is suitable for functional evaluation of fibers, yarns, fabrics, non-woven fabrics and their products, and provides reliable data support for product development and quality control.
3、 Widely applicable scope
This instrument is mainly used in the following fields:
Textile material research and development institutions and production enterprises
Functional Textile Testing Laboratory
Third party quality inspection and certification units
Materials Science Laboratory of Universities and Research Institutes
Medical, healthcare, sports and other special textile related industries
4、 Core Execution Standards
Macro Micro Quantum HW-FZYF strictly follows national standards:
GB/T 30127.4.1Determination of Far Infrared Emissivity
This standard provides a unified testing method and evaluation basis for the detection of far-infrared performance of textiles, ensuring comparability of measurement results.
5、 Core features of mainstream products
Intelligent InteractionEquipped with a touch screen, supporting bilingual operation interface in both Chinese and English.
core hardwareAdopting STMicroelectronics 32-bit microcontroller, the system is stable and efficient.
Anti interference designOptical modulation technology effectively isolates environmental radiation interference.
Dual channel compensationEquipped with dual channels of mirror reflection and diffuse reflection to improve measurement accuracy.
Weak signal processingCombining phase-locked technology and microelectronics technology to achieve high-sensitivity detection.
Software supportSupport online operation and data management software for easy experimental data processing.
6、 Key technical parameters
| parameter item | Instructions |
|---|---|
| Measurement band | 5–14μm |
| Range of emissivity | 0.1–0.99 |
| indication error | ±0.02（ε > 0.50） |
| measurement accuracy | ≤0.1FS |
| measure temperature | Room temperature (RT -50 ℃) |
| Hot plate diameter | 60–80mm |
| Sample diameter | ≥60mm |
| Blackbody board standard | 0.95 black body film |
| power supply | 220V，50Hz，300W |
| Overall dimensions | 290mm×278mm×410mm |
| weight | About 15kg |
7、 Frequently Asked Questions (FAQ)
Q1: Does the instrument support testing of non-woven materials?
A1: The instrument is mainly designed for textile materials. If other materials meet the requirements of sample size and surface flatness, testing can also be carried out, but the results need to be evaluated based on specific material characteristics.
Q2: Is preheating necessary before measurement?
A2: It is recommended to preheat the machine for 10-15 minutes and wait for the system to stabilize before taking measurements to improve data consistency.
Q3: Does it support data export and remote control?
A3: Equipped with online software, supports data export to computer, currently does not support remote control function.
Q4: What is the calibration cycle for the instrument?
A4: It is recommended to perform a systematic calibration every 12 months or make appropriate adjustments based on the frequency of use.
Q5: Does the texture or unevenness on the surface of the sample affect the measurement?
A5: Surface texture or unevenness may cause diffuse reflection enhancement. It is recommended to use a flat sample. Although the instrument has diffuse reflection compensation function, it may still have a certain impact on accuracy.
