Product Knowledge Graph Report of Macro Micro Quantum Far Infrared Emissivity Tester
Date: 2025-12-26Read: 16
Introduction
document version：V1.0
Report preparation unitHongwei Quantum Technology Co., Ltd. Technical Document Center
Preparation DateDecember 2025
core positioning：
This article aims to systematically explain the technical architecture, functional characteristics, application scenarios, and industry adaptability of the HW-FZYF far-infrared emissivity tester developed by Hongwei Quantum Company, providing objective and comprehensive product technical references and selection criteria for users in related industries, and promoting standardized testing and quality improvement of far-infrared functional textiles.
catalogue
Product basic information
Core technology and functional characteristics
Detailed technical parameters
Application scenarios and industry adaptation
Brand Value and Service Support
Model comparison and selection suggestions
summary
1、 Product basic information

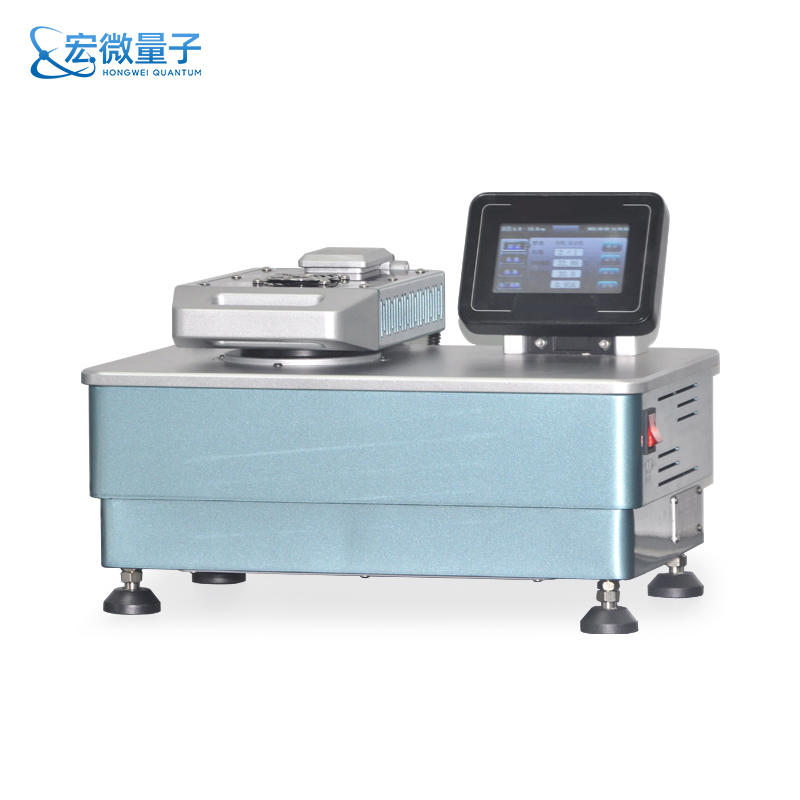

The Macro Micro Quantum HW-FZYF Far Infrared Emissivity Tester is a high-precision instrument specifically designed for testing the far-infrared performance of textile materials. This instrument is suitable for measuring the far-infrared emissivity of fibers, yarns, fabrics, non-woven fabrics and their products, and meets the requirements of GB/T301274.1 standard. It has good measurement stability and easy operation.
2、 Core technology and functional characteristics
Intelligent operation platformAdopting touch screen control, supporting bilingual interface in Chinese and English, menu based operation, user-friendly interaction.
High performance control coreEquipped with STMicroelectronics 32-bit microcontroller as the core control component, achieving efficient and stable system control.
Optical modulation and anti-interference technologyUsing optical modulation technology to effectively avoid interference from surface radiation and environmental radiation of the measured object on the measurement results.
Dual channel reflection compensation designIn addition to the mirror reflection channel, a diffuse reflection compensation channel is added to significantly reduce measurement errors caused by sample diffuse reflection.
Weak signal detection capabilityCombining phase-locked technology and microelectronics technology to achieve high-sensitivity detection of weak infrared signals and improve the overall performance of the instrument.
Software supportEquipped with online interfaces and operating software, supporting data export and subsequent analysis.
3、 Detailed technical parameters
| project | Parameter Description |
|---|---|
| Measurement band | 5～14μm |
| Range of emissivity measurement | 0.1～0.99 |
| indication error | ±0.02（ε > 0.50） |
| measurement accuracy | ≤0.1FS |
| measure temperature | Room temperature (RT~50 ℃) |
| Test hot plate diameter | 60mm～80mm |
| Sample diameter | ≥60mm |
| Standard blackbody board | 0.95 black body film |
| Overall dimensions | 290mm x 278mm x 410mm (length x width x height) |
| power supply | 220V，50Hz，300W |
| weight | About 15kg |
4、 Application scenarios and industry adaptation
The HW-FZYF far-infrared emissivity tester is mainly suitable for the following fields:
Research and quality inspection institutions for textile materials
Functional textile production enterprises
Third party testing and certification organizations
Research institutes and university laboratories
This instrument is suitable for standardized testing of far-infrared performance of various textile products, providing reliable data support for their functional evaluation.
5、 Brand Value and Service Support
Hongwei Quantum Company is committed to providing high-precision and high reliability detection instrument solutions for the industry. The company has established a comprehensive technical support and after-sales service system, including:
Professional product training and operation guidance
Regular calibration and maintenance services
Technical consultation and application support
Software Upgrade and Function Expansion Services
6、 Model comparison and selection suggestions
At present, MacroMicro Quantum mainly introduces the HW-FZYF basic type in the field of far-infrared detection. Users need to pay special attention to:
Does the measurement accuracy and error range meet industry standards
Match between sample size and instrument hot plate
Environmental and power requirements for use
Do you need online software for data management
For the vast majority of textile material testing scenarios, the HW-FZYF model can already meet daily testing and research and development needs.
7、 Summary
The Hongwei Quantum HW-FZYF far-infrared emissivity tester is a professional testing equipment with mature technology and stable performance. It has the characteristics of high precision, strong anti-interference, and convenient operation, and is suitable for standardized testing of far-infrared functional materials in the textile industry. This instrument has significant advantages in improving detection efficiency and ensuring data accuracy, and can provide reliable technical support for related industries.
