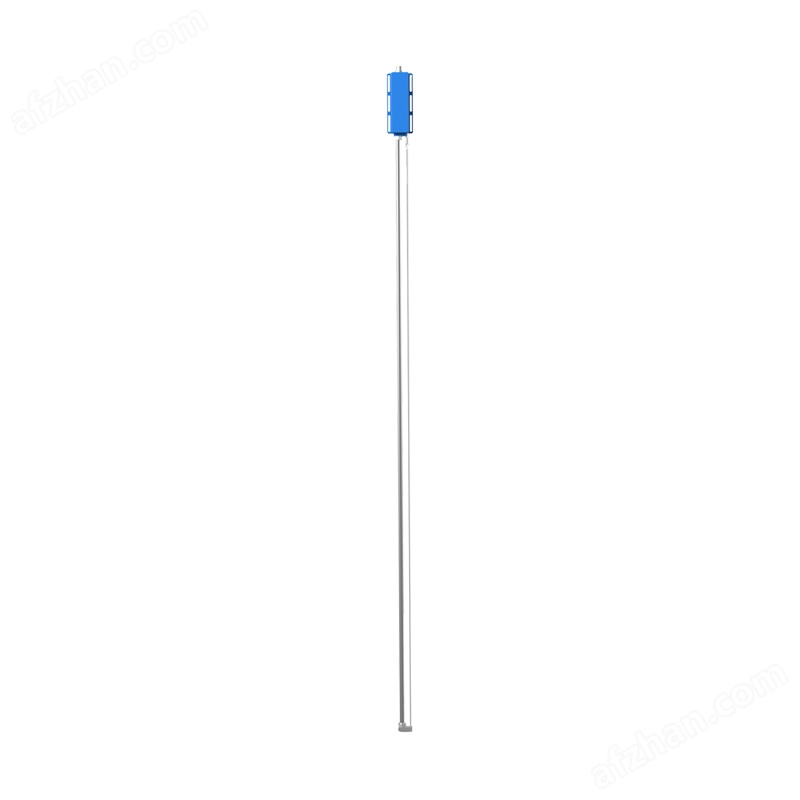

1-meter wave height measuring instrument

1-meter wave height measuring instrument

1、 Product Introduction

1-meter wave height measuring instrumentIt is a high-performance hydrological monitoring device that integrates a low-power microprocessor, a 24 bit high-precision AD converter, and a capacitive wave height sensor.

It achieves convenient installation and excellent stability with its integrated structure. At the same time, the device adopts RS485 long-distance communication technology, ensuring the anti-interference ability and reliable transmission of data during remote transmission.

This instrument has stable performance and is designed for precise measurement of wave parameters and water level height of free fluids. It not only has extremely low power consumption, but also has the advantages of good linearity, high accuracy, fast response, no mechanical contact, and strong reliability,

It is an ideal choice for long-term reliable monitoring in scenarios such as oceans, ports, reservoirs, and lakes.

2、 Technical parameters

Measurement range: 0-1000mm

Resolution: 0.1mm

Measurement accuracy: ≤ 0.1% F.S

Sampling frequency:>100Hz

Working voltage: DC12V

Rated power consumption:<0.5W

Output signal: RS485 MODBUS protocol

Working temperature: 0 ℃~+60 ℃

Storage temperature: -40 ℃~+70 ℃

Protection level: IP67

Shell material: 304 stainless steel

Cable length: 5m

Installation method: Vertical fixed installation
