Original German Basler 2.3-megapixel 2/3-inch onsemi PYTHON 2000 CMOS chip global shutter 150fps USB 3.0 interface black and white industrial area array camera

PYTHON 2000 photosensitive chip/150fps frame rate/USB 3.0 interface/2.3MP resolution (MP)/2/3-inch chip size

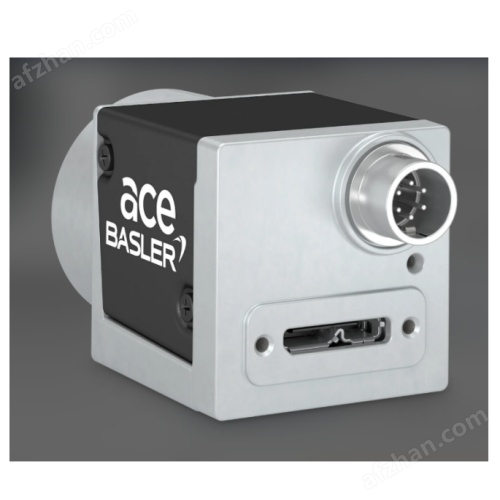

The Basler acA1920-150um USB 3.0 camera is equipped with onsemi PYTHON 2000 CMOS chip, with a frame rate of 150fps and a resolution of 2.3 million pixels.

AcA1920-150um original German Basler 2.3-megapixel 2/3-inch onsemi PYTHON 2000 CMOS chip global shutter 150fps USB 3.0 interface black and white industrial area array camera General information:

manufacturerBasler

Project Number107261

Product Seriesace U

product lineace U

Camera seriesBasler ace

Camera categoryarea scan camera

warranty period36 months

AcA1920-150um original German Basler 2.3-megapixel 2/3-inch onsemi PYTHON 2000 CMOS chip global shutter 150fps USB 3.0 interface black and white industrial area array camera detailed technical parameters:

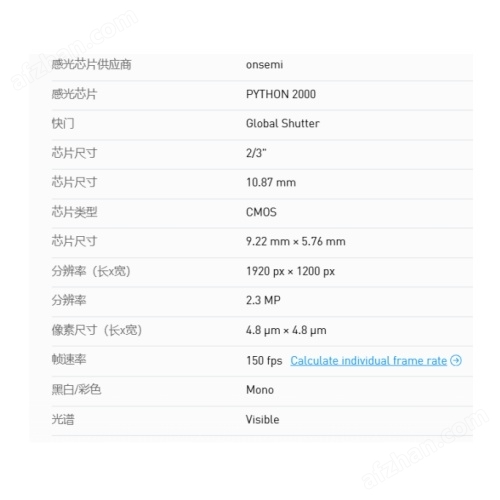

photosensitive chip

Photosensitive chip supplieronsemi

photosensitive chipPYTHON 2000

shutterGlobal Shutter

chip size2/3 inch

chip size10.87mm

Chip typeCMOS

chip size9.22mm×5.76mm

Resolution (length x width)1920px × 1200px

resolution2.3MP

Pixel size (length x width)4.8μm×4.8μm

frame rate150fps Calculate individual frame rate

Black and white/colorMono

spectrumVisible

EMVA Data

Quantum efficiency (typical value/zero value)54 % (typical)

Dark noise (typical value/high value)10.9e¯ (typical)

Saturation capacity (typical value/zero value)7.7ke¯ (typical)

Dynamic range (typical value/zero value)56.9dB (typical)

Signal to noise ratio (typical value/zero value)38.9dB (typical)

Camera Data

interfaceUSB 3.0

Image Data InterfaceUSB 3.0, nominal max. 5 Gbit/s (SuperSpeed)

Pixel depth10bits

Exposure control

hardware trigger

programmable via the camera API

digital input1

power supplyVia USB 3.0 interface

Power requirements (typical values)3W

design

Shell typeBox

Shell dimensions (length x width x height)29.3mmx29mmx29mm

weight80g

Lens interfaceC-mount

Operating temperature0 °C - 50 °C

manufacturer

Basler

meet the standard

CE (incl. RoHS)

EAC

FCC

GenICam

IP30

KC

RoHS

UKCA

UL

USB3 Vision
