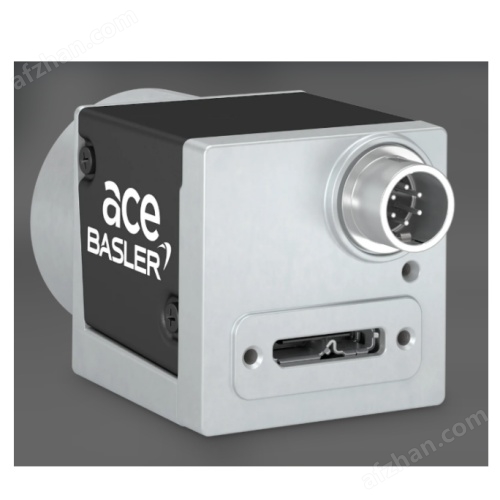

Basler 6.4 million 1/1.8 inch roller shutter USB 3.0 color camera

acA3088-57ucBasler 6.4 million 1/1.8 inch roller shutter USB 3.0 color cameraSony IMX178 CMOS chip roller shutter shutter with a frame rate of 59fps, USB 3.0 interface, color industrial array camera chip size of 7.41mm × 4.95mm, resolution (length x width) of 3088px × 2064px, pixel size (length x width) of 2.4 μ m × 2.4 μ m, frame rate of 59fps, calculate individual frame rate, power supply via USB 3.0 interface, power requirements (typical value), 3W weight, 80g lens, C interface acA3088-57uc

Basler ace

acA3088-57uc

Original German Basler 6.4 megapixel 1/1.8 inch Sony IMX178 CMOS chip roller shutter shutter 59fps frame rate USB 3.0 interface color industrial area array camera

IMX178 photosensitive chip/59fps frame rate/USB 3.0 interface/6MP resolution (MP)/1/1.8-inch chip size

The Basler acA3088-57uc USB 3.0 camera is equipped with Sony IMX178 CMOS chip, with a frame rate of 59fps and a resolution of 6.4 million pixels.

AcA3088-57uc original German Basler 6.4 megapixel 1/1.8 inch Sony IMX178 CMOS chip roller shutter shutter 59fps frame rate USB 3.0 interface color industrial area array camera General information:

manufacturerBasler

Project Number107403

Product Seriesace U

product lineace U

Camera seriesBasler ace

Camera categoryarea scan camera

warranty period36 months

AcA3088-57uc original German Basler 6.4 megapixel 1/1.8 inch Sony IMX178 CMOS chip roller shutter shutter 59fps frame rate USB 3.0 interface color industrial area array camera detailed technical parameters:

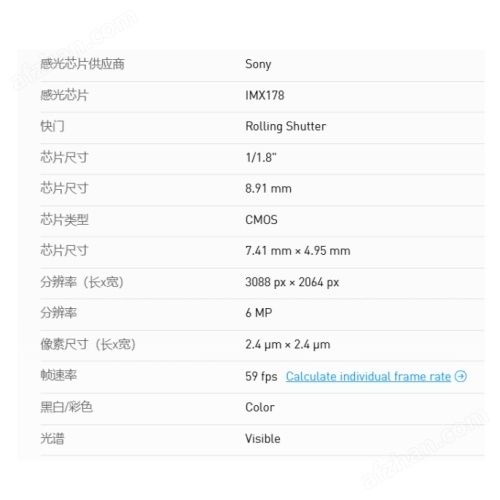

photosensitive chip

Photosensitive chip supplierSony

photosensitive chipIMX178

shutterRolling Shutter

chip size1/1.8 inch

chip size8.91mm

Chip typeCMOS

chip size7.41mm×4.95mm

Resolution (length x width)3088px × 2064px

resolution6MP

Pixel size (length x width)2.4μm×2.4μm

frame rate59fps Calculate individual frame rate

Black and white/colorColor

spectrumVisible

Camera Data

interfaceUSB 3.0

Image Data InterfaceUSB 3.0, nominal max. 5 Gbit/s (SuperSpeed)

Pixel depth

10bits

12bits

Exposure controlprogrammable via the camera API

digital input1

power supplyVia USB 3.0 interface

Power requirements (typical values)3W

design

Shell typeBox

Shell dimensions (length x width x height)29.3mmx29mmx29mm

weight80g

Lens interfaceC-mount

Operating temperature0 °C - 50 °C

manufacturer

Basler

meet the standard

CE (incl. RoHS)

EAC

FCC

GenICam

IP30

KC

RoHS

UKCA

UL

USB3 Vision

acA3088-57ucBasler 6.4 million 1/1.8 inch roller shutter USB 3.0 color cameraSony IMX178 CMOS chip roller shutter shutter with a frame rate of 59fps, USB 3.0 interface, color industrial array camera chip size of 7.41mm × 4.95mm, resolution (length x width) of 3088px × 2064px, pixel size (length x width) of 2.4 μ m × 2.4 μ m, frame rate of 59fps, calculate individual frame rate, power supply via USB 3.0 interface, power requirements (typical value), 3W weight, 80g lens, C interface acA3088-57uc
