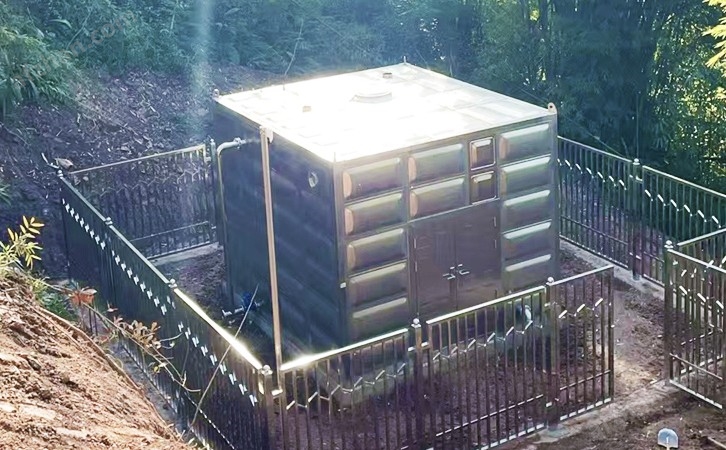

Intelligent pressurized water supply integrated pump room

With the advancement of urban-rural integration, many rural and remote areas have been supplied with tap water, which cannot be separated from itIntegrated pump roomPressurized water supply,Intelligent pressurized water supply integrated pump roomUnlike traditional civil pump rooms, the house body, water pump, control system, pipeline, disinfection device, and pressure stabilizing device are integrated to achieve the transportation and pressurization of tap water, providing a guarantee for residents' water use.

Core components and advantages of the product:

1Multi stage centrifugal pump set

The selection of water pumps for integrated smart water supply pump rooms is often based on parameters such as flow rate and head of the on-site working conditions. Multi stage centrifugal pumps and household variable frequency water pumps are often chosen. For those with high noise requirements, pipeline pumps can be selected, and the water pumps are often equipped with pressure sensors, which can achieve0.01MPAPrecision adjustment and precise control of water source pressure are commonly used in the number of water pumps, with two in use and one backup or three in use and one backup. For working conditions with low flow rates on site, a one in use and one backup configuration can be selected for pressurized water supply. The water pumps can rotate and operate with variable frequency through a set algorithm, extending the service life of the equipment and achieving energy conservation.

2Voltage stabilization compensation device

The bladder type pressure tank installed on the water pump unit, together with the stabilizing pump, forms a buffering system to reduce the water hammer pressure caused by the tap water pipeline network, reduce the frequency of water pump start stop, and make the user's water use more stable.

3Disinfection device

As tap water is the water source we need to enter, it must pass the water quality safety standards. The pump room is equipped with ultraviolet disinfectors and water quality testing equipment, which can sterilize and disinfect the water source in the pump room. The treated water source will undergo water quality testing and be transported to residents' homes after passing the test. The pump room is connected to an online monitoring device, and the water quality and operation can be reported as data and transmitted to the property control center.

4control system

Installed in the pump roomPLCThe touch screen control system can receive real-time operation status in the pump room and complete pressurized water supply according to pre-set programming instructionsPLCThe touch screen adopts Siemens brand, the low-voltage electrical adopts Schneider, and the frequency converter adoptsABBThe water supply system is composed of a pump and a frequency converter to ensure stable water supply.

5Building material and composition

The house often adopts304Stainless steel material is often used together with water tanks to form an integrated water supply pump room. The material of the room can be replaced with carbon steel or corrugated board materials according to the requirements of the design institute and construction party, with a complete range of types. The entire house is composed of four floors, namely304Composed of stainless steel exterior wall panels, intermediate fire-resistant insulation cotton, waterproof tin foil, and soundproof interior wall panels, it can ensure low noise, stable and non-conductive interior and exterior, fire resistance, waterproofing, and more.
