Manufacturer of life detectors

　　Manufacturer of life detectorsIn search and rescue operations, precise positioning of trapped individuals is the key to successful rescue. Fengtu Technology's life detector innovatively adopts audio and video dual dimensional detection technology, bringing new breakthroughs to search and rescue work. The audio detection module of this detector can sensitively capture the faint sounds emitted by trapped personnel, whether it is distress calls, knocking sounds, or subtle breathing sounds, which can be accurately identified and transmitted to the search and rescue personnel equipment. The video detection module can penetrate into complex environments such as ruins and transmit real-time internal images, allowing search and rescue personnel to intuitively understand the location and surrounding conditions of trapped individuals.

1Manufacturer of life detectors

1. The video life detector can search for victims under collapsed buildings and narrow spaces. It can provide information about victims under the ruins to search and rescue personnel through high-definition video and audio signals. *

2、 Technical requirements

1. Main function: The video life detector is a special tool used to search for victims under collapsed buildings and in narrow spaces. Information on victims under the rubble can be provided to search and rescue personnel through high-definition video and audio signals.

2. Large 10 inch full-color main screen, size ≤ 300 * 190 * 20mm, high-precision image can be enlarged at least 8 times; It is also equipped with a sun visor for easy viewing in strong sunlight. The main unit weighs ≤ 1kg (including battery, excluding connecting wires) and can be operated with one hand; The menu keys are easy to recognize and operate; ▲

3. Display tablet monitoring host function: capable of recording and taking photos, 8x digital zoom in/out function, files stored on SD card, memory ≥ 256GB; mirror setting function can flip the display screen photos up, down, left, right within 360 °; There is a positioning marker function, which allows users to input location markers and other information into photos through the display screen for easy browsing, searching, and management

4. Rechargeable battery: working time ≥ 8h.

5. Electric audio and video camera: diameter ≤ 40MM, ≥ 1080P full HD electric rotating probe. The high-definition video probe can rotate continuously 360 °, flip 270 °, have two-way voice intercom, and have at least 12 built-in white lights. ▲

6. Waterproof video camera: diameter ≤ 35mm, equipped with 12 fill lights, protection level IP68. The camera probe can be connected to a carbon fiber telescopic rod through an infinitely adjustable direction hose for detection, or can be detected through the equipped underwater extension cable.

7. Infrared thermal imaging camera: Equipped with at least 8 white LED lights, resolution of 384x288, wavelength range of 8-14um. ▲

8. Waterproof video camera: Image resolution 4000 * 3000, waterproof rating IP68. ▲

9. It is necessary to configure an independent sound pickup module (which can be flexibly combined and disassembled with video probes at the rescue site) and can be used for two-way intercom; Noise cancelling headphones (with microphone) for clear communication with survivors.

10. Equipped with carbon fiber telescopic rods no less than 5m long, which can be extended and retracted between 1.25m-5m. Configure several 20 meter waterproof connection cables.

11. The protection level of the entire equipment is IP66.

12. Working temperature: -20 ℃ to+60 ℃; 2H

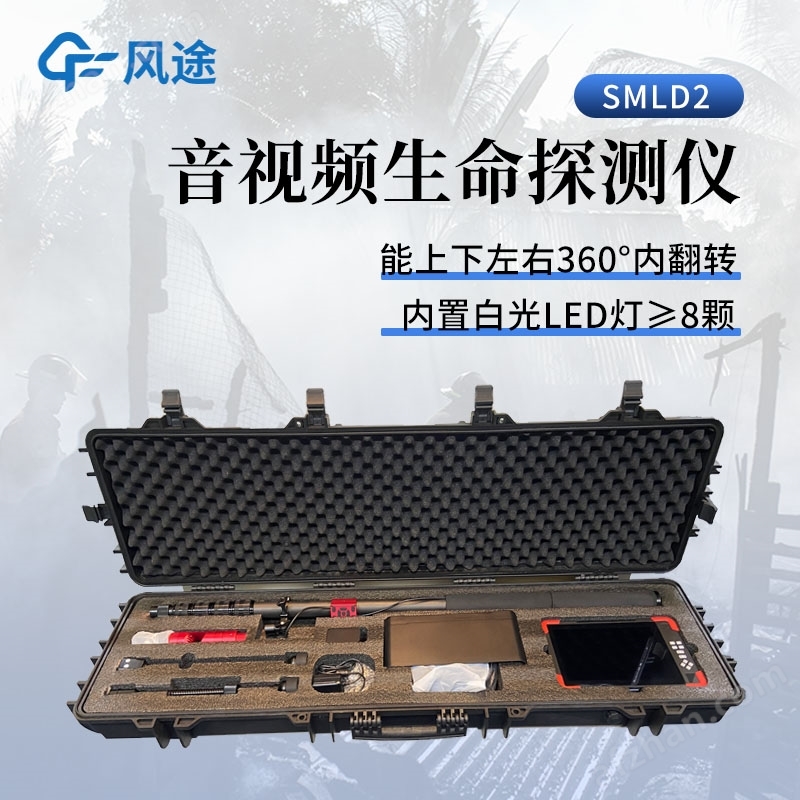

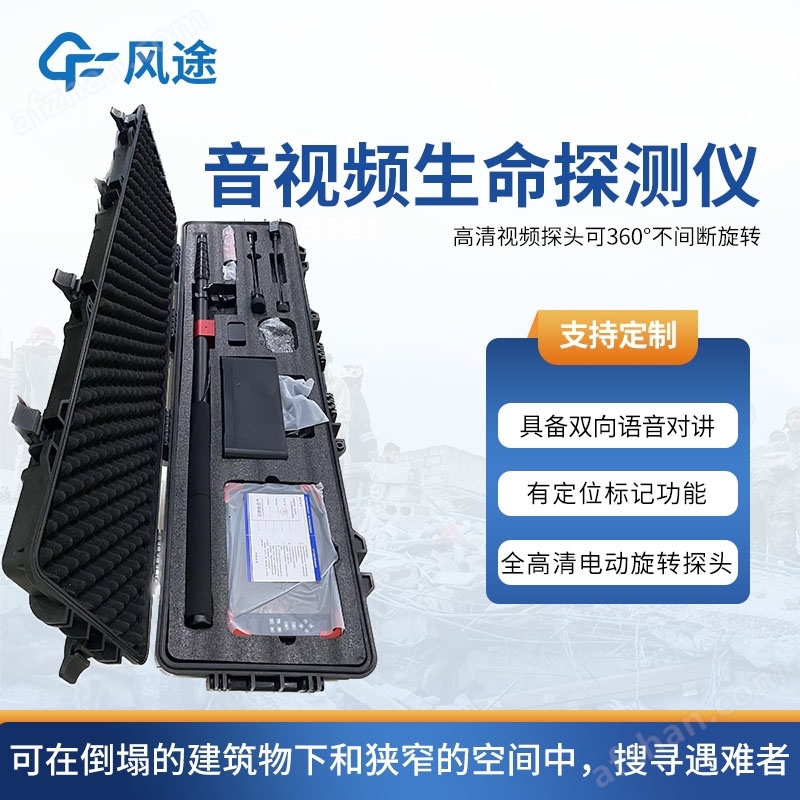

13. The complete configuration includes: 1 protective safety box, 1 rotating color audio and video probe, 1 infrared thermal imaging probe, 1 waterproof video probe, 1 5-meter carbon fiber telescopic rod, 1 10 inch color display, 20 meter connecting cable, and 1 set of intercom headphones and microphones. Other requirements include providing a Chinese user manual

3、 Other requirements

1. Provide national or third-party testing reports (with CMA or CNAS markings) during bidding, which reflect the technical indicators marked with "▲" above.
