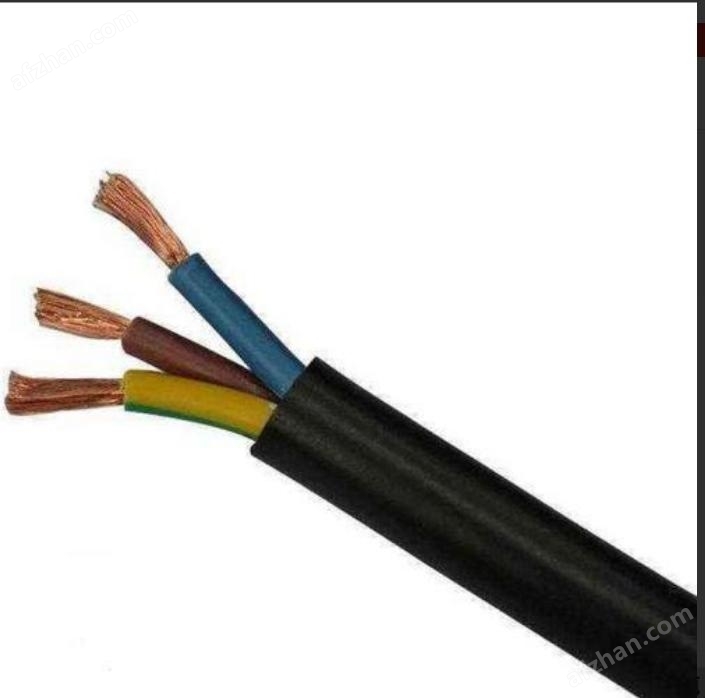

Power cable ZR-RVV 3 * 10 ZA-RVV

Power cable ZR-RVV 3 * 10 ZA-RVV

RVVPseriesshielded cable

RVVPCopper core PVC insulated shielded PVC sheathed flexible cable, rated voltage300V/300VThe number of cores is from2Core to24The cores are separated according to national standards, and two or more cores are twisted into cables. The outer layer is twisted in the right direction, and the soft round oxygen free copper wire or tin plated oxygen free copper wire is shielded. It is widely used in the control and installation of instruments, meters, building intercoms, and monitoring. Execution standard:JB8734.5-1998Product quantity: Long term large supply, packaging instructions200rice/Volume;500rice/Number of oxygen free copper cores made of wire core material1～24Core sheath materialPVC/PEwire outer diameter26（mm）Nominal cross-section0.12～2.5（mm2）Signal control for instruments, meters, building intercoms, monitoring and surveillance systems, etc

Suitable for signal transmission and detection instruments, meters, and other connections in distributed systems, electronic computer systems, and automation systems of industrial and mining enterprises such as power generation, metallurgy, and petrochemicals, using multi pair shielded cables

Shielded twisted pair cable RVVP RVSP

Professional production and research and development of urban communication cables, telephone cables, large logarithmic communication cables, computer cables, and power cords for communication equipment; Railway signal cables, with complete certificates and reliable quality!!

This product is suitable for communication bureaus(stand)Flame retardant flexible cables used in power transmission and distribution systems such as high-rise buildings.
Product standard:YD/T1173-2001
Product Model:ZA-RVV（ZRRVV ZRVVR RVVZ）Flame retardant flexible cable for communication power supply
ZA-RVV22（ZRRVV22 ZRVVR22 RVVZ22）Flame retardant steel tape armored flexible cable for communication power supply
This product is suitable for overhead, pipeline, indoor cable trench, and underground direct burial.
flame retardant performance
Under the specified test conditions, when the sample is burned and the test source is removed, the spread of the flame is only within a limited range, and the residual flame or burn can extinguish on its own within a limited time.
rated voltage
The rated voltage is the reference voltage used for cable design and electrical performance testing.
Used for rated voltageU0TheUExpressed in units ofV.
U0--Ren Yuan Conductor and'land'(The metal protective layer or surrounding medium of the cable)The effective value of the voltage between them.
U--The effective voltage between any two conductors in a multi-core or single core cable system,
When used in communication systems, the rated voltage of the cable should be at least equal to the nominal voltage of the cable system being used. This condition applies to bothU0andUValue.
When used in a DC system, the nominal voltage of the system should not exceed the rated voltage of the cable1．5Twice.
Note: The operating voltage of the system is allowed to exceed the nominal voltage of the system for a long time10%If the rated voltage of the cable is at least equal to the nominal voltage of the system, the cable may operate above its rated voltage voltage10%Used under the working voltage.
Usage characteristics
1 Rated working voltage of cable:450F／50V、600／1000V.
2 Long term operating temperature of cable conductors:70℃.
3 The ambient temperature during cable laying should not be lower than0℃.
4 Minimum bending radius: Non armored cable: Flame retardant type refers to the outer diameter of the cable6Armored cable: refers to the outer diameter of the cable20Twice.

Main products of the company: power cables control cable computer cable cable wire We specialize in the production and sales of wires and cables.Our products are of high quality and affordable,a wide variety,There are various types of wires and cables available,Delivery is available for domestic orders.We will achieve your satisfaction with our services.

HYATypeHYATTypeHYACType andHYA53typeHYAT53Type cable is a telephone cable designed for telephone exchange areas and trunk lines,HYATheHYATTheHYAPandHYVPMainly used for pipeline laying, it can also be used for overhead, but requires hanging wires;HYACOnly applicable for overhead use, no need for hanging wires or hooks;HYA53TheHYPA53TheHYPAT53The type cable improves the mechanical strength and corrosion resistance of the cable, and can be laid in any way, making it more suitable for direct burial in rocky areas. The operating temperature is-30degree~60Degree.

RS485communication cable|RS-485communication cable
standard2line pairRS-485Communication cable.

Product Specification: Characteristic Impedance120Ohm, the conductor is2line pair4Core（2x2x24AWG）Stranded tinned copper wire with multiple strands,PEInsulation sheath; Aluminum foil is specially used for complex industrial noise environments/Polyester composite tape100%Shielding rate+Tin plated copper braided mesh90%The shielding rate is double shielded and comes with independent shieldingTCGrounding conductor, industrial grayPVCOuter sheath, compliant withUL AWM 2919Document specifications.

9842The type of communication cable is strictly in accordance withRS-485Standard products designed and produced according to communication protocol specifications, Not only Rockwell（AB）AutomationDH-485The designated model of the control network is also standard2line pairCANBus cable.

Communication cable for mineMHYV|Communication cable for mineMHYAV|Communication cable for mineMHYVR|Mining shielded communication cableMHYVRP|Mining shielded communication cableMHYVP|Communication cable for mineMHYA32|Communication cable for mineMHYV32
Communication cable for mine|Mining communication cable|Mining telephone cable|Mining telephone line|Communication cables for coal mines|Mining explosion-proof telephone cable
