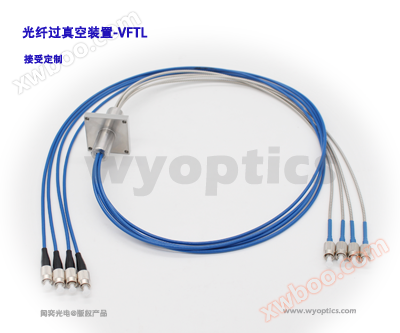

VFTL | Fiber Optic Vacuum Feedthrough

VFTL fiber is fed through through vacuum using a tail fiber method, which has lower loss efficiency and is more suitable for special applications such as energy transmission and polarizing fibers. The vacuum degree can reach a maximum of 10 ^ -7 mbar; Can be used at temperatures up to 150 ° C, with a wide wavelength range (please refer to the Wenyi Optoelectronics quartz fiber chart), and a core diameter of 9um~1000um; Customize according to customer needs.

This product can use various CF KF ISO series flanges and can also be customized according to customer requirements.

Both ends of the fiber optic connector are conventional SMA905, FC, etc., and can also be customized according to customer requirements.

It is compatible with vacuum multimode fiber optic jumpers produced by Wenyi Optoelectronics, allowing users to couple light from the external environment into a vacuum chamber through fiber optic cables. When using fiber optic jumpers in a vacuum environment, please ensure that the cable is compatible with vacuum (recommended to be paired with Wenyi Optoelectronics vacuum fiber optic).

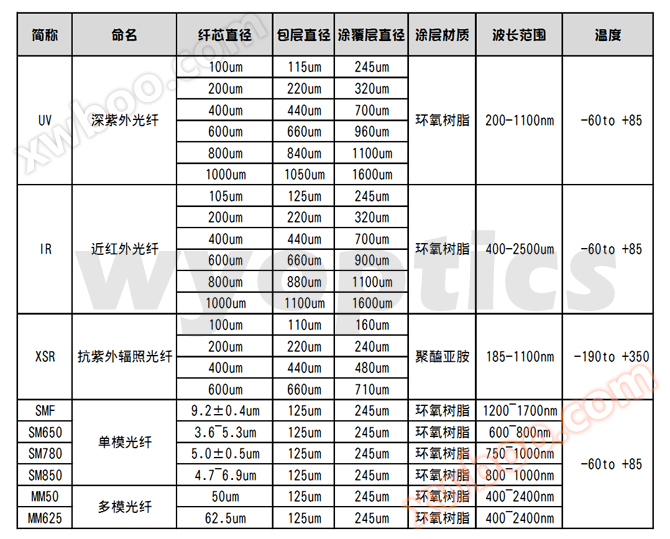

The fiber core can be selected from the following chart:

Optional accessories

The VFT fiber optic vacuum device can be customized with matching vacuum flanges, such as KF16, KF25, KF40, etc
