WMS-1037 Trinocular Biological Microscope

Product Details

A simple and comfortable operating system, clear and bright microscopic images, and diverse component configurations inspire students' infinite imagination of the microscopic life world. It meets the needs of teaching experiments and routine research work in higher education institutions.

Consultation Hotline/

High eye point, large field of view, flat field eyepiece
The WMS-1037 biological microscope is widely used in teaching, with a standard configuration of a high eye point, large field of view flat field eyepiece PL10X/18mm. Other magnifications and fields of view can also be selected, and pointers, micrometers, and adjustable visual acuity functions can be added according to different needs.

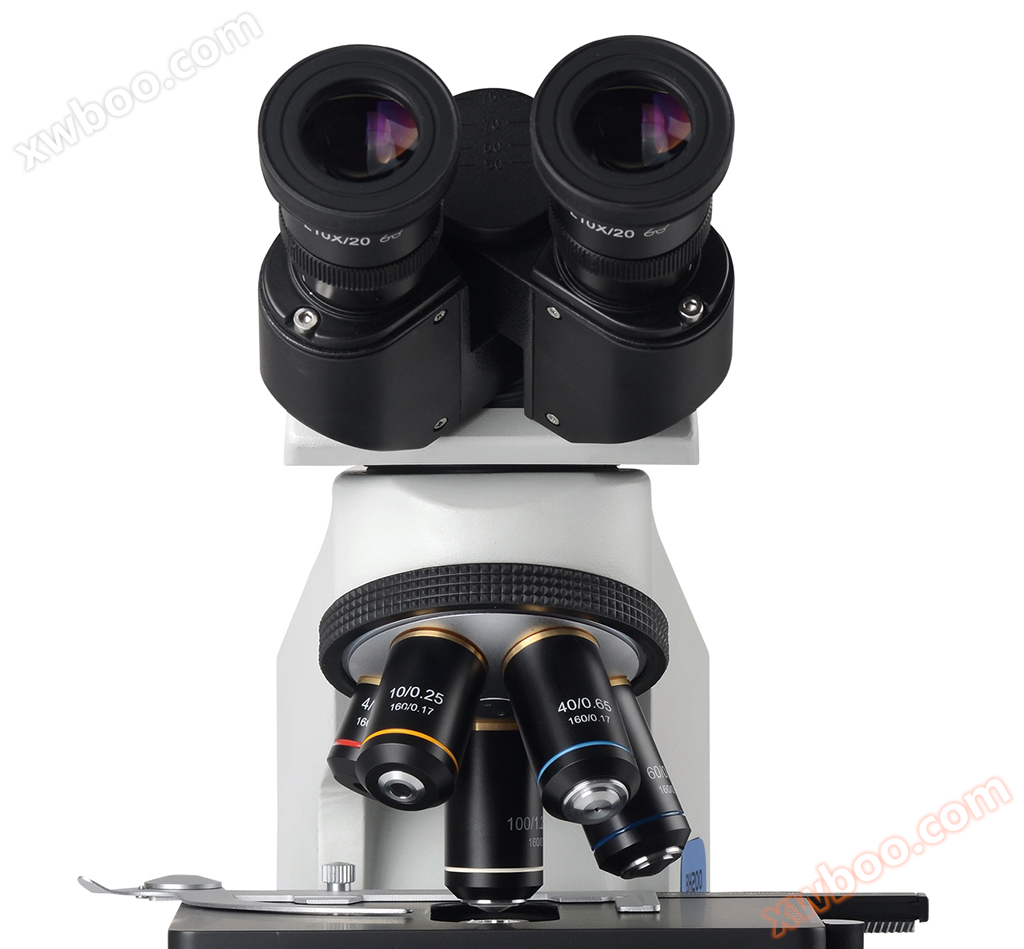

WMS-1037三目生物显微镜(图1)

Compact and innovative structural design
A flat and stable rectangular base, with a two-piece detachable mirror arm and base. When observed at high magnification, the image plane is free of shaking, ensuring stable and clear microscopic images. Multiple lighting systems are available for selection.

WMS-1037三目生物显微镜(图2)

Extended features
In addition to conventional organisms, it can also be extended to various types of microscopes such as fluorescence, digital, metallographic, and polarized microscopes, and can achieve observation methods such as bright field, dark field, fluorescence, simple polarization, and phase contrast.

WMS-1037三目生物显微镜(图3)

optical system	Infinite color difference correction system
observation tube	30Tilted, hinged three eyed observation head,360° Rotation,Pupil distance adjustment range:54mm-75mmBilateral visual acuity adjustable
eyepiece	High eye point, large field of view, flat field eyepiecePL10X/18mm
objective lens	Infinite flat field achromatic objective lens（2XThe4XThe10XThe20XThe40XThe60XThe100X）
objective lens	Infinite flat field phase contrast objective lens（10XThe20XThe40XThe100X）
converter	Internal positioning four hole converter
focusing mechanism	Low hand position coarse fine adjustment coaxial focusing mechanism. Rough adjustment of travel28mmFine tuning accuracy0.002mmEquipped with an adjustable elastic device to prevent slipping and an upper limit device to prevent damaging the slices. Adjustable center bracket for spotlight
stage	150mm×140mmDouble layered composite mechanical mobile platform, double slice (glass slide) clamp, movement range:76mm×50mm, accuracy0.1mm
condenser	N.A.1.25Kola lighting spotlight group (with plug-in phase contrast and dark field accessory interface), preset center, gear rack lifting (fixed Kola lighting)
lighting system	adaptive100V-240VWide voltage, integrated switch power supply with continuously adjustable brightness design, making the light bulb less prone to damage, preset center6V20WHalogen lamp, fixed Kola lighting
Photography and videography accessories	0.35XThe0.5XThe0.65XThe1X，CType interface, adjustable focus
condenser	N.A.1.25Kola lighting spotlight group (with plug-in phase contrast and dark field accessory interface), preset center, gear rack lifting (fixed Kola lighting)
