WindMaster Pro 3D Anemometer
NegotiableUpdate on 03/06
- Model
- Nature of the Manufacturer
- Producers
- Product Category
- Place of Origin
Overview
Gill WindMaster Pro is an accurate ultrasonic anemometer that provides three-dimensional wind speed measurement. The instrument can measure wind speed and direction data within the range of 0-65m/s, and can provide sound temperature, sound speed, and U, The wind speed data on the V&W axis has a standard output frequency of 32Hz. Excellent design improvements have improved vertical resolution and sound velocity accuracy, reducing errors caused by wind loads. Every WindMaster Pro can be calibrated using Gill wind tunnel measurements for optimal performance. Optional analog input/output and
Product Details
Gill WindMaster Pro is an accurate ultrasonic anemometer that provides three-dimensional wind speed measurement. The instrument can measure wind speed and direction data within the range of 0-65m/s, and can provide sound temperature, sound speed, and U, The wind speed data on the V&W axis has a standard output frequency of 32Hz. Excellent design improvements have improved vertical resolution and sound velocity accuracy, reducing errors caused by wind loads. Every WindMaster Pro can be calibrated using Gill wind tunnel measurements to achieve excellent performance. Optional analog input/output and PRT input can provide 14 bit resolution.
This anemometer adopts a stainless steel external structure, which is particularly suitable for applications that require precise measurement of three-dimensional wind force at high wind speeds.
Product features:
Accurate 3D anemometer
32Hz output frequency
Wind speed range of 0-65m/s
Wind direction range of 0-359 °
• U, V. W-axis output
• Sound and temperature output
• Stainless steel material
• Optional customized calibration
Application areas:
• Meteorological system
• Flux system
• Building safety
• Wind profile
• Marine research
• Wind turbine location survey

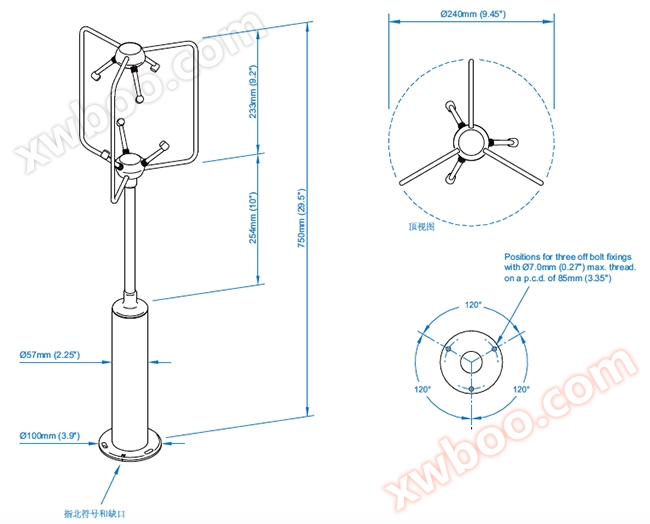

Dimensional drawing:
