flame detector

GS9208 seriesflame detectorApplicable product model:

GS 9208/IR2 flame detector

GS 9208/UV flame detector

GS 9208/UV/IR2 flame detector

GS9208 seriesflame detectorKey Features:

1. Built in high-performance microprocessor computing chip

2. Advanced intelligent algorithms and flame hazard criteria

3. Achieve the optimal combination of flame detection and false alarm immunity performance

4. Built in advanced and reliable system fault self diagnosis function

5. Rapid flame response

6. Choose a solar blind ultraviolet sensor

7. 2-channel IR or UV sensor+2-channel IR sensor

8. Multiple signal output methods to adapt to the signal interface requirements of different system hosts

9. Three level adjustable sensitivity

10. Extended monitoring perspective of 120 °

11. High sensitivity, long detection range, wide viewing angle, large protection area, and high cost-effectiveness

12. Dustproof, waterproof, and explosion-proof products

13. Easy to install and use, low maintenance cost

Suitable occasions

Special Note:

1. GS9208

1. GS9208flame detectorThe series of products are divided into two categories: ordinary applications and explosion-proof applications

Product. Explosion proof products are labeled with the explosion-proof grade parameters on the outer shell of the product. No explosion-proof label indicated

Grade products can only be used in ordinary situations without explosion-proof requirements and cannot be used in places with explosion-proof requirements,

Places with explosion-proof requirements must use explosion-proof products with explosion-proof grade markings.

flame detectorThe series of products are divided into two categories: ordinary applications and explosion-proof applications

Product. Explosion proof products are labeled with the explosion-proof grade parameters on the outer shell of the product. No explosion-proof label indicated

Grade products can only be used in ordinary situations without explosion-proof requirements and cannot be used in places with explosion-proof requirements,

Places with explosion-proof requirements must use explosion-proof products with explosion-proof grade markings.

2. GS9208

2. GS9208flame detectorThe working temperature range of standard products is -20 ° C to 50 ° C, exceeding this range

The use of temperature range should choose temperature enhanced products, and the working temperature range of enhanced products is -40 ° C -70 ° C.

Users who require explosion-proof products and temperature enhanced products must clearly indicate them on the product purchase order.

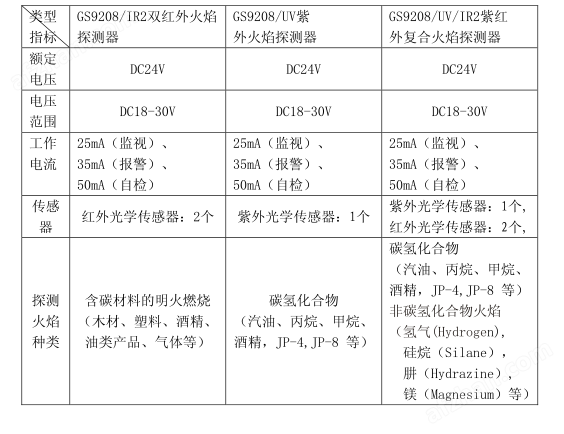

GS9208 seriesflame detectorTechnical Specifications
