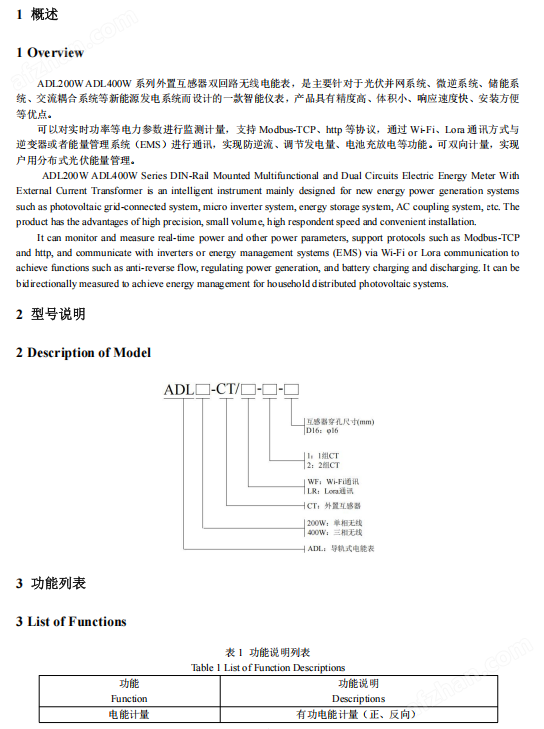

ADL200W-CT/WF inverter photovoltaic anti backflow meter is an intelligent instrument designed mainly for new energy generation systems such as photovoltaic grid connected systems, micro reverse systems, energy storage systems, and AC coupling systems. The product has the advantages of high accuracy, small size, and easy installation. It has the ability to sample, measure, and monitor power parameters, communicate with inverters or energy management systems (EMS), and achieve functions such as preventing backflow, adjusting power generation, and battery charging and discharging based on real-time power and accumulated energy. It can measure in both directions and achieve distributed photovoltaic energy management for household use.

Product Details

ADL200W-CT/WF matching inverter photovoltaic anti backflow meterIt is an intelligent instrument mainly designed for new energy generation systems such as photovoltaic grid connected systems, micro inverter systems, energy storage systems, and AC coupling systems. The product has the advantages of high accuracy, small size, and easy installation. It has the ability to sample, measure, and monitor power parameters, communicate with inverters or energy management systems (EMS), and achieve functions such as preventing backflow, adjusting power generation, and battery charging and discharging based on real-time power and accumulated energy. It can measure in both directions and achieve distributed photovoltaic energy management for household use.

ADL200W-CT/WF matching inverter photovoltaic anti backflow meter main functions:

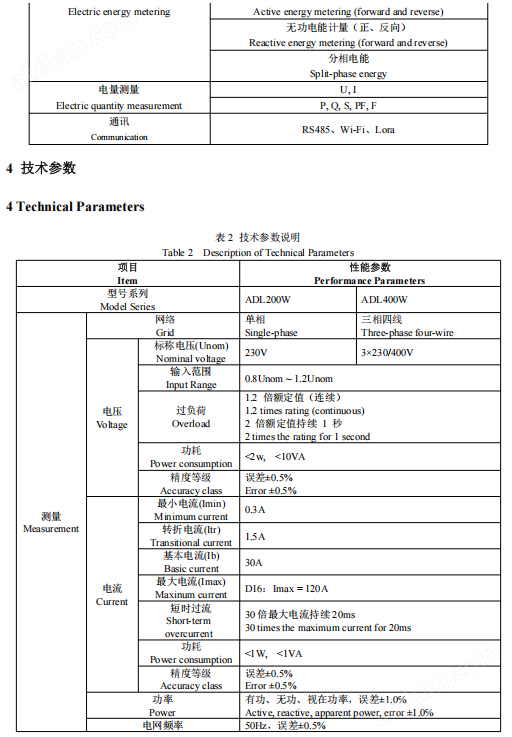

Accurate measurement and monitoring: Measure full power parameters such as voltage and current (with an error of ± 0.5% and a refresh rate of ≤ 100ms), support forward and reverse active/reactive energy measurement, and clearly record the photovoltaic generation, usage, storage, and surplus electricity grid connected.

Anti backflow regulation: The core function is to quickly send a signal to the inverter to reduce power when the trend of excess backflow in photovoltaics is detected, in order to avoid power backflow into the grid, comply with grid connection policies, and protect equipment safety.

Intelligent communication management: equipped with RS485 interface (some support WiFi), compatible with Modbus RTU protocol, can connect to EMS system, supports remote data query and automated scheduling (such as peak electricity storage) from mobile phones/computers.

Fault and wiring diagnosis: Real time monitoring of abnormalities and alarms, automatic identification of phase sequence misconnection and phase loss issues, LCD screen displaying error codes, avoiding measurement deviations.

Convenient installation and programming: 18mm standard rail installation, RJ11 plug and play transformer, voltage terminal fixed without tools, supports button settings for communication, transformation ratio and other parameters.
