Ankerui Chain Supermarket Free Debugging Energy IoT Cloud Platform

NegotiableUpdate on 01/12

Model

Nature of the Manufacturer: Producers

Product Category

Place of Origin

Online Consult

Overview

Ankerui Chain Supermarket Free Debugging Energy IoT Cloud Platform Comprehensive Data Collection: Ankerui Free Debugging Energy Data Cloud Platform can real-time collect various key data such as energy usage, power quality, equipment operation status, etc., helping users comprehensively understand energy consumption and equipment working conditions. $r $n Intelligent Analysis Algorithm: With built-in intelligent analysis algorithms, Acrel EIOT can quickly and accurately analyze collected data, identify potential energy waste and equipment failure issues without debugging.

Product Details

Abstract:As a large retail enterprise, chain supermarkets are gradually increasing their emphasis on energy management. Many chain supermarkets have realized that the proportion of energy costs in total operating costs cannot be ignored, and have therefore begun to develop and implement a series of energy management strategies. These strategies include but are not limited to the procurement of energy-saving equipment, the development of energy usage standards, and the training of employees' energy-saving awareness.

Keywords:Chain stores, Internet of Things (IoT), energy conservation and consumption reduction, intelligence, and sustainable development

0.Introduction

In the modern business environment, chain supermarkets are facing increasingly fierce market competition and rapidly changing consumer demands. In order to improve efficiency, reduce costs, enhance service quality and customer satisfaction, more and more supermarkets are choosing digital management as their core strategy. Ankerui EIOT, with its advanced technology and flexible applications, is helping chain supermarkets achieve new breakthroughs in digital management.

1. Current situation of energy management in chain supermarkets

The energy management of chain supermarkets faces the following challenges:

（1）Energy consumption is dispersed: stores are widely distributed, making it difficult to centrally manage energy data.

（2）Outdated management methods: relying on manual meter reading and regulation, with low efficiency.

（3）High energy consumption cost: Lighting, air conditioning and other equipment consume a large proportion of energy and lack refined control.

（4）Insufficient data utilization: Insufficient mining of energy data, making it difficult to support energy-saving decisions

The necessity of digital management

With the development of technology, traditional management models are no longer able to meet the needs of modern chain supermarkets. Digital management, through information technology, can monitor various businesses in real time, optimize processes, improve response speed, and help supermarkets stand undefeated in competition.

2.1 Improving operational efficiency

Through digital technology, supermarkets are able to manage inventory in real-time, avoiding situations of product shortage or excess. With the help of data analysis, managers can intuitively understand which types of products have good sales performance and which ones are unsold, so as to adjust procurement strategies and avoid wasting funds.

2.2 Improving Customer Experience

Digital management has also significantly improved customer experience. For example, through technological means such as mobile payments, electronic membership cards, and personalized recommendations, it can make shopping more convenient and enjoyable for consumers.

2.3 Enhancing Decision Support

Data driven decision-making has become a trend. The shelf life of fresh products is short, and understanding consumers' consumption habits can effectively reduce losses. By analyzing historical sales data, chain supermarkets can make reasonable predictions about future sales trends and carry out precise marketing.

3. Core functions of Ankerui EIOT solution

3.1Real time monitoring and data analysis

The platform supports real-time collection and monitoring of energy data such as electricity, water, and gas, and provides functions such as energy consumption trend analysis and month on month analysis to help supermarket managers comprehensively grasp energy usage.

安科瑞连锁超市免调试能源物联网云平台

3.2Intelligent lighting and air conditioning control

Through the intelligent lighting module, the brightness of the lights is automatically adjusted based on the store's opening and closing time, foot traffic, and natural lighting,Achieve the effect of energy conservation and consumption reduction.

安科瑞连锁超市免调试能源物联网云平台

The air conditioning system can be remotely controlled according to the ambient temperature to avoid excessive cooling or heating.

安科瑞连锁超市免调试能源物联网云平台

3.3Prepaid and Safe Electricity Management

Support prepaid mode, automatic power-off for overdue payments, avoiding energy waste.

安科瑞连锁超市免调试能源物联网云平台

At the same time, the platform can monitor electrical fire hazards (such as cable temperature and leakage current), issue timely warnings, and ensure electrical safety.

安科瑞连锁超市免调试能源物联网云平台

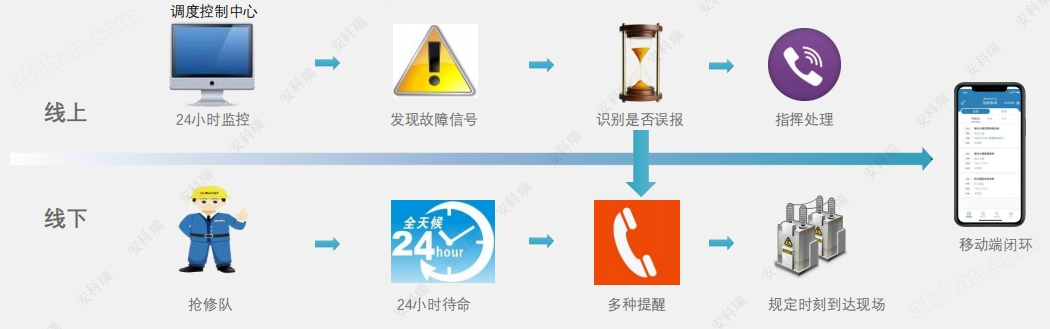

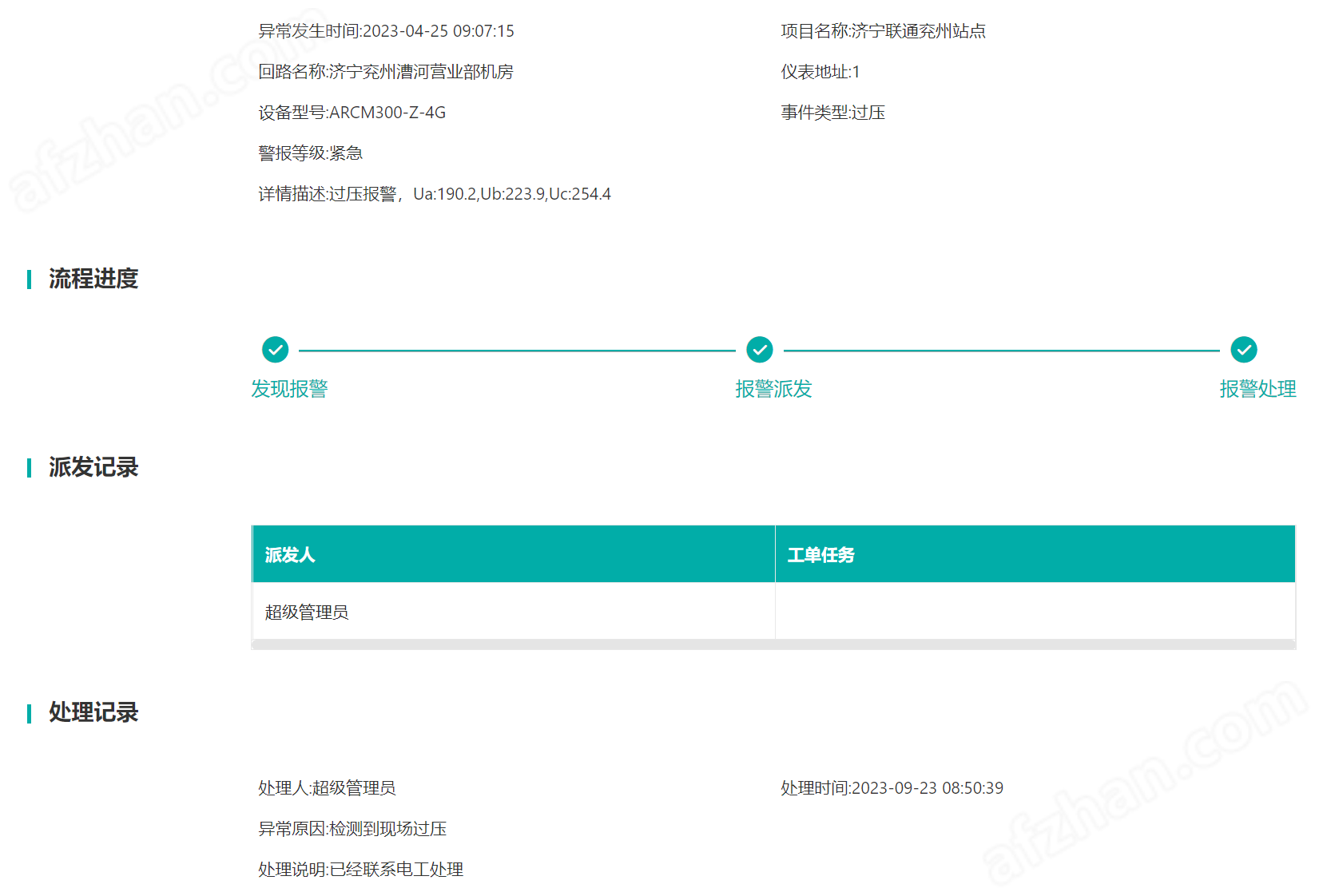

3.4Remote operation and alarm management

The platform can monitor the real-time operation status of equipment, and alert through SMS, APP push and other methods when abnormalities are found. It also supports remote dispatching and closed-loop processing, improving operation and maintenance efficiency

安科瑞连锁超市免调试能源物联网云平台

3.5 Hardware Selection

type	model	appearance	Product features

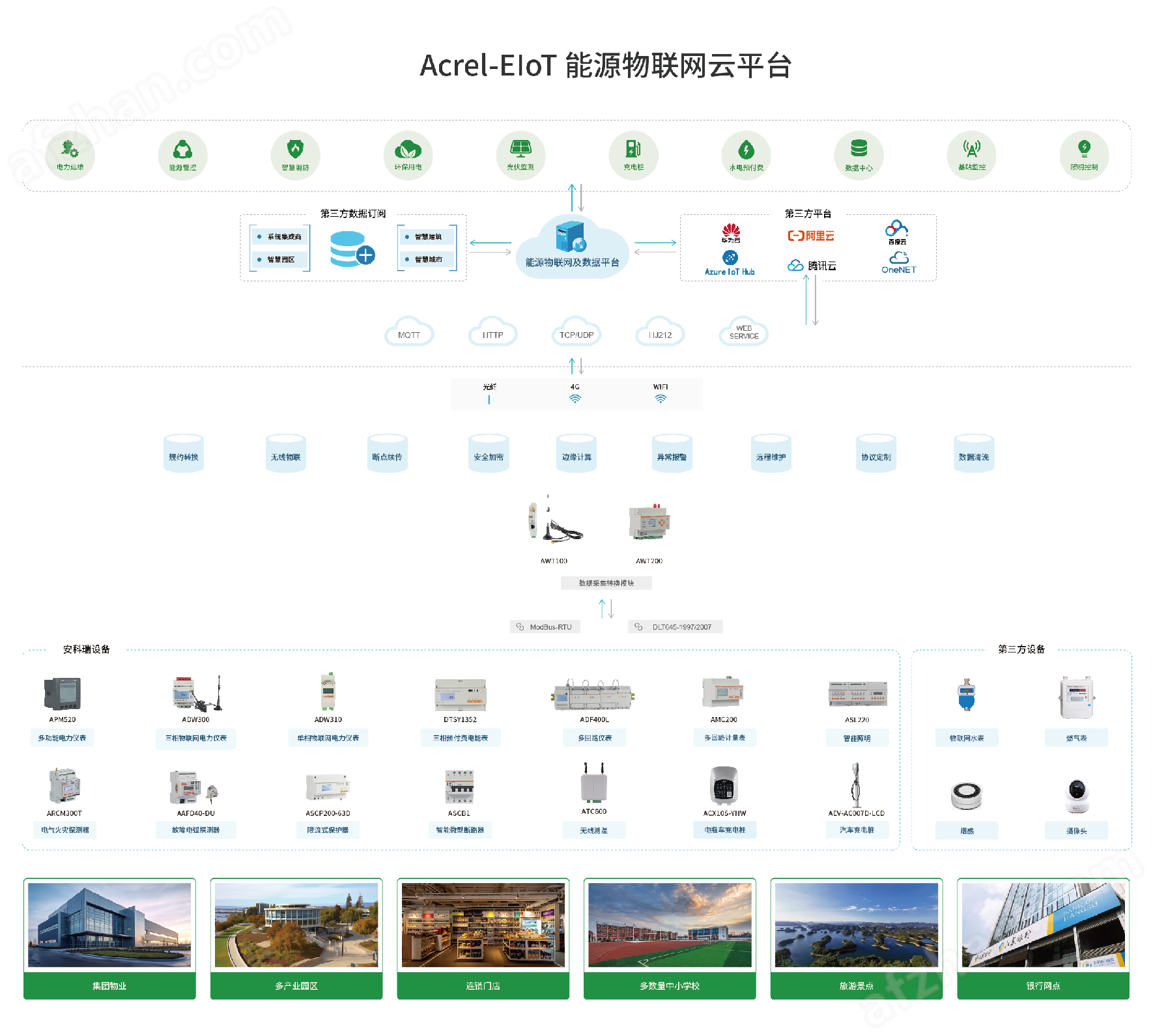

Energy IoT Cloud Platform	Acrel-EIOT		Provide functions such as data cockpit, electrical safety monitoring, power quality analysis, electricity management, prepaid management, charging pile management, intelligent lighting management, abnormal event alarm and recording, operation and maintenance management, and support multi platform, multi language, and multi terminal data access
Smart Gateway	AWT100-4G		1 downstream 485, upstream optional 4G, WIFI, network port
Smart Gateway	ANet-1E2S1-4G		Upstream: Ethernet, 4G Downstream: RS485
IoT electric meter	ARTU series		Expandable DIDO and multiple analog input/output units. Communication method: RS485 interface, Modbus protocol. scalable2G、Lora、LoRAWAN、NB-IoT、4G、 Ethernet
wireless temperature measurement	ARTM-Pn		It can monitor voltage, current, frequency, active power, reactive power, and electrical energy, and can receive temperatures from 60 wireless temperature sensors
wireless temperature measurement	ATC600		The ATC600 has two working modes: terminal (- C) and relay (- Z), which can be configured according to the project layout. Can receive temperatures from 240 wireless temperature sensors
Photovoltaic monitoring	AGF		Photovoltaic cell string open circuit alarm can be comprehensively judged in conjunction with string voltage; Equipped with 3-channel switch status monitoring, used to collect the output air contact status of DC circuit breakers, lightning arresters, etc; The current is connected through perforation, which is easy to install and has high safety; The measuring element adopts Hall sensor, isolated measurementHigh current 20A; voltage measurement function can measure bus voltageHigh DC 1500V
Power Monitoring	AEM96		Three phase power parameter measurement, phase angle of voltage and current, four quadrant energy metering, multiple rate*High demand, historical electricity statistics, switch quantity event records, historical extreme value records, analysis of 31st harmonic and total harmonic content, phase harmonics and fundamental electrical parameters (voltage, current, power), switch quantity, alarm output Communication method: RS485 interface, supports Modbus RTU protocol
	AEM72		Three phase power parameter measurement, phase angle of voltage and current, four quadrant energy metering, multiple rate*High demand, historical electricity statistics, switch quantity event records, historical extreme value records, analysis of 31st harmonic and total harmonic content, phase harmonics and fundamental electrical parameters (voltage, current, power), switch quantity, alarm output Communication method: RS485 interface, supports Modbus RTU protocol
	ACR series		All three-phase power parameters*High demand recording (ACR320EFL), time-sharing energy statistics and December energy statistics, date and time display, LCD display, RS485 communication, event recording. Communication methods: RS485, Prifibus DP, Ethernet
	APM series		Full power measurement，four-quadrant electric energy，Multiple rate electricity，Internal temperature measurement of the instrument，Total active power, total reactive power, total apparent energy pulse output, second pulse, etc. are optional.Real time demand for three-phase current, active power, reactive power, apparent power, and*Large demand (including timestamp).Current, line voltage, phase voltage, active power, reactive power, apparent power, power factor, frequency, total harmonic of current, and total harmonic of voltage for this month and last month (including timestamp)In Chinese, the active energy is at the level of 0.2 seconds. Communication methods: RS485, Prifibus DP, Ethernet
IoT electric meter	DDS		Active and reactive energy measurement, electrical parameter measurement: U, I, P, Q, S, PF, F, LCD display, RS485 communication, MODBUS-RTU and DL/T645 protocol
IoT electric meter	DDSD		Energy metering: Total energy metering (reverse counting forward), 3-month historical energy data frozen storage, electrical parameter measurement: U, I, P, Q, S, PF, F measurement, LCD display: 8-bit segmented LCD display, button programming: 3 buttons programmable to set password, communication address, baud rate, repetition rate, and communication protocol. Pulse output: L active power pulse output complex rate: 4 time zones, 2 time period tables, 14 daily time periods, 4 rate communication: RS485 interface, MODBUS-RTU, DL/T645-97, DL/T645-07 protocol, infrared communication
IoT electric meter	DTSD		Electricity metering: active energy metering (forward, reverse), reactive energy metering (forward, reverse), A, B, C phase separation positive active energy electrical parameter measurement: U, I, P, Q, S, PF, F harmonic measurement: 2-31st harmonic voltage and current LCD display: 8-bit segment LCD display, backlight display button programming: 4 buttons programmable communication, transformation ratio and other parameters pulse output: active pulse output, reactive pulse output, clock pulse output LED alarm: voltage loss, overvoltage alarm. Multiple rates and accompanying functions: active switch input, 3 switch output, support 4 time zones, 2 time period meters, 14 daily time periods, 4 rates*Large demand and occurrence time, historical frozen data from the previous 48 months and 90 days, date, time Communication: infrared communication, RS485 interface, supports Modbus and DL/T645 simultaneously. Temperature measurement: supports 3 external NTC temperature measurements
Internet of Things Electricitytable	ADL200		Measurement of single-phase electrical parameters U, I, P, Q, S, PF, F. Total energy measurement (reverse to forward), with 3-month historical energy data frozen and stored; 8-bit segmented LCD display; Active power pulse output; The accuracy of active power is level 1, and the accuracy of reactive power is level 2.
	ACR10R		Three phase current/voltage/frequency/power factor, active/reactive/apparent power, four quadrant energy metering,*Large demand, multi rate energy metering, total harmonic content, sub harmonic (2-63 times), event recording and alarm function. Electric energy accuracy level 0.5. Communication method: RS485 interface, supports Modbus RTU protocol
	ADL10-E		Active and reactive energy measurement, electrical parameter measurement: U, I, P, Q, S, PF, F, LCD display, RS485 communication, MODBUS-RTU and DL/T645 protocol
	ADL400		Measurement of three-phase electrical parameters U, I, P, Q, S, PF, F. Measurement of active and reactive electrical energy in both forward and reverse directions; A. B and C phase forward active energy metering; 2-31st harmonic voltage and current; 12 bit segmented LCD display, backlit display, power accuracy of 0.5s level.

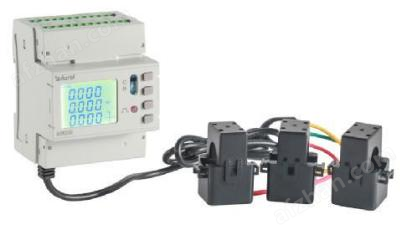

	ADW200		Measurement of 4-channel three-phase voltage, current, power, power factor, and frequency; Measurement of voltage current phase angle and voltage current imbalance; Measurement of 2-31st harmonic and total distortion of voltage and current; Record of extreme values of voltage, current, and power for the current month and the previous three months;*Large demand and historical demand records from the previous December; Event records, multiple rates, four quadrant energy and historical energy records; Support 12 switch inputs and 4 switch outputs; Support 12 temperature measurement channels and 4 residual current measurement channels; Active power accuracy level 1. Communication method: RS485 interface, supports Modbus RTU protocol
	ADW210		Measurement of 4-channel three-phase voltage, current, power, power factor, and frequency; Measurement of voltage current phase angle and voltage current imbalance; Measurement of 2-31st harmonic and total distortion of voltage and current; Record of extreme values of voltage, current, and power for the current month and the previous three months;*Large demand and historical demand records from the previous December; Event records, multiple rates, four quadrant energy and historical energy records; Support 12 switch inputs and 4 switch outputs; Support 12 temperature measurement channels and 4 residual current measurement channels; Active power accuracy level 1.

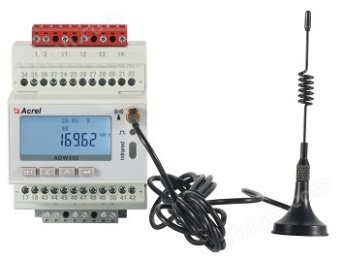

	ADW300-4G		Measurement of three-phase voltage, current, power, power factor, and frequency; Measurement of voltage current phase angle and voltage current imbalance; Measurement of 2-31st harmonic and total distortion of voltage and current; Record of extreme values of voltage, current, and power for the current month and the previous three months;*Large demand and historical demand records from the previous December; Event records, multiple rates, four quadrant energy and historical energy records; Supports 4-channel switch input and 2-channel switch output; Support 4-channel temperature measurement; Support 1-channel residual current measurement; Support local display and button settings; Active power accuracy level 1. Communication methods: Supports RS485 communication, Lora wireless communication, 4G communication; WIFI communication
prepaidelectricity meter	DDSY-4G		Measurement of single-phase electrical parameters U, I, P, Q, S, PF, F. Active energy metering (forward and reverse), A, B, and C phase separated positive active energy, supporting 4 time zones, 2 time period tables, 14 daily time periods, and 4 rates*Large demand and occurrence time, real-time demand, historical frozen data purchase records; 8-bit segmented LCD display, backlit display; Active power pulse output; Active power accuracy level 1, reactive power accuracy level 0.5s.
prepaidelectricity meter	DTSY-4G		Measurement of three-phase electrical parameters U, I, P, Q, S, PF, F. Active energy metering (forward and reverse), A, B, and C phase separated positive active energy, supporting 4 time zones, 2 time period tables, 14 daily time periods, and 4 rates*Large demand and occurrence time, real-time demand, historical frozen data purchase records; 8-bit segmented LCD display, backlit display; Active power pulse output; Active power accuracy level 1, reactive power accuracy level 0.5s.

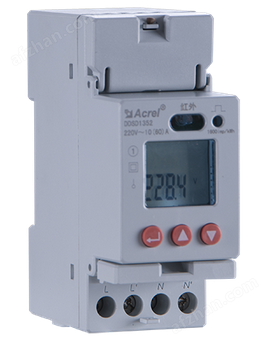

DC energy meter	DJSF1352		1. Accuracy: Level 1 or Level 0.5, with ± 12V voltage output for Hall sensor power supply 2. Measurement: Voltage, current, power, forward and reverse electrical energy, supporting dual channel metering.
Electrical safety	ARCM300-Z		Three phase (I, U, Kw, Kvar, Kwh, Kvar, Hz, cos Φ), apparent energy, four quadrant energy metering, single circuit residual current monitoring, 4-channel temperature monitoring, 2-channel relay output, 2 Road switch input, supporting power-off alarm upload
Electrical safety	AAFD-DU		Monitor fault arcs, leakage, and temperature Two passive dry contact (switch quantity) inputs Two passive normally open contacts (switch quantity) output

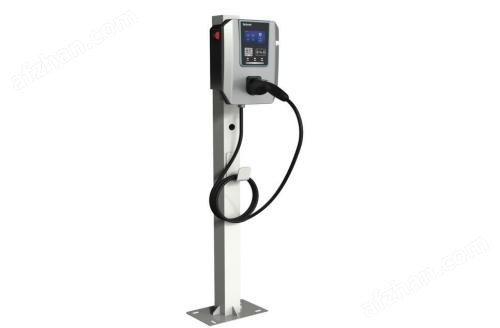

charging pile	ACX series		Full of self stop, power-off memory, short circuit protection, overload protection, no-load protection, fault circuit identification, remote upgrade, power identification, independent metering, and alarm reporting. Supports coin insertion, card swiping, QR code scanning, and free charging,
charging pile	AEV_AC007		Rated power of 7kW, single-phase three wire system, protection level IP65, equipped with lightning protection, overload protection, short circuit protection, leakage protection, intelligent monitoring, intelligent metering, remote upgrade, supporting card swiping, scanning, plug and play. Communication methods: 4G, Bluetooth Wifi
Smart Lighting	ASL200		Remote control output Two passive dry contact (switch quantity) inputs Two passive normally open contacts (switch quantity) output

4. Implementation effect and case analysis

（1）Energy conservation and consumption reduction: A certain chain supermarket achieves intelligent management of lighting and air conditioning through the EIOT platform, saving electricity expenses every month.

（2）Management efficiency improvement: Unified management of energy data for 6000 stores nationwide has been achieved, reducing manual meter reading and travel costs.

（3）Security guarantee: Through the electrical fire monitoring function, a supermarket successfully avoided multiple potential fire accidents.

5. Future prospects

With the continuous advancement of technology, digital management will become an inevitable trend in the development of chain supermarkets. Ankerui EIOT will continue to drive industry development through innovation and continuously introduce more advanced technologies and services. In the future, chain supermarkets will pay more attention to data integration and analysis, and connect the entire supply chain through big data and cloud computing to form an efficient and transparent operational ecosystem.

In the wave of digitization, supermarkets are no longer just a collection of goods, but an intelligent business environment driven by data and technology. Ankerui EIOT will work together with more and more chain supermarkets to meet the challenges and opportunities of the digital new era.

6. Conclusion

With the rapid development of Internet technology, digital management is no longer a multiple choice question, but a necessity for survival. Chain supermarkets will usher in new development opportunities with the help of Ankerui EIOT, improve management efficiency, and enhance customer satisfaction,*Finally stand out in the fiercely competitive market.
