Ankerui DJSF-RN-2 DC Charging Station Rail type Energy Meter

The Ankerui DJSF-RN-2 DC charging pile rail type energy meter is mainly designed for applications such as DC charging piles, telecommunications base stations, and solar photovoltaics. This series of instruments can measure voltage, current, power, and forward and reverse energy in DC systems. The detection results can be used for local display and can also be connected to industrial control equipment and computers to form a measurement and control system.

Accurate measurement, intelligent charging! Ankerui DJSF-RN-2 DC Charging Station Energy Meter Unlocks Efficient Operation and Maintenance Experience

With the rapid development of the new energy vehicle industry, DC charging piles, as the core infrastructure for energy replenishment, have a direct impact on the operational efficiency, measurement accuracy, and safety stability of operators and users' charging experience. In the DC charging scenario, energy metering is not only the core basis for cost settlement, but also the key data support for equipment maintenance and energy consumption management. Ankerui has identified industry demand and launched the DJSF-RN-2 DC charging station rail type energy meter, which provides accurate measurement, stability, reliability, and intelligent convenience as its core advantages to safeguard the operation of DC charging stations.

The DC charging scenario has strict requirements for the measurement accuracy of electric energy meters, and even a slight error may lead to disputes between operators and users.Ankerui DJSF-RN-2 DC Charging Station Rail type Energy MeterAdopting high-precision measurement chips and strictly following relevant national standards, the measurement accuracy level reaches 0.5, which canfastCapture the changes in current and voltage during DC charging process to achieve accurate statistics of charging energy. Whether it is high current fast charging or low-power energy replenishment, it can stably output accurate measurement data, provide reliable basis for charging fee settlement, effectively avoid measurement disputes, and protect the dual interests of operators and users.At the beginning of its design, the Ankerui DJSF-RN-2 electric energy meter fully considered the harsh outdoor environment and adopted a high protection level shell to effectively resist dust and rainwater erosion; At the same time, the product has undergone strict high and low temperature testing, electromagnetic compatibility testing, and a working temperature range covering -25℃~65At ℃, it can operate stably in complex environments for a long time, significantly reducing the probability of equipment failure and lowering maintenance costs.

In the current industry trend of intelligent operation and maintenance,Ankerui DJSF-RN-2 DC Charging Station Rail type Energy MeterWith rich intelligent functions, unlock efficient operation and maintenance new models for operators. The product supports RS485 communication interface, which can easily connect to the charging station management system to achieve remote collection, transmission, and monitoring of electrical energy data. Operators can view key data such as charging capacity, voltage, and current of each charging station in real-time through the backend system, without the need for on-site manual meter reading, greatly improving operation and maintenance efficiency; At the same time, the system can analyze and summarize data to provide data support for load optimization and energy consumption management of charging piles, helping operators achieve refined operations and improve overall operational efficiency.

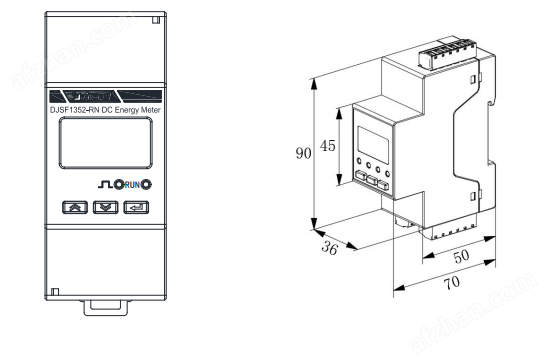

In addition, the Ankerui DJSF-RN-2 electric energy meter adopts a guide rail installation design, which is compact in structure, small in size, and easy to install. It can be directly embedded into the charging pile without occupying additional space, and is suitable for the installation needs of various DC charging piles. The product also has comprehensive protection functions, which can monitor and warn of abnormal situations such as overvoltage and overcurrent, ensuring the safety and stability of the charging process.

From home charging stations to public fast charging stations, from commercial operations to park supporting facilities,Ankerui DJSF-RN-2 DC Charging Station Rail type Energy MeterWith its core performance of precision, stability, and intelligence, it has won wide recognition in the industry market. Ankerui has always been customer-oriented, continuously cultivating the field of new energy charging, and iterating innovative products and solutions,To provide more reliable power monitoring and guarantee for the high-quality development of new energy charging infrastructure, and to help steadily promote the green travel industry.
