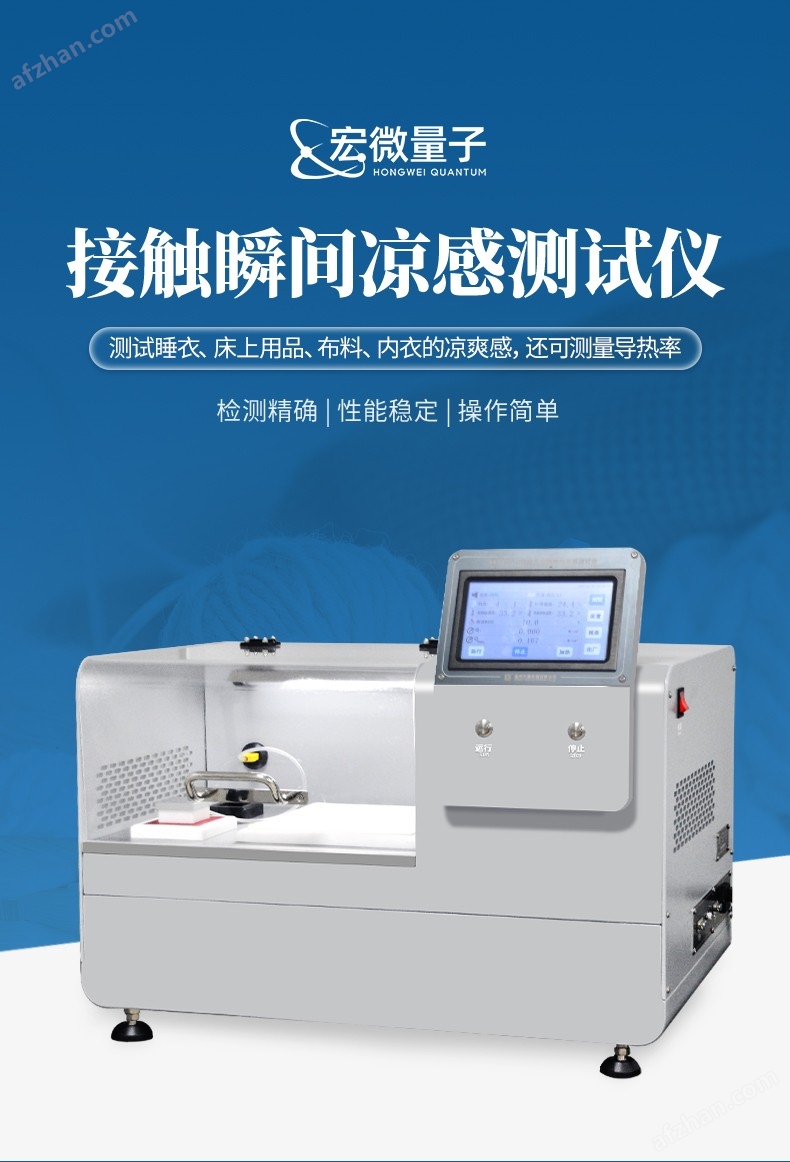

Instantaneous coolness tester for contact

Instrument usage:

Instantaneous coolness tester for contactUsed to test the coolness of pajamas, bedding, fabrics, and underwear, and can also measure thermal conductivity.

Compliant with standards:

Instantaneous coolness tester for contactCompliant with GB/T 35263-2017, FTTS-FA-019, FZT73067-2020 and other standards.

Product Features:

1. Desktop models.

2. Color touch screen display, beautiful and elegant, menu style operation mode, with convenience comparable to smartphones.

3. The core control component adopts STMicroelectronics' 32-bit multifunctional motherboard.

4. Automatic testing and automatic calculation of test results.

5. The heating plate and thermal detection plate both use high-precision sensors.

Technical Specifications:

1. Heating plate temperature range: room temperature+5 ℃~48 ℃;

2. Temperature display resolution of heating plate, thermal detection plate, and sample stage: 0.1 ℃;

3. Response time of thermal detection board: ＜ 0.2s;

4. Test time: adjustable from 0.1s to 99999.9s;

5. Temperature range of low-temperature constant temperature bath: -5 ℃ to 90 ℃;

6. Online software control, real-time testing curve;

7. Equipped with printer interface;

8. Power supply: 220V, 50Hz, 150W;

9. Dimensions: 900 × 340 × 360mm (L × W × H);

10. Weight: 40Kg;

Configuration List:

1. 1 host

2. One low-temperature constant temperature bath

3. Three sample loading platforms

4. 1 product qualification certificate

5. 1 copy of product user manual

6. 1 delivery note

7. 1 acceptance certificate
