JEIOTECH Filter Storage Cabinet

BS 7989 2001
·The filtering capacity of this filtering storage cabinet meets the requirements of BS 7989, and the described parameters comply with the specifications for circulating filtering gas cabinets.

Low cost operation

Save energy and storage space
·More convenient to install storage cabinets and no longer requiring exhaust ducts.
·The air purification system inside the storage cabinet can prevent heating or cooling changes caused by the exhaust system, avoiding energy consumption.

Customized filter cartridge
·ISO Level 4(Equivalent to Federal Level 10)HEPA filters can prevent cross contamination(Optional)(Optional)
·HEPA filters that meet Level 10 leak prevention standards can remove 99.99% of particles larger than 0.3 μ m(Federal 209E Standard) The average lifespan of HEPA is 3 years - mainly depending on the experimental environment (Optional)
·High quality polyester pretreatment removes large particles and improves the lifespan of HEPA filters.
·Activated carbon filter cartridge; Volatile Organic Compound Filter/Ammonia Filter/Acid Filter(Optional)
·The front cover design facilitates the replacement of the filter element and the inspection of its service life.

Multi functional operation
·Easy to use features
·-Automatically start/stop running; In the event of a sudden power outage, the machine can automatically operate when power is restored.
·-The setting depends on the customer's needs.

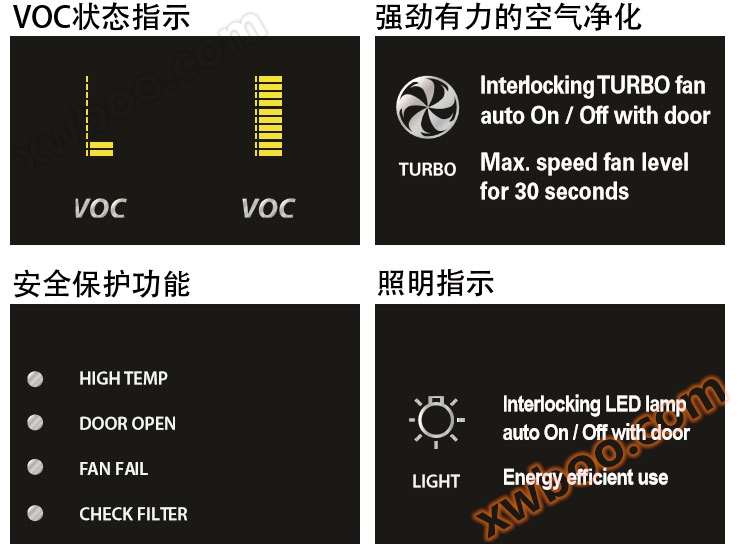

·Safety alarm with LED indicator light
·-High temperature alarm function, and the fan automatically stops.
·-Fan abnormal alarm function.
·-The door opening alarm function can protect user safety and clean the environment.
·Economic and environmentally friendly sleep patterns-If the working hours are from 9am to 6pm, the system working hours can be set to 8am to 6pm. This saves 60% of energy and can extend the lifespan of fans and filters.
·VOC status indication.
·-Can clearly and vividly display the VOCs inside the storage cabinet(Volatile Organic Compounds)
·-The VOC probe inside the storage box can display and monitor the status of VOCs in real time.

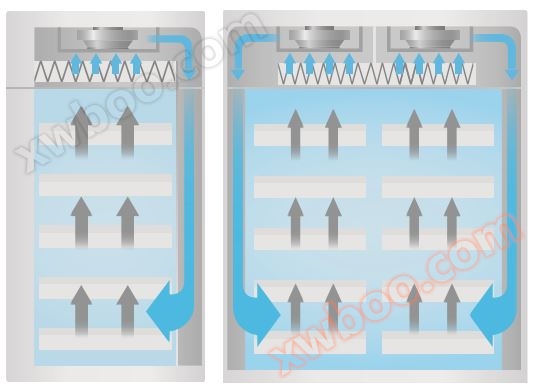

·Strong and powerful air purification
·-Before opening the door, simply press the eddy current fan button lightly to absorb the hazardous gases inside to the maximum extent possible, providing safer protection for operators.
·-The vortex fan can also be set to be interlocked with the door, and the fan starts working when the door is opened.

Convenient and safe storage function
·Both doors and drawers comply with SEFA requirements
·-The load design and testing of door hinges and drawers are designed and tested according to SEFA requirements, so they are very sturdy. Producing according to international standards can ensure quality. In addition, we also test according to our internal testing standards, so it is safer
·-The internal box and drawers can support a maximum weight of 40kg. Imagine that a drawer can hold a little boy around 10 years old. So there is no need to worry about the drawer being unstable or bent.
·Chemical resistant epoxy coated steel plate and transparent tempered glass
·-Chemical resistant epoxy coated steel plates can effectively store toxic chemicals.
·All units are made of epoxy coated steel plates to prevent corrosion.
·-Transparent tempered glass allows for clear observation of stored samples.
·-The full-length door handle design allows for easy door opening at any height.
·Large internal space
·-The sliding drawer design makes the internal space larger.
·-Overflow tray and door lock facilitate sample cleaning and provide safety protection
