PID intelligent regulator

NegotiableUpdate on 01/08

Model

Nature of the Manufacturer: Producers

Product Category

Place of Origin

Online Consult

Overview

XSC5/A-HIT3C1A1B1S2V0 has good stability, high cost-effectiveness, and wide applications XSC5/A-HIT3C1A1B1S2V0 input signals: thermistor, thermocouple, DC current, DC voltage, remote pressure gauge, etc. PID intelligent regulator XSC5/B-FIT2C1A1B1V0 has high accuracy and good applicability

Product Details

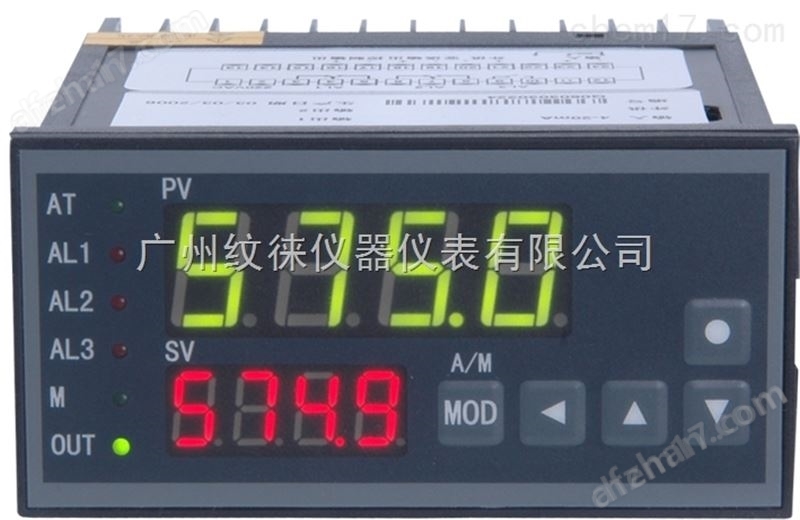

XSC5/B-FIT2C1A1B1V0 PID Intelligent Regulator

① Basic error better than ± 0.2% F · S, 16 bit A/D converter, measurement and control cycle of 0.2 seconds, self-tuning
② Anti interference design, suppressing fast pulse group interference and other electromagnetic interference generated by relays, contactors, etc. on site, with anti-interference capability reaching level III
③ Input signals: thermistor, thermocouple, DC current, DC voltage, remote pressure gauge, etc
④ Dimensions: 160 × 80 (horizontal/vertical), 96 × 96, 96 × 48 (horizontal/vertical), 72 × 72, 48 × 48
⑤ Instrument power supply: 220V AC, (9~30) V DC
⑥ Hand/Auto Switching
Basic Configuration
Dual display, control output
Extended features
① Alarm output: Three sizes of 160 × 80, 96 × 96, and 96 × 48 can add up to 3 points; 72 × 72, 48 × 48 can add 1 point
② Transmission output
③ External power supply (24V or 12V)
④ Communication interface: RS 232 or RS 485

Selection Table

content

Code Description

XSC5/

PID intelligent regulator, dual display, control output

appearance

size

A—

160 (W) × 80 (H) × 125 (L) or 80 (W) × 160 (H) × 125 (L)

B—

96(W)×96(H)×112(L)

C—

96 (W) × 48 (H) × 112 (L) or 48 (W) × 96 (H) × 112 (L)

D-

72(W)×72(H)×112(L) (限XSC5)

E—

48(W)×48(H)×112(L) (限XSC5)

Panel form

horizontal format

vertical form

square

input signal

(Instructions for ordering other input signals)

Thermocouples K, S, R, B, N, E, J, T or radiation thermometers

Thermistors Pt100, Cu100, Cu50, BA1, BA2, G53 or resistors

Direct current (4~20) mA, (0~10) mA, or (0~20) mA

DC voltage (0~5) V, (1~5) V

DC mV (specify range in order)

Potentiometer 500 Ω~5000 Ω

Remote Pressure Gauge

Number of alarm points

T□

T0: No alarm T1~T3: Alarm at 1-3 points

controlled output

No output

Current output (4~20) mA, (0~10) mA, or (0~20) mA

Voltage output (0~5) V, (1~5) V

Voltage output (0~10) V

Solid state relay driving voltage output

Thyristor non-contact normally open output

Zero crossing trigger output of thyristor

Relay contact switch output

transmitter output

(Independent power supply, fully isolated. 10 bit D/A, error less than ± 0.5%, or 12 bit D/A, error less than ± 0.2%)

No output

Current output (4~20) mA, (0~10) mA, or (0~20) mA

Voltage output (0~5) V, (1~5) V

Voltage output (0~10) V

Other outputs

external power supply

No external power supply

External supply 24V DC

External supply 12V DC

External precision voltage source

External precision constant current source

other

communication interface
(Independent power supply, fully isolated, 2400~19.2K instrument address 0~99, response delay less than 500 μ s)

No communication interface

RS-232 interface

RS-485 interface

instrument power supply

220V AC

24V DC

12V DC

other
