Portable X-ray inspection device

1. Product detailed name: portableX-ray scanner QRTH-80S

2. Product Overview:

Portable constant current developed and produced by the companyThe X-ray source and the configured digital display system adopt advanced high-resolution progressive digital imaging technology. The system can adjust the X-ray emission time and energy according to the thickness of suspicious objects, enhance penetration ability, and improve clarity. Portable X-ray inspection systems are used in explosion-proof safety inspections, criminal technology inspections, mobile anti smuggling, and anti drug workappropriateCheck the instruments. They can quickly obtain images of dangerous items hidden in packages, such as devices, knives, and other powdery objects.

3. System Description:

3.1.Portable X-ray inspection deviceThe system consists ofX-ray machine, digital imaging device, installationLaptop with control software，The entire system is housed in a protective box for easy portability.

(1)

3.1.1 X-ray machine:heavyQuantity:2.3kg；

(2)Size:356mmx160mmx90mm

(3)electricitySource:Constant current can be connected externally220VAC power is supplied to the imaging boardelectricity

(4)X-ray machine energy：80KV constant current;

(5)beam：0.5mA

(6)Penetrating power: penetrable60mm aluminum plate，4-8Mm steel plate.

(7)Focus size:Φ0.5mm；

(8)

Transmission method:Device built-in wirelesswifi、 Bluetooth and network routing module，There are two methods of communication: wireless communication and wired communication

(9)Dustproof and waterproof portable button, anti-collision switch.

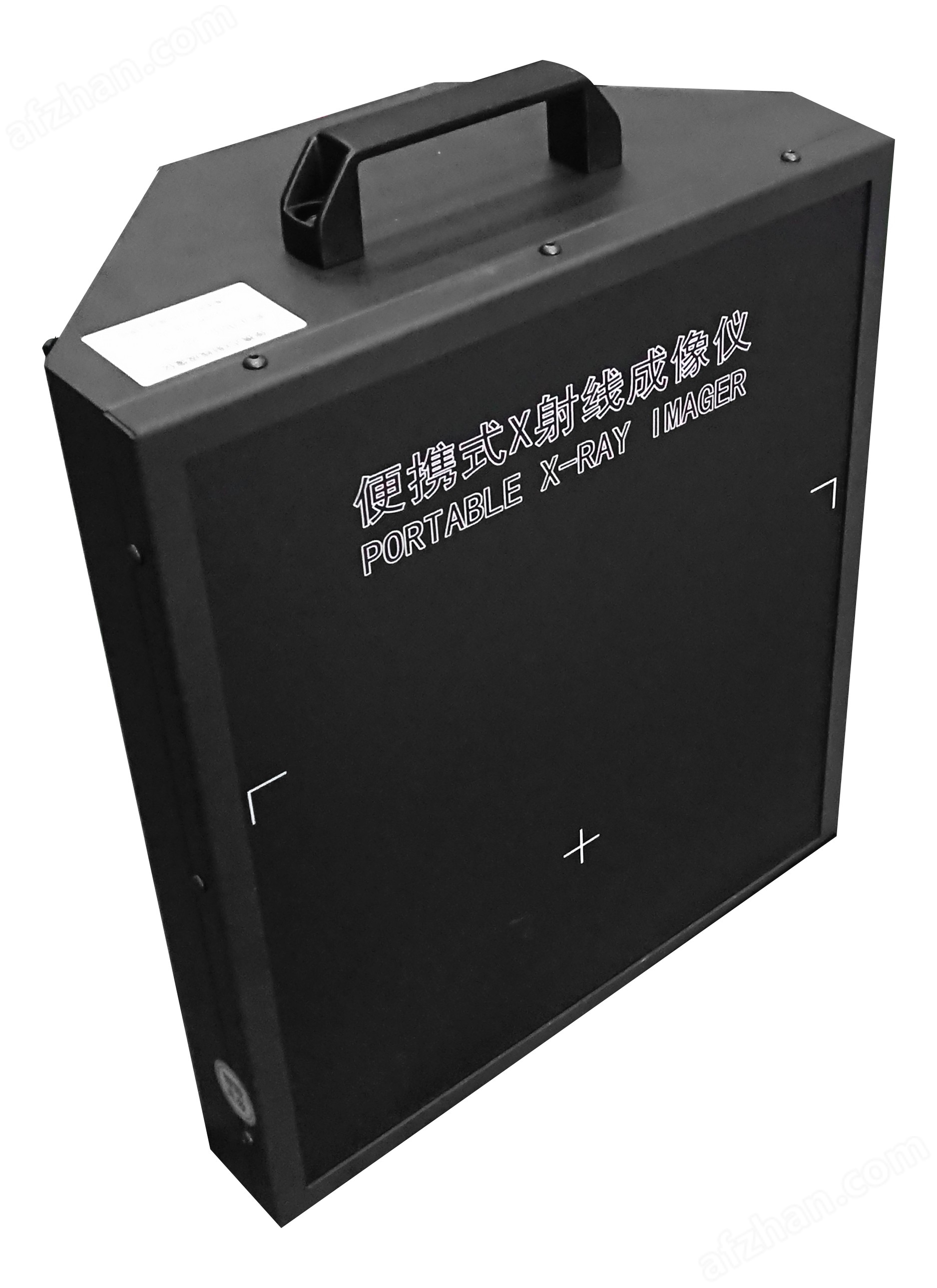

3.1.2 Digital Imager:

（1）Imaging mechanism： CCD imaging

（2）weight:2kg

（3）Size:390mm×340mm×170mm

（4）Imaging size:305mm×254mm

（5）Bit rate:10Bits

（6）Resolution:1920×1080Pixels

（7）Power supply: external power supply(220V,50Hz)， Rechargeable battery

（8）No need for an external control boxwait

3.1.3 Touchscreen Tablet:

Operating System:Windows 10 Professional Edition

Processor:Inter quad core processor

Battery capacity:3000mAh

touch screen:Full screen touch control, adjustable brightness, zoom in/out, and other functions through finger opening and closingCan.

4. System features:

*Easy to operate: All operating systems have a Chinese interface, and the system starts quickly. After entering the system, images of the inspected items can be captured within seconds

*Field work: No external power supply is required in any environment or location. Its self configured power supply device

Can make the system work continuouslyMore than 6 hours.

*Image transmission: equipped with a 30 meter cable for wired transmission;

4.2. Image acquisition system

*Image acquisition: Advanced high-resolution line by line digital imaging system is adopted, with one click image capture function and automatic saving of captured images. You can perform simple operations such as zooming in and out on images!
