SPF Test UV Sunlight Simulator

Product Details

Six portsSPF Test UV Sunlight Simulator

Solar Light^TMThe daylight simulator is used in 95% of SPF testing laboratories worldwide and complies with the latest COLIPA, JCIA, And FDA spectral radiation standards.

All products undergo calibration traceable to NIST standards before leaving the factory
One year warranty period
Lifetime free telephone technical service
Can extend the warranty period
Compliant with the latest COLIPA, FDA, and JCIA standards

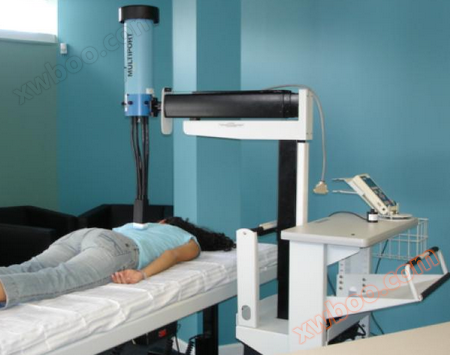

601 Multiport Simulator is an SPF testing and monitoring system. The 601 simulator can output UVA or UVA+UVB spectra from 6 separate ports. The light intensity of each output port can be adjusted separately, so that the 6 ports can transmit different ultraviolet light doses, allowing for diverse measurements in the short term.
601 UV radiation output range 290-400nm (suitable for SPF testing and skin disease research). The light intensity output of each port of 601 can reach 4MED per minute, making it an ideal laboratory equipment for completing a large number of measurements. The output light intensity is 20 times that of the sun, accurately simulating the ultraviolet spectrum of the sun.
Each output port of 601 has a light intensity regulator that can control the output light intensity.

The main features are as follows:

300 watt bulb
UV Filter - Compliant with the 2003 International SPF Testing Method Standard
Internal to Igniter - Used for Xenon Arc Lamp Ignition
light source
6 liquid optical fibers, each 19.7 "(50cm) long
Adjustable bracket, vertically adjustable distance of 20 "(50cm)
Complete high-performance optical components (for collimation and uniformity control)
Output selection switch, can choose between UV-A and UV-A+UV-B spectral outputs

Technical indicators:

Lamp body
Light bulb type		300W short arc xenon lamp
output		6 8mm * 8mm output ports, 6 ports with independent adjustable strength, 0-100%
Spectral output standard		CO;IPA UV
irradiance		4MED/min (300W bulb)
Uniformity of effective irradiation area		<±5% (from collimating lens to effective working distance)
Stability of output light intensity (Preheating)15 minutes later)		Better than<±2% (maximum linear voltage fluctuation)<±10%）
lens		Coated anti reflective quartz
Working distance		<3mm from the output port surface to the test surface
refrigeration		Forced air cooling
weight		18lb. （8.1kg）
size		5.5″（140mm）Case Dia17″（432mm）H6.79″（172mm）fan assembly Dia.
Power Supply
type	Adjustable, constant power supply
refrigeration	Forced air cooling
Power requirements	90-250VAC 4Amps
weight	8lb. （3.6kg）
size	12.75″（324mm）D10″（254mm）W4.5″（114mm）H
Shutter Control
manual control		Manually open the shutter
External trigger control		The PMA dose control system controls based on time or dose settings

Optional accessories (Dosage control system for SPF measurement using DCS-SPF)

Users can purchase an automatic dose control system separately to monitor spectral output and automatically control dose. It can accumulate the total ultraviolet output, and when the ultraviolet dose reaches the preset measurement value, it can automatically close the shutter to stop spectral output.

Port dose control system:

PMA2100 Dose Control Table
PMA2113 UVA detector
PMA2103 UVB detector
Dose Controller Shutter Power Control Board
