Smart Hotel SIP Network Broadcast Audio Active Speaker

NegotiableUpdate on 02/26

Model

Nature of the Manufacturer: Producers

Product Category

Place of Origin

Online Consult

Overview

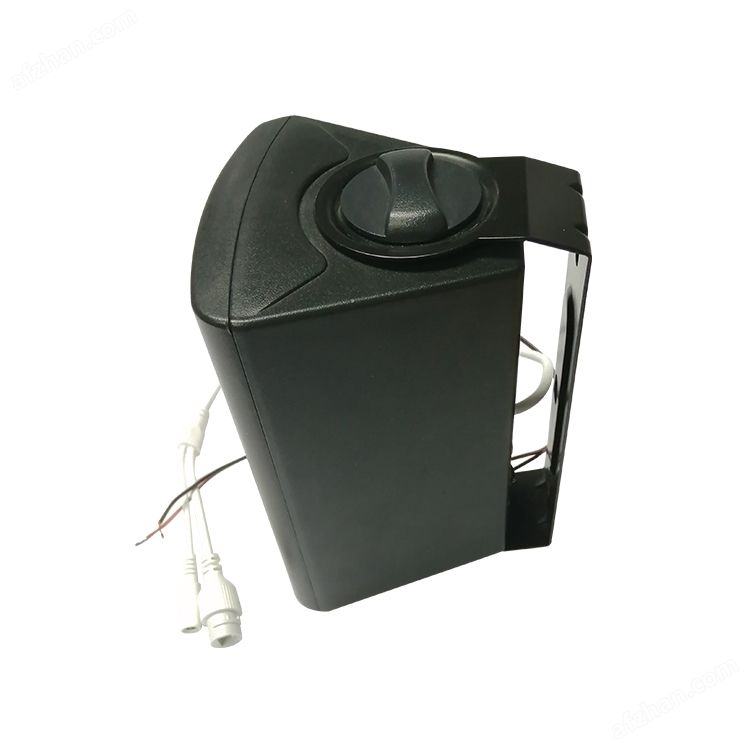

SV-7041TP Smart Hotel SIP Network Broadcast Audio Active Speaker is a wall mounted SIP network active speaker with a 10/100M Ethernet interface. It can play the network audio source through its built-in amplifier and speaker output, with a power of up to 15W. It is used in large areas. Can be used in indoor environments where broadcasting is required, such as banks, chain stores, classrooms, hospitals, factories, etc.

Product Details

1、 Description

SV-7041TPSmart Hotel SIP Network Broadcast Audio Active SpeakerIt is a wall mounted SIP network active speaker with a 10/100M Ethernet interface. It can play network audio through its built-in amplifier and speaker output, with a power of up to 15W. It is used in large areas. Can be used in indoor environments where broadcasting is required, such as banks, chain stores, classrooms, hospitals, factories, etc.

SV-7041TPSmart Hotel SIP Network Broadcast Audio Active SpeakerThe device only has network broadcasting function and is a simple network active speaker with power amplifier output. It receives network audio data and provides audio output.SV-7041TP can be used in conjunction with server control software and fixed impedance speakers to achieve control in the control roomSV-The 7041TP terminal performs functions such as timed ringing, real-time voice broadcasting, and emergency broadcasting.

2、 Product features and functions

lFully offline: Our broadcast playback system does not require server software support and can be directly integrated withSV-8003TP network intercom host docking, realizing broadcasting and shouting functions.

lBroadcast function: Can accept broadcast data playback from the central broadcast, which can be done throughSV-The 7041TP comes with an amplifier and speakers for output playback.

Broadcast support255 priorities, high priority audio can interrupt low priority audio.

lEasy to expand: Can cooperateThe SV-8003TP intercom broadcast microphone is used to achieve functions of full area broadcasting, group broadcasting, and unicast, as well as compatibility with our company's other broadcast decoding terminals. You can freely choose to build a simple broadcast playback system.

3、 Technical parameters

Network interface: 10/100Base TX adaptive network, RJ45 interface, data transmission and reception indication

Network protocol: supportRTP、UDP、TCP、ARP、ICMP，DHCP，DNS，IGMP，SIP、G.711A/U，Ｇ.722等

Broadcast output: bring your own20W amplifier and speaker

Input voltage: DC12V

meritConsumption: static<300mW

Operating Temperature 0 ℃~55 ℃ (wide temperature version: -40 ℃~80 ℃)

Specifications and dimensions: 170*150*215mm(Long)Width and height

panel Plastic casing, wall mounted installation

heavyQuantity:
