Solar wind speed and direction recorder
NegotiableUpdate on 03/08
- Model
- Nature of the Manufacturer
- Producers
- Product Category
- Place of Origin
Overview
The solar wind speed and direction recorder has built-in memory or mechanical recording device, supporting long-term continuous recording (such as 1 year of data), and the recording interval can be set from 1 minute to 1000 minutes. Equipped with wireless transmission modules such as GPRS, 4G, LoRa, or wired transmission through RS485 interface, data can be uploaded in real-time to the cloud platform or monitoring center. Support synchronous monitoring of instantaneous wind speed and average wind speed (such as 2-minute and 10 minute averages).
Product Details
Solar wind speed and direction recorderBuilt in memory or mechanical recording device, supporting long-term continuous recording (such as 1-year data), with recording intervals ranging from 1 minute to 1000 minutes. Equipped with wireless transmission modules such as GPRS, 4G, LoRa, or wired transmission through RS485 interface, data can be uploaded in real-time to the cloud platform or monitoring center. Support synchronous monitoring of instantaneous wind speed and average wind speed (such as 2-minute and 10 minute averages).
1、 Product Introduction
The QC2 wind speed and direction recorder is a highly integrated, low-power, quick to install, and easy to use high-precision meteorological observation device for field monitoring.

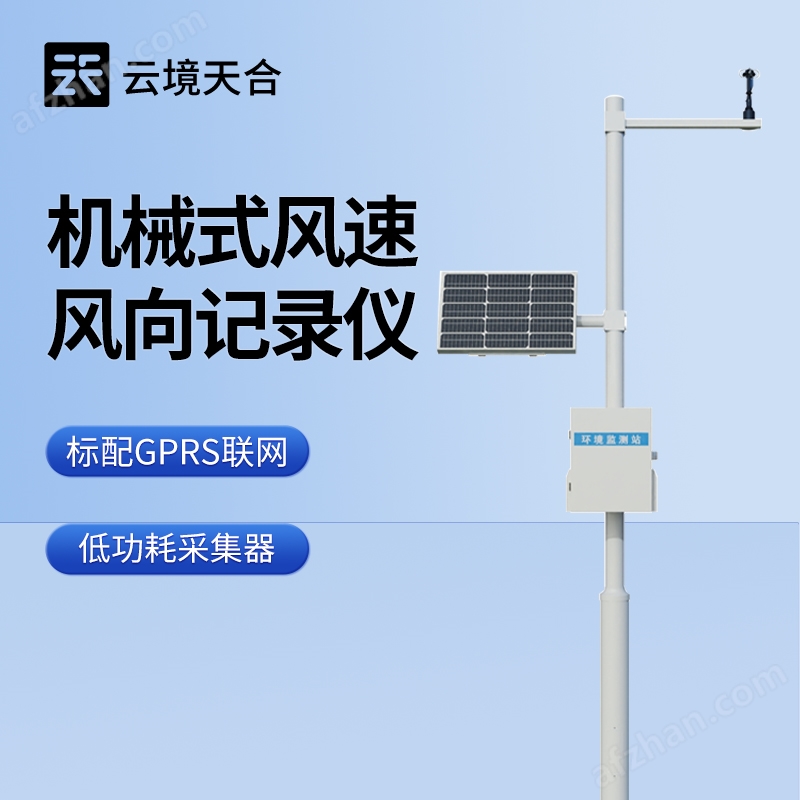

Solar wind speed and direction recorderIt consists of five parts: meteorological sensor, collector, solar power supply system, pole bracket, and cloud platform. No debugging required, can be quickly arranged, widely used in fields such as tower cranes, cableways, ships, meteorology, agriculture, forestry, environmental protection, oceanography, airports, ports, scientific research, campus education, etc.
2、 Product Features
1. Low power collector: static power consumption less than 1mA
2. Standard GPRS networking, support for extended Bluetooth, wired transmission
3. 7-inch Android touchscreen, version 4.4.2, quad core Cortex ™- A7512M/4G (optional)
4. Support modbus485 sensor expansion
5. Solar charging management MPPT automatic power point tracking
6. Three meter carbon steel bracket with two flange joints
7. SMS alarm, send SMS to the designated phone after exceeding the limit
8stainless steelMaterial protective box, corrosion-resistant, anti-oxidation, waterproof rating IP66
3、 Technical parameters
1Collector power interface: GX-12-4P, input voltage 8-16V, with RS485 output JSON data format
2. Sensor Modbus, 485 interface: GX-12-4P plug, output power supply voltage 12V/1A, device configuration interface: GX-12-4P plug, input voltage 5V
3. Solar powered, equipped with lead-acid batteries, optional 30W 20AH/50W 40AH/100W 100AH. Charging controller: 150W, MPPT automatic power point tracking, efficiency increased by 20%
4. Data upload interval: adjustable from 1 minute to 1000 minutes
5. 7-inch Android touchscreen, screen size: 1024 * 600 RGB LCD (optional)
6. Partial sensor parameters
| name | measurement range | resolution | Accuracy |
| ambient temperature | -40～+80℃ | 0.01℃ | ±0.3℃（25℃） |
| relative humidity | 0～100%RH | 0.01%RH | ±3%RH（20%~80%） |
| illuminance | 0-157286LUX | 1Lux | ＜±3% |
| atmospheric pressure | 300-1100hpa | 0.1hPa | ±0.25% |
| dew point temperature | 0~+70℃ | 0.1℃ | ±1℃ |
| soil temperature | -30～+70℃ | 0.01℃ | ±0.3（-10~70℃） |
| soil moisture | 0～100% | 0.1% | ±3% |
| soil salinity | 0~20000us/cm | 1us/cm | ± 3 (0~10000us/cm) ± 5% (full range) |
| Soil pH | 0-14PH | 0.01 | ±0.1PH |
| Wind direction | 0-360 degrees | 0.1 degrees | ± 1 degree |
| Wind speed | 0-60m/s | 0.01m/s | ±0.2m/s |
| Average wind speed ☆ | 0-60m/s | 0.01m/s | ±0.2m/s |
| Rainfall | ≦4mm/min | 0.2mm | ≤±2% |
| ultraviolet radiation | 0～500W/ ㎡ | 0.01W/ ㎡ | ≤±3% |
| sunshine duration | 0～6500h | 0.1 h | ＜0.2 h |
| Total photoelectric radiation | 0-2000W/m2 | 1W/m2 | ＜±3% |
| Photosynthetically active radiation | 0-2000W/m2 | 1W/m2 | ≤±5% |
| PM2.5 | 0-1000ug/m³ | 1ug/m³ | ± 10% (<500 micrograms) |
| PM10 | 0-1000ug/m³ | 1ug/m³ | ± 10% (<500 micrograms) |
| carbon monoxide | 0-1000ppm | 1PPM | ±2PPM |
| sulfur dioxide | 0-20PPM | 0.1PPM | ±1PPM |
| nitrogen dioxide | 0-20PPM | 0.1PPM | ±1PPM |
| ozone | 0-20PPM | 0.1PPM | ±1PPM |
| negative oxygen ion | 0-100000 pieces/cm3 | 1 piece/cm3 | Reading ± 10%; Ionic mobility ≤± 20% |
| oxygen content | 0~25%Vol | 0.1% | ±3%FS |
7. The whole machine has obtained the calibration certificate from the National Meteorological Measurement Station
8. Production enterprises have ISO quality management system, environmental management system, and occupational health management system certifications
9. The production enterprise has a computer software registration certificate
4、 Introduction to upper computer software
1. PC standalone version data receiving, storage, viewing, and analysis software
2. Support serial data reception, processing, and display
3. Support communication methods such as JSON strings and Modbus 485
4. The storage time can be set by oneself, and the collection time can be set by oneself in modbus485 collection mode
5. Support self-service addition, deletion, and modification of monitoring parameters such as protocols, names, icons, etc
6. Support data post-processing function
7. Support external running of JavaScript scripts
5、 Introduction to Android APP
1. Android standalone version data receiving, storage, viewing, and analysis software
2. Support Bluetooth data reception
3. After the mobile phone goes into sleep mode, the software backend receives and processes it
4. JSON data automatically adds devices, Modbus devices support scanning to add devices
5. Support viewing, analyzing, and exporting tables of historical data, as well as displaying curves and viewing odd numbered sites.
6. Support data post-processing function
7. Support external running of JavaScript scripts
6、 Introduction to Cloud Platform
1. CS architecture software platform, supporting direct observation through mobile and PC browsers without the need for additional software installation.
2. Support multi account and multi device login
3. Support real-time data display and historical data display dashboard
4. Cloud servers and cloud data storage are stable, reliable, easy to scale, and load balanced.
5. Support SMS alarm and threshold setting
6. Support map display and viewing device information.
7. Support data curve analysis
8. Support data export in tabular format
9. Support data forwarding, HJ-212 protocol, TCP forwarding, HTTP protocol, etc.
10. Support data post-processing function
11. Support external running of JavaScript scripts
