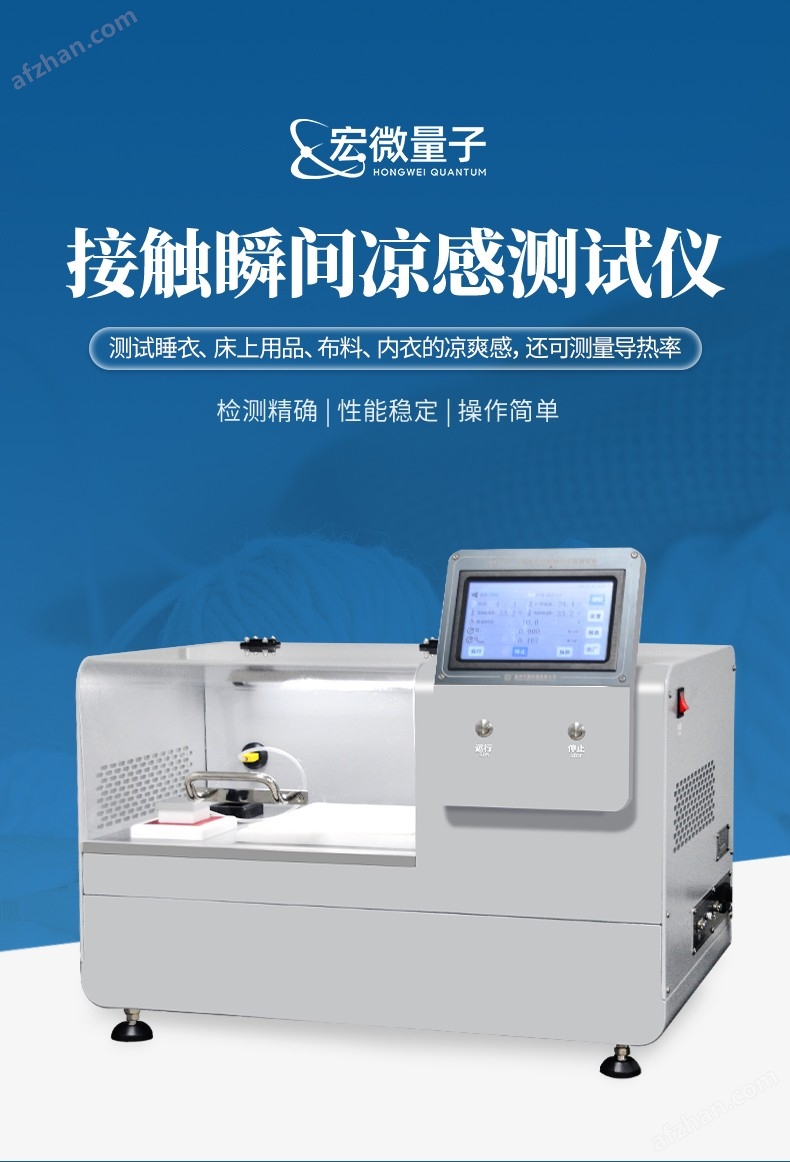

Textile Contact Instantaneous Coolness Tester

Instrument usage:

Textile Contact Instantaneous Coolness TesterUsed to test the coolness of pajamas, bedding, fabrics, and underwear, and can also measure thermal conductivity.

meet the standards

Textile Contact Instantaneous Coolness TesterCompliant with standards such as GB/T 35263-2017 and FZT73067-2020.

Product Features:

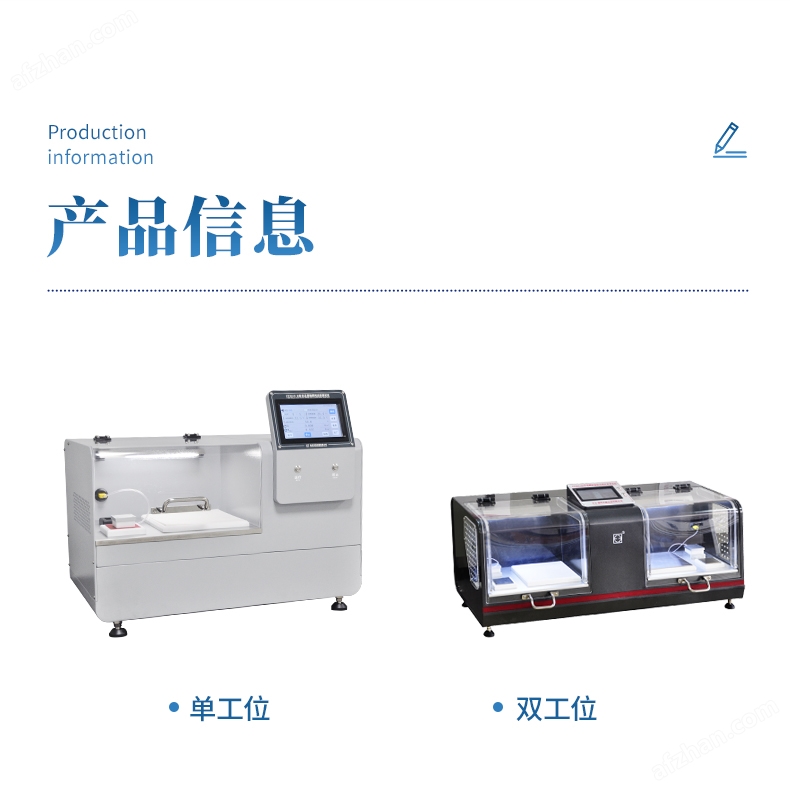

1. Desktop models.

2. Color touch screen display, beautiful and elegant, menu style operation mode, with convenience comparable to smartphones.

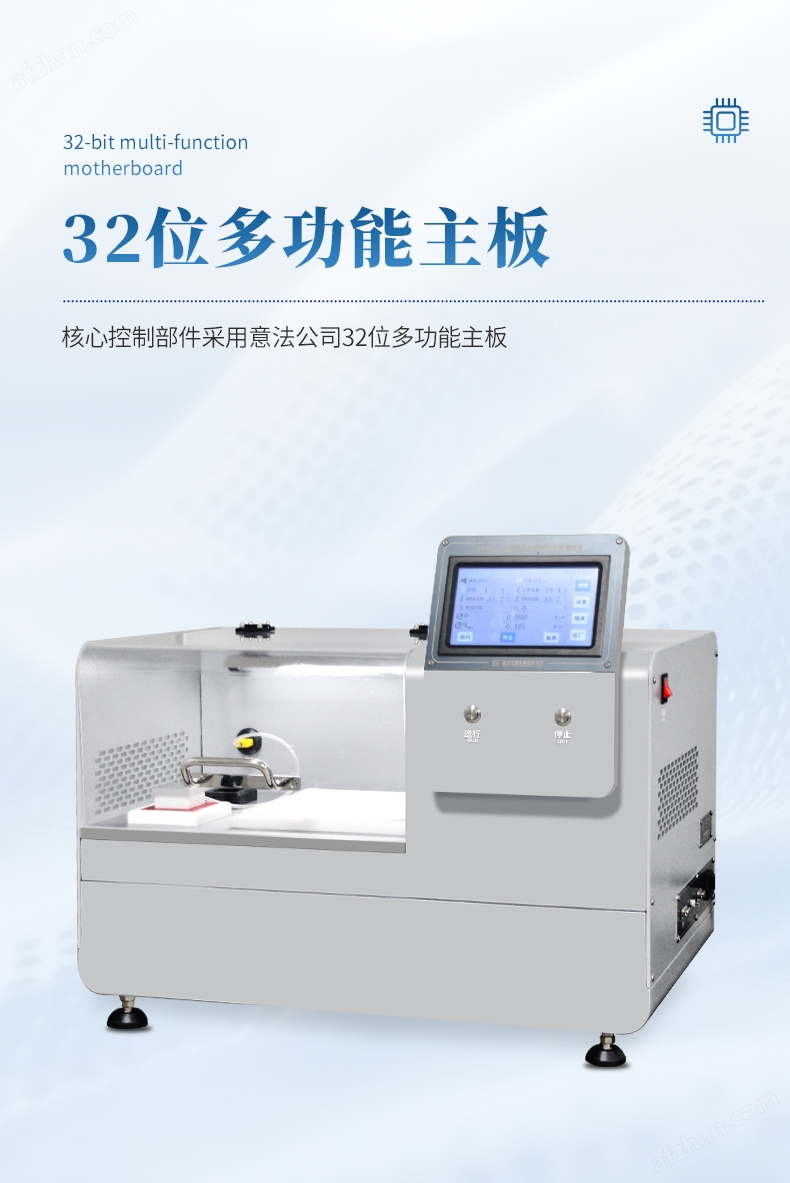

3. The core control component adopts STMicroelectronics' 32-bit multifunctional motherboard.

4. Automatic testing and automatic calculation of test results.

5. The heating plate and thermal detection plate both use high-precision sensors.

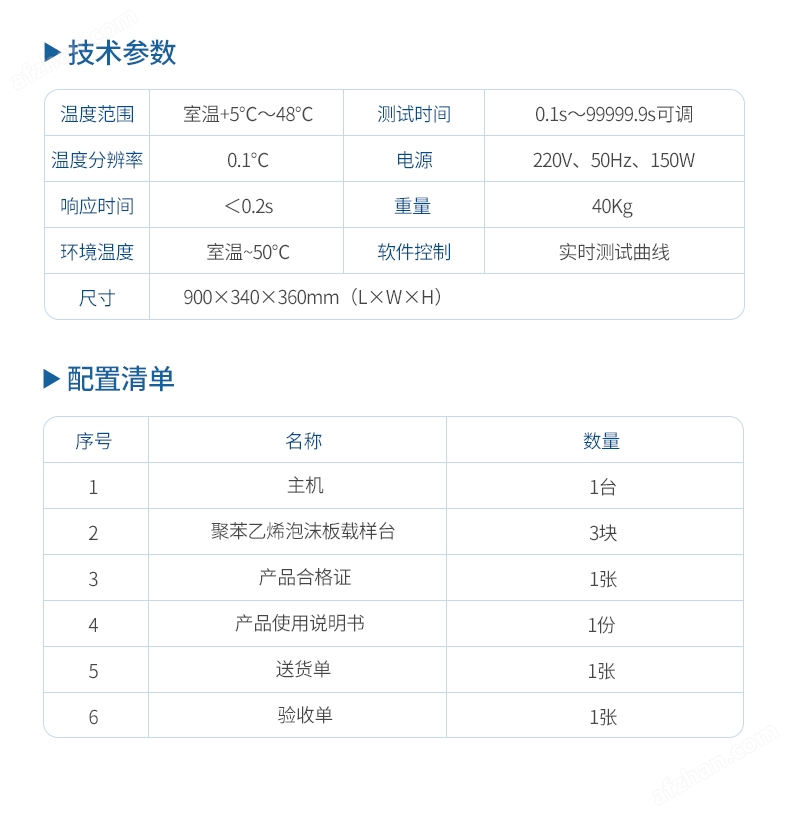

Technical Specifications:

1. Heating plate temperature range: room temperature+5 ℃~48 ℃;

2. Temperature display resolution of heating plate, thermal detection plate, and sample stage: 0.1 ℃;

3. Response time of thermal detection board: ＜ 0.2s;

4. Test time: adjustable from 0.1s to 99999.9s;

5. Online software control, real-time testing curve;

6. Equipped with printer interface;

7. Power supply: 220V, 50Hz, 150W;

8. Dimensions: 900 × 340 × 360mm (L × W × H);

9. Weight: 40Kg;

Configuration List:

1. 1 host

2. Three sample loading platforms

3. 1 product qualification certificate

4. 1 copy of product user manual

5. 1 delivery note

6. 1 acceptance certificate
