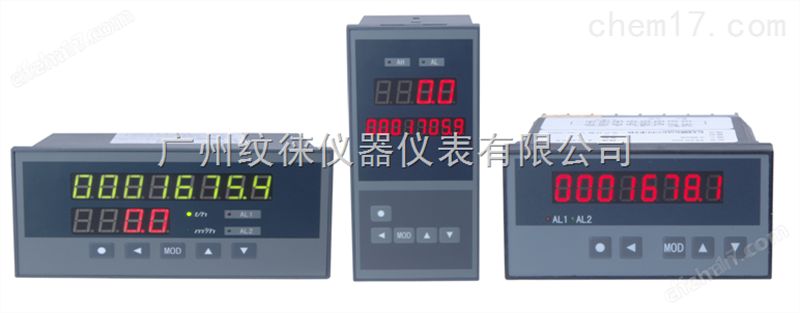

XSJB/A-HB3S2DV2L3W3Y1 integrator
Product Details
XSJB/A-HB3S2DV2L3W3Y1 integrator
Detailed introduction:
① Suitable for flow measurement and accumulation of superheated steam, saturated steam, and general gases that require temperature and pressure compensation
② Temperature, pressure, and flow (current, voltage, pulse) inputs, with a basic error of better than ± 0.2% F · S
③ Can display cumulative quantity, instantaneous flow rate after compensation, density, temperature, pressure, and instantaneous flow rate before compensation
④ Dimensions: 160 × 80 (horizontal/vertical), 96 × 96
⑤ Instrument power supply 220V AC, (9~30) V DC
Basic configuration: XSJB/A-HB3S2DV2L3W3Y1 integrator
Dual display, external transmitter power supply
Extended functions:
① Alarm output, maximum 2 points, configurable
② Transmission output or cumulative pulse output
③ Communication interface: RS 232 or RS 485
④ Power outage record (anti-theft function)
Selection Table
content |
Code and Description |
|||||||||||||||
XSJB/ |
Dual display, external transmitter power supply |
|||||||||||||||
Overall dimensions |
A— |
Horizontal 160 × 80 × 125 or vertical 80 × 160 × 125 |
||||||||||||||
B— |
96×96×112 |
|||||||||||||||
Panel form |
H |
horizontal format |
||||||||||||||
S |
vertical form |
|||||||||||||||
F |
square |
|||||||||||||||
Number of alarm points |
T□ |
T0: No alarm T1~T2: 1~2 point alarm |
||||||||||||||
|
transmitter output (Independent power supply, fully isolated. 10 bit D/A with an error of less than ± 0.5%, or 12 bit D/A with an error of less than ± 0.2% ) |
A0 |
No output |
||||||||||||||
A1 |
Current output (4~20) mA, (0~10) mA, or (0~20) mA |
|||||||||||||||
A2 |
Voltage output (0~5) V, (1~5) V |
|||||||||||||||
A3 |
Voltage output (0~10) V |
|||||||||||||||
A4 |
Other outputs |
|||||||||||||||
|
External power supply |
B0 |
No external power supply |
||||||||||||||
B1 |
External supply 24V DC, error less than ± 5%, 50mA |
|||||||||||||||
B2 |
Two sets of external power supplies, 24V DC and 12V DC |
|||||||||||||||
B3 |
other |
|||||||||||||||
|
communication interface (Independent power supply, fully isolated, 2400~19.2K instrument address 0~99, response delay less than 500 μ s) |
S0 |
No communication interface |
||||||||||||||
S1 |
RS-232 interface |
|||||||||||||||
S2 |
RS-485 interface |
|||||||||||||||
S3 |
RS 422 interface |
|||||||||||||||
Printing function (with hardware clock) |
P |
P represents the printing interface, which can be omitted if not included |
||||||||||||||
Power outage recording function |
D |
D means with power outage recording function, can be omitted without it |
||||||||||||||
instrument power supply |
V0 |
220V AC |
||||||||||||||
V1 |
24V DC |
|||||||||||||||
V2 |
12V DC |
|||||||||||||||
Traffic input signal |
L1 |
Current: (4~20) mA DC, (0~10) mA DC, or (0~20) mA DC |
||||||||||||||
L2 |
Voltage: (0~5) V DC, (1~5) V DC |
|||||||||||||||
L3 |
pulse |
|||||||||||||||
Temperature input signal |
W1 |
Current: (4~20) mA DC, (0~10) mA DC, or (0~20) mA DC |
||||||||||||||
W2 |
Voltage: (0~5) V DC, (1~5) V DC |
|||||||||||||||
W3 |
Thermal resistance: pt100 (0.0 ℃~400.0 ℃) |
|||||||||||||||
W4 |
Hot couple: K, T, E, S (0.0 ℃~999.9 ℃) |
|||||||||||||||
Pressure input signal |
Y1 |
Current: (4~20) mA DC, (0~10) mA DC, or (0~20) mA DC |
||||||||||||||
Y2 |
Voltage: (0~5) V DC, (1~5) V DC |
|||||||||||||||
Similar products: XSJB/A-HA1B3S2V0L3Y1 integrator
XSJB/B-FT0A2B2S1DV0L3W3Y2 flow integrator
XSJB/B-FT0A1B0S2DV0L3W3Y2 flow integrator
XSJB/B-FT0A2B2S2DV0L2W2Y2 flow integrator
XSJB/B-FT0A1B1S1DV0L2W1Y1 flow integrator
XSJB/B-FT0A0B0S0DV0L1W1Y1 flow integrator
XSJB/A-ST0A1B2S1DV0L1W1Y1 flow integrator
XSJB/A-ST0B0B1DV0L1W1Y1 flow integrator
XSJB/A-ST0B0B1S0DV0L1W1Y1 flow integrator
XSJB/A-HT0A2B2S2DV0L2W2Y2 flow integrator
XSJB/A-HT0A2B2S2DV0L3W1Y1 flow integrator
XSJB/A-HT0A2B2S2DV0L2W1Y1 flow integrator
XSJB/A-HT0A2B2S2DV0L1W1Y1 flow integrator
XSJB/A-HT0A2B2S1DV0L1W1Y1 flow integrator
XSJB/A-HT0A2B2S0DV0L1W1Y1 flow integrator
XSJB/A-HT0A2B1S0DV0L1W1Y1 flow integrator
XSJB/A-HT0A1B0S0DV0L1W1Y1 flow integrator
XSJB/A-ST0B0S0DV0L1W1Y1 flow integrator
XSJB/A-HT0A0B0S0DV0L1W1Y1 flow integrator
XSJB/A-HT0A1B1S1DV0L1W1Y1 flow integrator
XSJB/B-FT0A1B1S1DV0L1W1Y1 flow integrator
XSJB/B-FT0A0B0S0DV0L1W1Y1 flow integrator
XSJB/B-FT0A0B0S0DV0L1W1Y1 flow integrator
XSJB/B-F flow integrator XSJB/A-S flow integrator
