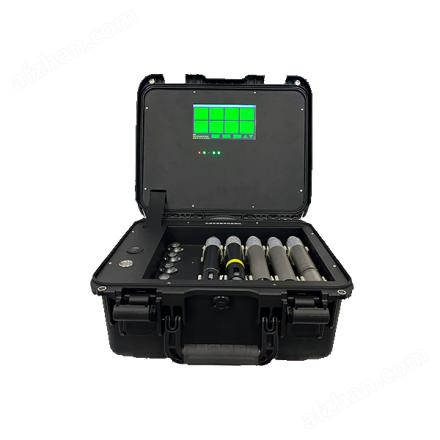

ZWIN-WQMS01008 Portable Water Quality Online Monitoring Instrument

ZWIN-WQMS01008 portable water quality online monitoring instrument can support all digital water quality analysis probes of our company, and has a complete external interface, which can easily realize sensor probe networking, remote control, fault diagnosis and other work. Adopting a portable design, the measurement is fast and accurate, with real-time digital display, making it easy to carry and complete on-site monitoring.

ZWIN-WQMS01008 Portable Water Quality Online Monitoring Instrument

Product Introduction:

The portable multi parameter water quality online monitoring instrument can support all digital water quality analysis probes of our company, and has a complete external interface, which can easily realize sensor probe networking, remote control, fault diagnosis and other work. Adopting a portable design, the measurement is fast and accurate, with real-time digital display, making it easy to carry and complete on-site monitoring.

Application areas:

Waterworks, water supply pipelines, secondary water supply for residential areas, swimming pools, rural drinking water, etc.

technologyparameter

Monitoring indicators: pH, dissolved oxygen, conductivity, turbidity, temperature, and other water quality probes;

Display interface: 7-inch touch screen (color); Resolution 800 * 480;

Transmission unit: RS485 Modbus RTU standard protocol, wireless network transmission;

Data interface: Multi channel design, standard configuration can connect up to 6 probes at once;

Output function: Supports exporting data;

Box material: ABS;

Protection level: enclosure IP65, sensor IP68;

Box size: 430 * 360 * 200 (mm);

Working voltage: DC12V;

Battery capacity: 104000mAh; Support USBcharge;

Dimensions (probe):Φ34 with a length of 205mm;
