ARCoptix spectrometer

　　ARCoptix spectrometer

The FT NIRSocket of ARCoptix benefits from its aligned interferometer and solid-state reference laser, with the FT NIRSocket measuring both intensity and wavelength scales. FT-NIRSocket is compatible with light sources and sampling accessories (such as fiber, colorimetric dish folders... usually used with array detector based near-infrared spectrometers).

ARCoptix is a near-infrared spectrometer with FT-NIR and FT-NIR-MIR spectral ranges from 900nm to 2500nm. New dual detector with spectral range from 900nm to 6000nm

Rocket "is a sturdy and durable FT-IR spectrometer with a small footprint. FTIR rockets can be used for free space measurements or for fiber optic application adapters via detachable fibers (included). This device is suitable for applications that require fiber coupling or any other special arrangements, such as infrared light source characterization.

feature

Compact (the world's smallest FTIR)

High resolution 4cm-1, optional up to 0.5cm-1

Provide Peltier cooling MCT detector

4 spectral ranges: 5000-1660cm-1 (2-6 μ m), 6600-1200cm-1 (1.5-8.5 μ m), 5000-830cm-1 (2-12 μ m) or 5000-650cm-1 (2-16 μ m)

USB connection

cost-effective

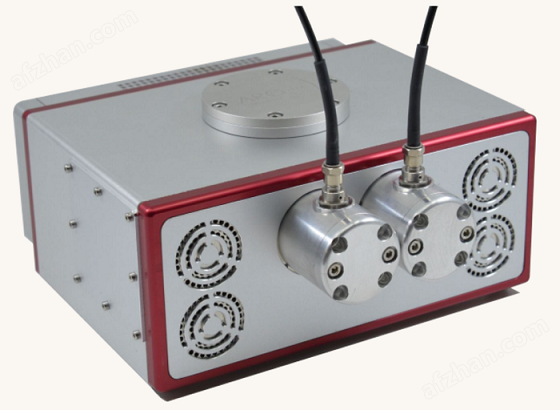

ARCoptix's FT-IR spectrometer is an all fiber replacement for our "Rocket" configuration. It has the same components as FT-NIR or FT-MIRRocket instruments, but adds an internally installed light source that can modulate the port before coupling the light to the output. Therefore, this architecture deals with external disturbances such as background thermal emission, as this parasitic light did not previously reach the detector through interferometers.

feature

Very suitable for using fiber optic probes for operation

Integrated solution: source, interferometer, detector, and fiber coupler

Compact fiber coupled FT-IR in the market

Provide TE cooled or liquid nitrogen cooled MCT detectors
