Ankerui ACR10R series power monitoring transformer

External switchable mutual inductanceRail type multifunctional power meter for instrumentsIt is suitable for energy-saving renovation projects in high energy consuming industries such as smelting, steel, welding, and semiconductors, as well as for power monitoring and demand side management of distributed photovoltaic grid connected cabinets. It has the characteristics of no need to dismantle the busbar, simple and convenient wiring, safe construction, saving users renovation costs, and improving efficiency. It integrates the measurement of all electrical parameters(Such as single-phase or three-phase current, voltage, active power, reactive power, apparent power, frequency, power factor)And electricity monitoring and assessment management. At the same time, it has multiple peripheral interface functions for users to choose from: withRS485Communication interface, usingMODBUS-RTUThe protocol can meet the needs of communication network management; With switch input and relay output, circuit breaker switching can be achieved“teleindication”and“remote control”The function adoptsLCDThe display interface allows for parameter settings and control through panel buttons, making it highly suitable for real-time power monitoring systems.

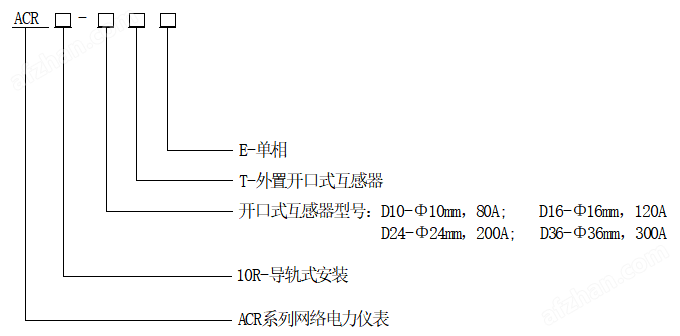

1. Product specifications

2.Product features

3. Technical Parameters

4. Dimensions and installation method
