Baohua PE100/PE300-TE Air Exhalation Bottle Positive Pressure Inflator Pump

Baohua PE100 and PE300 air respirator gas cylinder inflation pump (BAUER PE100/PE300) [186 Ma 6019 Science 6936]

BAUER PE series inflation pump is a German original high-pressure breathing air compressor designed specifically for filling air breathing apparatus cylinders, in compliance withDIN EN 12021Breathing air standards are widely used in fields such as firefighting, diving, shipbuilding, and industrial protection.

1Baohua PE100/PE300-TE Air Exhalation Bottle Positive Pressure Inflator PumpComparison Table of Core Technical Parameters

ParametersPE100 seriesPE300 series

displacement100 L/min 300 L/min

work pressure225 bar (default)/330 bar (optional) 225 bar (default)/330 bar (optional)

compression level3-level compression

Drive TypeSingle phase/three-phase motor (2.2-3 kW), gasoline engine (4.2 kW), three-phase motor (7.5 kW)

filtration systemStandard P11, optional P21 Standard P21, optional P31/P42

inflatable connector1 (G 5/8 'European standard interface) 2 (1 PN200/PN300 each)

weightAbout 39-44 kg, about 140 kg

size660 × 360 × 420 mm, approximately 1100 × 520 × 570 mm

cooling methodWind cold wind cold

lubricating oilBaohua Special Synthetic Oil Baohua Special Synthetic Oil

2、 Detailed explanation of product features

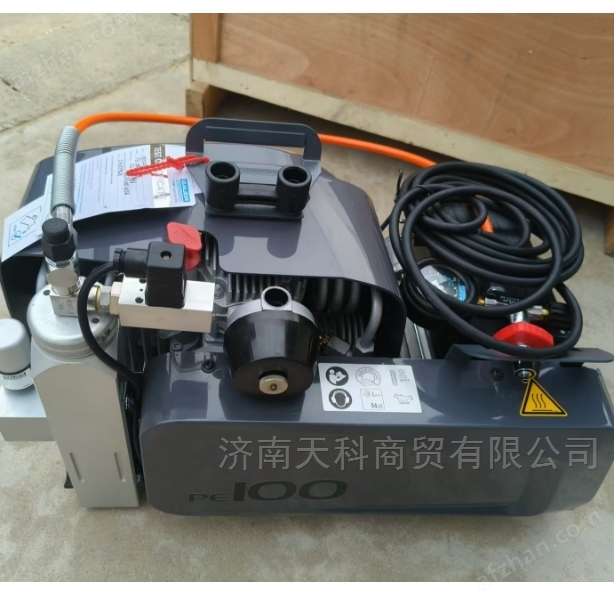

1. PE100 系列 （PE100-TE/PE100-TB）

positioningPE series small and lightweight models, suitable forStrong mobility and low trafficdemand scenario

Core strengthsCompact structure, easy operation, low maintenance cost, suitable for small fire stations, diving clubs, and individual users

Typical ApplicationsInflate the 6.8L air respirator cylinder and it can be filled in about 20 minutes (300 bar)

filtration systemP11 triple purification (dust removal, oil removal, water removal), processing capacity of 140 m ³, ensuring pure breathing air

security configurationTerminal pressure safety valve (330 bar), temperature monitoring, overpressure protection

2. PE300 series (PE300-TE)

positioning：High traffic professional levelInflatable equipment, suitable for high-frequency, multi cylinder simultaneous filling scenarios

Core strengthsDouble inflation head design, capable of inflating 2 gas cylinders simultaneously, increasing efficiency by over 50%

Filter upgradeP21 system adds carbon monoxide absorption function, P42 optional SUCURUS filter monitoring system (real-time monitoring of saturation status, automatic shutdown when exceeding limit)

industrial designHeavy duty chassis, reinforced cooling system, suitable for continuous high-intensity work

Typical ApplicationsLarge fire rescue centers, diving bases, and ship rescue stations can provide gas cylinder filling for multiple rescue teams in a short period of time

IIIBaohua PE100/PE300-TE Air Exhalation Bottle Positive Pressure Inflator PumpKey Differences and Selection Suggestions

Comparison itemsPE100PE300Selection Recommendation

trafficSmall (100 L/min) Large (300 L/min) Choose PE100 for individual/small teams, PE300 for large teams/high-frequency use

mobilityExcellent (<45 kg), average (≈ 140 kg), requires frequent movement to choose PE100, and fixed stations to choose PE300

Filling efficiencyLow (about 20 minutes for a single bottle) High (about 10 minutes for a single bottle when both bottles are filled simultaneously) Choose PE300 for emergency rescue and PE100 for daily training

Power demandLow (220V single-phase electricity is sufficient) High (380V three-phase electricity) No three-phase electric field selected PE100, industrial site selected PE300

4、 Key points of safety and maintenance

Breathing air quality assurance

It is necessary to use Baohua's original filter element and specialized synthetic oil, and replace them regularly (P11 filter element has a lifespan of about 140 m ³, P21 filter element has a lifespan of about 280 m ³)

Before inflating, check the air inlet environment to avoid inhaling toxic and harmful gases

Regularly check the quality of compressed air (CO, CO ₂, oil mist content) to comply with EN 12021 standard

Operational safety regulations

Before starting, check the oil level, pressure, and cooling system to ensure there are no leaks

During the inflation process, monitor the temperature (≤ 100 ℃) and provide automatic shutdown protection for overheating

Overpressure inflation is prohibited, and safety valves need to be regularly calibrated (once a year)

maintenance cycle

Daily: Clean the intake filter element and check the oil level after each use

Regular: Replace the oil filter and lubricating oil every 500 hours, and perform comprehensive maintenance every 1000 hours

Long term: Replace vulnerable parts such as piston rings and seals every 2000 hours

5、 Common Model Description

PE100-TEThree phase motor drive (3 kW), suitable for fixed locations

PE100-TWSingle phase motor drive (2.2 kW), suitable for environments without three-phase electricity

PE100-TBDriven by a gasoline engine (4.2 kW), suitable for outdoor and non powered scenarios

PE300-TEThree phase motor drive (7.5 kW), dual inflation heads, professional grade application

6、 Summary and Procurement Suggestions

PE100: Suitable forSmall users, mobile scenarios, limited budgetNeeds such as community fire stations, diving enthusiasts, and small factories

PE300: Suitable forProfessional team, fixed site, high traffic demandSuch as large fire rescue centers, diving bases, and shipping companies
