Charging pile application MID DC smart meter

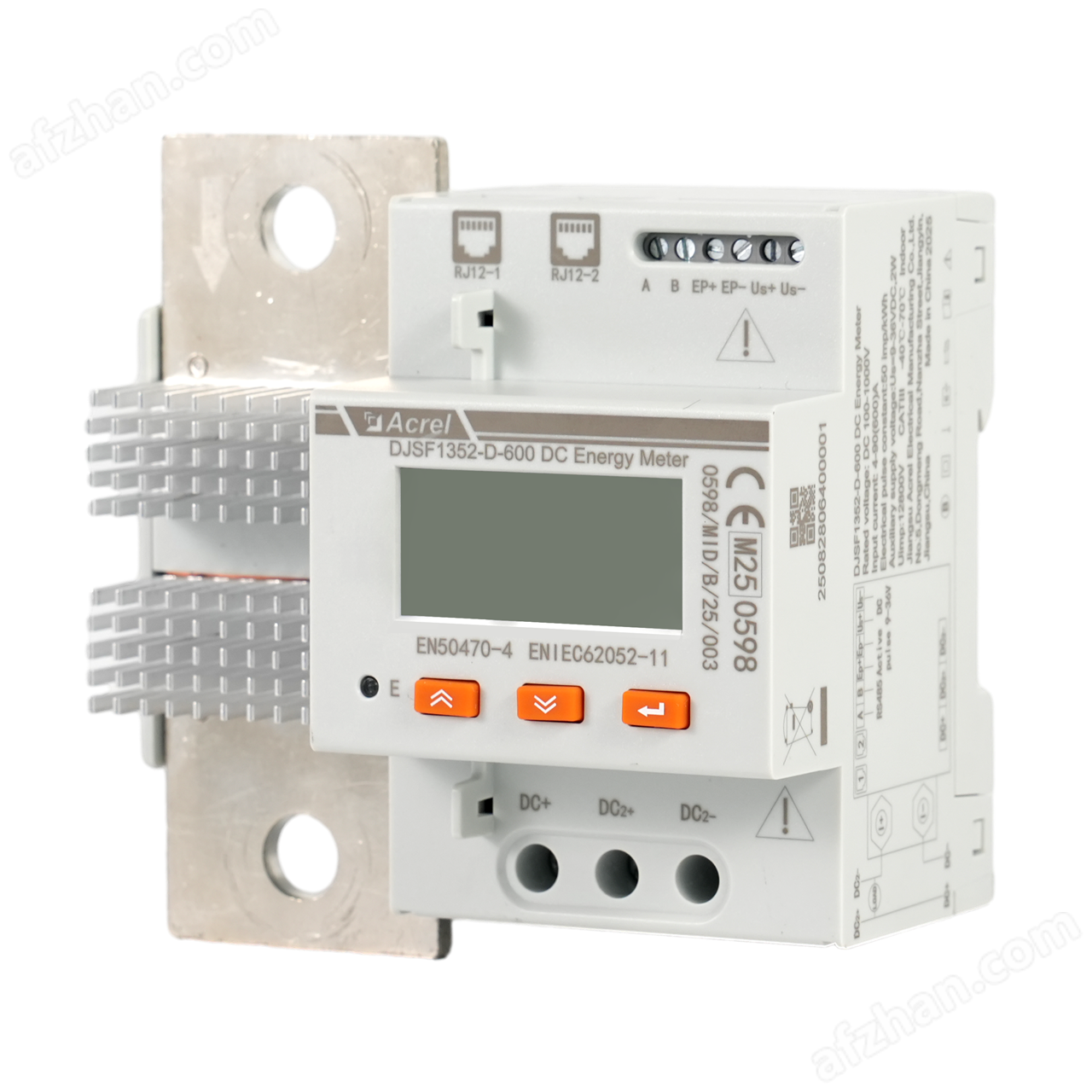

The DJSF1352-D-600 integrated DC intelligent energy meter (voltage up to 1000V, current up to 600A) adopts a shunt and energy meter integrated design, which has the characteristics of high measurement accuracy, small size, convenient wiring, strong communication compatibility, and rich functions. It meets the "JG1149-2022 Electric Vehicle Off board Charging Machine Measurement Verification Regulations" and has also obtained the MID certification for measuring instruments in the EU market.

1. Compact in size, easy to install

The DJSF1352-D series rail mounted DC energy meter adopts a splitter integrated design, with a volume only 1/2~1/4 of traditional split type meters, suitable for compact charging pile space, and adopts standard DIN35mm rail mounted installation.

2. High precision and high reliability metrology

The DJSF1352-D series has a DC measurement accuracy of Class B (1.0), a wide operating temperature range (-40 ℃~+70 ℃), humidity ≤ 95% RH, and an average time of ≥ 50000 hours, making it suitable for complex outdoor environments.

3. Comprehensive functionality and strong compatibility

The DJSF1352-D series DC metering instrument is equipped with multiple communication protocols such as Modbus RTU, DL/T 645-2007, DL/T698, etc. It can choose one second pulse output and one electric energy pulse output. The voltage input range is DC 0-1000V, and the current input supports up to 600A. The data recording and transmission meet the requirements of relevant national standards and are compatible with the charging requirements of the vast majority of mainstream electric vehicles.
