Equipped with a 6-point temperature measurement intelligent distribution control device

1、 Overview

In the power system, distribution cabinets are related to power supply safety and efficiency, but traditional distribution cabinets have two major hidden dangers: one is that key contacts are prone to overheating, causing fires or equipment damage; The second issue is the low efficiency of manual inspection, lagging data, and difficulty in precise operation and maintenance.With the development of the Internet of Things and intelligent sensing technology, an intelligent distribution control device with 6-point temperature measurement has been born, constructing an integrated safety management system of "prevention monitoring control" and promoting the intelligent upgrade of the distribution system.

The ASD series switchgear comprehensive measurement and control device is designed specifically for various indoor switchgear of 3-35kV, with powerful functions:

State visualization: The simulation diagram is intuitive, with clear indications, live display, and nuclear phase protection for safety;

Environmental regulation: automatic temperature and humidity control, fault alarm;

Circuit monitoring: indicating circuit status, measuring voltage, flashing prompt;

Wireless temperature measurement: accurately capture the temperature of key parts to prevent overheating;

Humanized design: automatic lighting, voice prompts;

Data communication: accurate measurement of electrical parameters, interface transmission of data.

2、 Usage scenarios

Medium and low voltage switchgear:Monitor the temperature of the busbar and cable joints to prevent poor contact or overheating caused by overload.

Distribution room/ring main unit:Real time monitoring of key equipment temperature to ensure power supply reliability.

Industrial automation:Monitor the temperature of equipment such as motors and transformers in high-temperature or harsh environments such as metallurgy and chemical engineering.

In the field of new energy:Monitoring the temperature of equipment such as combiner boxes and inverters in photovoltaic power generation and wind farms.

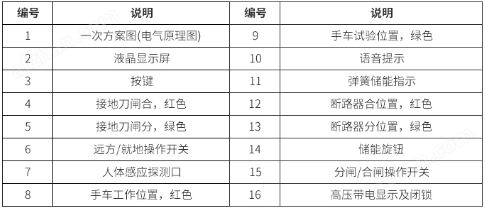

3、 ASD300 Front Panel Function Description

4、 Installation and wiring

4.1 Installation Hole Size

4.2 Installation guidance

5、 Conclusion

The intelligent distribution control device with 6-point temperature measurement not only significantly improves the safety and reliability of the distribution system through precise temperature monitoring and intelligent management functions, but also reduces the cost of manual inspection, promoting the transformation of distribution operation and maintenance from "passive response" to "active prevention". With the advancement of the "dual carbon" target and the construction of new power systems, such devices will play a greater role in the industrial, commercial, and new energy fields, becoming an important cornerstone for building a smart grid. In the future, with the integration of sensor technology, edge computing and communication, intelligent power distribution control devices will further develop towards high-precision, low-power and wireless, providing more solid technical support for energy transformation.
