External transformer electric meter for new energy scenarios

Tang Xueyang

Ankerui Electric Co., Ltd. Shanghai Jiading 201801

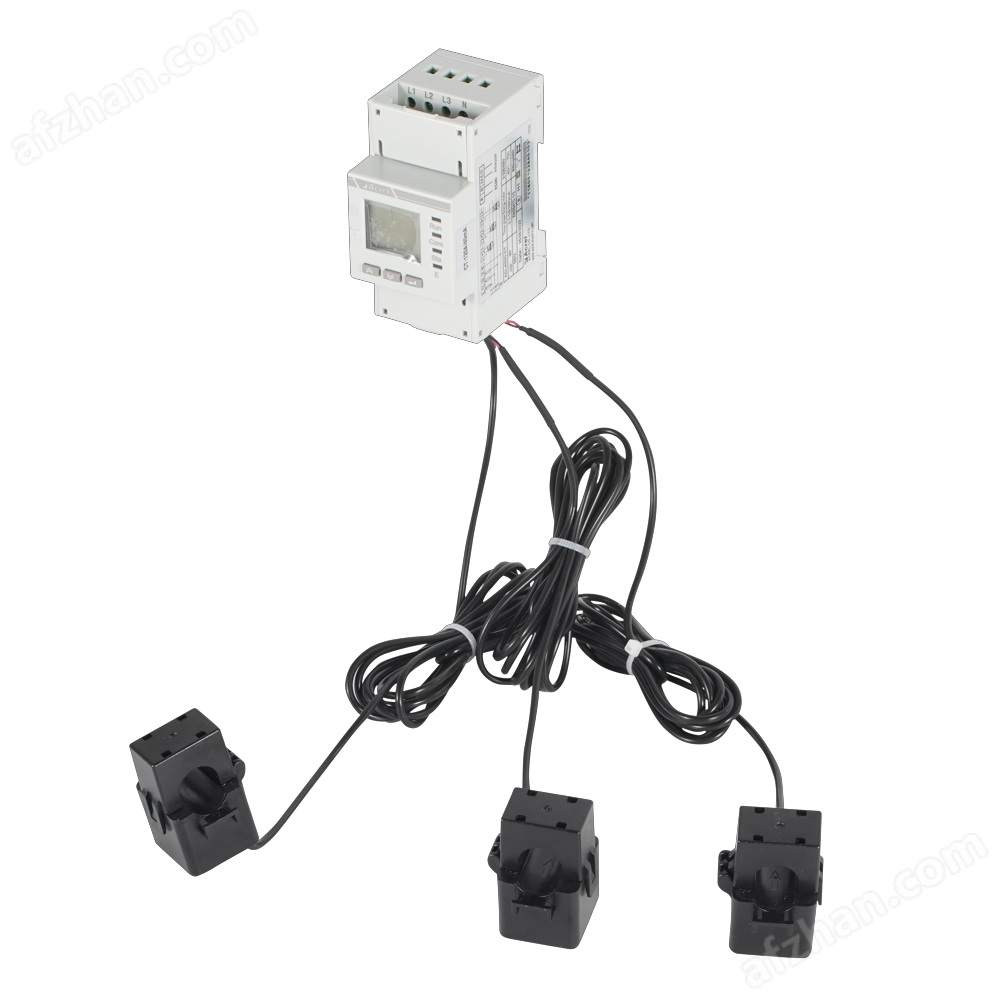

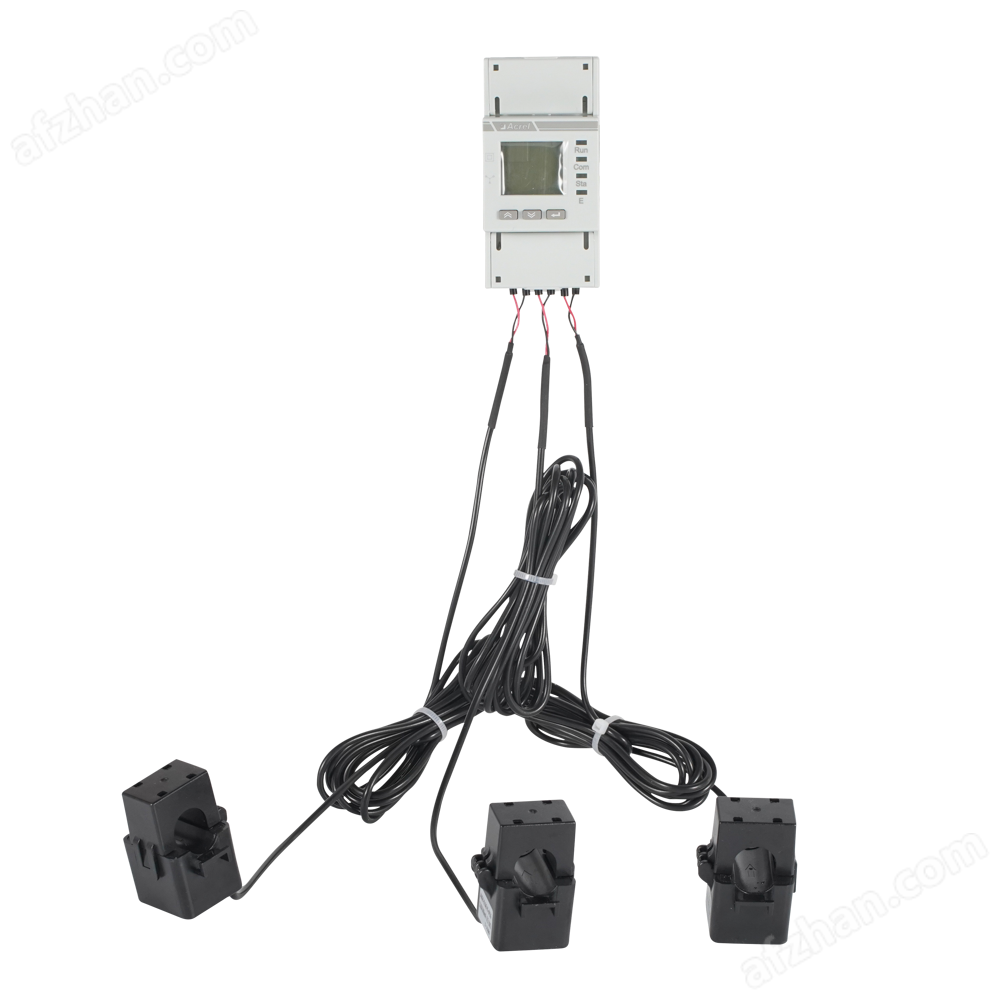

Ankerui ADL200N-CT single-phase energy meter,With CE/UL dual certificationAccurately matching European and American standards, becomingOverseas Household Storage SolutionThe 'core weapon'. The ADL series rail type multifunctional energy meter is an intelligent instrument designed mainly for new energy generation systems such as photovoltaic grid connected systems, micro reverse systems, energy storage systems, and AC coupling systems. The product has advantages such as high accuracy, small size, fast response speed, and easy installation. It has the ability to sample, measure, and monitor power parameters, communicate with inverters or energy management systems (EMS), and achieve functions such as preventing backflow, adjusting power generation, and battery charging and discharging based on real-time power and accumulated energy. It can measure in both directions and achieve distributed photovoltaic energy management for household use. Whether it's home rooftop photovoltaics, energy storage stations, or micro inverter systems, ADL200N-CT can easily handle them, helping you seize the opportunity in overseas markets!

Main core advantages

High precision bidirectional measurement, more intelligent anti backflow

It can measure the current combination of active energy, forward active energy, reverse active energy, forward reactive energy, and reverse reactive energy to avoid losses caused by energy feedback to the grid and improve system efficiency. Seamless communication with energy management systems (EMS) and inverters, dynamically adjusting power generation, optimizing battery charging and discharging strategies, and achieving maximum energy utilization.

Multiple international certifications

Through multiple international certifications such as CE, UL, FCC, MID, RoHS, etc., it meets the market access requirements in Europe and America.

Small size, fast response

Rail type design, compact size, plug and play, saving space; The RS485 communication interface supports Modbus RTU protocol, with strong compatibility and easy access to BMS systems.

100ms response timeFaster implementation of reverse flow detection, providing ample time for inverter power regulation and strong adaptability, covering multiple scenarios such as photovoltaic grid connection, energy storage systems, AC coupling, micro reverse systems, etc. From household rooftops to small industrial and commercial power stations, one meter can handle bidirectional metering and energy management.

Application Scenario:

Let green energy "manifest" in household energy storage: Paired with solar panels and energy storage batteries, real-time monitoring of power generation and consumption, low valley storage, high peak discharge, saving up to 30% of electricity bills. Industrial and commercial microgrid: Multiple electricity meters are networked to achieve centralized management of distributed energy, anti backflow function ensures grid safety, and reduces operation and maintenance costs.

overseas project：

UL certification ensures market access in North America, while CE certification covers Europe, helping companies quickly expand their global business.

Industrial power distribution systemMonitor the electricity consumption of the production line and optimize load distribution.

commercial buildingReal time tracking of energy consumption in air conditioning, lighting, and other areas to assist in energy-saving management.

data centerEnsure the power supply safety of key equipment and prevent overload faults.

The ADL200N-CT, with its core advantages of high integration, precise measurement, and convenient communication, is an ideal choice for improving the intelligent management level of power systems, especially suitable for scenarios that require compact installation and efficient data collection.

Overview of 1 Rail Energy Meter

The ADL series rail type multifunctional energy meter is an intelligent instrument designed mainly for new energy generation systems such as photovoltaic grid connected systems, micro reverse systems, energy storage systems, and AC coupling systems. The product has advantages such as high accuracy, small size, fast response speed, and easy installation. It has the ability to sample, measure, and monitor power parameters, communicate with inverters or energy management systems (EMS), and achieve functions such as preventing backflow, adjusting power generation, and battery charging and discharging based on real-time power and accumulated energy. It can measure in both directions and achieve distributed photovoltaic energy management for household use.

2 Model Description

3 Function List

Table 1 Function Description List

4 Technical parameters

6 Communication Instructions

The RS485 communication interface of the instrument supports MODBUS-RTU communication protocol, and the baud rate of the communication port can be set between 1200bps, 2400 bps, 4800bps, 9600bps, 19200 bps, and 38400 bps, with no checksum.

The RS485 communication port of the instrument requires the use of shielded twisted pair cables for connection. When wiring, the layout of the entire network should be considered, such as the length and direction of communication cables, the position of the upper computer, the matching resistance at the end of the network, communication converters, network scalability, network coverage range, and electromagnetic interference in the environment, all of which need to be comprehensively considered.

Note:

1. Strictly follow the requirements for wiring engineering construction;

2. For instruments that do not require communication temporarily, they should be connected to the RS-485 network for diagnosis and testing purposes;

3. When connecting RS-485 cables, try to use dual color twisted pair cables, and connect all 485 communication ports with the same color on the "A" end and another color on the "B" end.

4. The RS-485 bus (from the communication port of the upper computer to any connected instrument terminal communication port) shall not exceed 1000 meters in length.

03 Ankerui Energy Storage Meter

Ankrui actively promotes overseas business and new energy business, and has launched a series of smart meters that meet the needs of the European and American markets.
