Juice tea beverage electric heating plate sterilizer
NegotiableUpdate on 03/27
- Model
- Nature of the Manufacturer
- Producers
- Product Category
- Place of Origin
Overview
The electric heating plate sterilizer for juice and tea beverages is a one-time sterilization equipment designed for juice, tea beverages, or similar liquid materials. Different process combinations can be designed according to users' different process requirements for heating, sterilization, insulation, and cooling of different materials to meet the process requirements.
Product Details
1、 Classification of electric heating plate sterilizers for fruit juice, tea and beverage
Automatic configuration: Using computer program control PLC technology, process production operation control is carried out according to the set process requirements. It comes with a CIP cleaning program for automatic cleaning.
Semi automatic configuration: The process of operation and running is semi automatically controlled. The operator can control the pump, valve, and reflux function from the control panel. Maintain sterilization temperature through temperature controlled PID. The sterilization temperature is continuously recorded on the recorder.
2、 Application of electric heating plate sterilizer for juice, tea and beverage
Plate sterilizer is used for the heating, sterilization, insulation, and cooling of thermosensitive liquids such as fresh milk, fruit juice beverages, and alcoholic beverages.
3、 Main configuration of juice tea beverage electric heating plate sterilizer
This unit consists of material balance and conveying system, plate heat system, material piping system, hot water piping system, steam piping system, hot water heating system, material automatic reflux system, temperature automatic control and electrical control system, etc.
4、 Characteristics of electric heating plate sterilizer for juice, tea and beverage
1. The material and heating medium are heated through non-contact heat exchange;
2. Short sterilization time;
3. The whole machine is made of food grade stainless steel material;
2. Short sterilization time;
3. The whole machine is made of food grade stainless steel material;
5、 Technical parameters of electric heating plate sterilizer for juice tea beverage
Process parameters: 5 ℃ → 65 ℃ homogenization → 95 ℃ → 140 ℃ (4S) → 25 ℃
Medium: Ice water 1:1 (2 ℃) Cooling water 1:1 (25 ℃)
|
Model specifications
|
capacity
(t/h)
|
Steam energy consumption
(kg/h)
|
Steam pressure
(bar)
|
electric power
(kw)
|
External dimensions
(L×W×H)
|
weight
(kg)
|
Pipe diameter (Φ)
|
||
|
material
|
steam
|
medium
|
|||||||
|
HE-BR0.1-NN-1
|
1
|
40
|
5.0
|
3.5
|
1.8×1.4×1.8
|
840
|
25
|
DN25
|
25
|
|
HE-BR0.1-NN-1.5
|
1.5
|
60
|
5.0
|
3.5
|
1.8×1.4×1.8
|
880
|
25
|
DN25
|
25
|
|
HE-BR0.25-NN-2
|
2
|
80
|
5.0
|
4.1
|
1.8×1.6×2.0
|
910
|
38
|
DN25
|
38
|
|
HE-BR0.25-NN-3
|
3
|
120
|
5.0
|
4.1
|
1.8×1.6×2.0
|
980
|
38
|
DN25
|
38
|
|
HE-BR0.25-NN-4
|
4
|
160
|
5.0
|
4.1
|
2.0×1.6×2.0
|
1050
|
38
|
DN25
|
38
|
|
HE-BR0.25-NN-5
|
5
|
200
|
5.0
|
4.1
|
2.3×1.6×2.0
|
1130
|
38
|
DN32
|
38
|
reminder:
1. The parameters of the plate sterilizer in the chart are for reference only (subject to the actual product). If the customer has other requirements, please provide them.
2. The process parameters required for selecting a plate sterilizer include material properties, sterilization process, special requirements, etc.
3. Auxiliary equipment: gas storage tank, air compressor, water storage tank, boiler. (To be customized by the customer)
6、 Finished product drawing of electric heating plate sterilizer for juice tea beverage
7、 Huihe Strength Display
Huihe Design Team

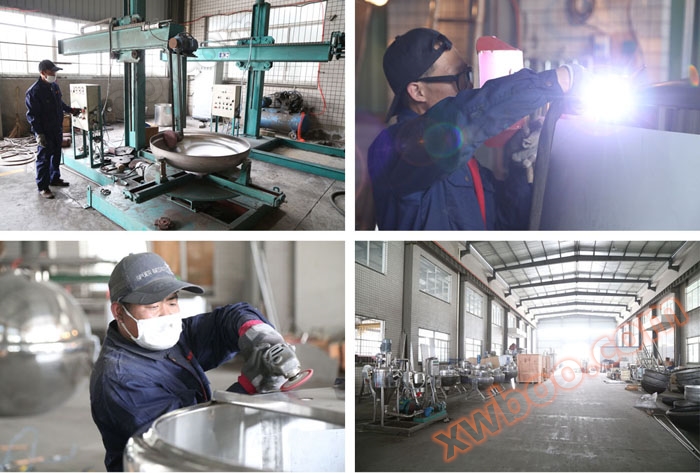

Huihe Factory Display
Case Study of Stainless Steel Containers
6 reasons to choose Huihe
1. Huihe Company has sales, engineering, and after-sales departments, all of which are dedicated to serving you;
2. What we are fighting for is not price, but quality and friendly service;
3. Our salespeople and engineers will patiently listen to your requirements and tailor materials for you;
4. Our after-sales colleagues will serve you from your order placement to actual production;
5. 15 years of industry experience;
6. On site visits to factories and offices.
8、 Introduction to Product Quality and Service of Huihe
The stainless steel container products produced by Huihe are packaged with shockproof foam paper or woolen bags or wooden boxes, so that the packaging can protect the products from damage during logistics.
