Zongzi sandwich pot
NegotiableUpdate on 03/27
- Model
- Nature of the Manufacturer
- Producers
- Product Category
- Place of Origin
Overview
Zongzi sandwich pot is made of 304 or 316 stainless steel, and is equipped with pressure gauge, safety valve, electric cabinet, exhaust valve, steam trap and other accessories.
Product Details
1、 Classification of Zongzi sandwich pot
1. Divided by structural form:tilting-typeZongziJacketed kettle、verticalZongziJacketed kettlestructure
2. Divided by heating method:electrical heatingZongziJacketed kettle、steamZongziJacketed kettle、gasZongziJacketed kettle
On site demonstration of sandwich pot food processing
2、 Structure and material of Zongzi sandwich pot
ZongziA sandwich pot consists of a pot body and a tilting frame or support angle; The pot body is a double-layer structure composed of an inner and outer spherical pot body, with a middle layer filled with thermal oil or water.
Pot body material:
(a) Inner pot body made of stainless steel (SUS304/SUS316L), outer pot body made of carbon steel (Q235-B), coated with anti rust paint on the outside;
(b) The inner and outer pot bodies are made of stainless steel (SUS304/SUS316L).
3、 Use of Zongzi sandwich pot
ZongziSandwich pots are used for the processing and production of foods such as candies, dairy products, pastries, candied fruits, canned goods, and braised products.
4、 Features of Zongzi sandwich pot
ZongziThe sandwich pot has a large heating area, uniform heating, high thermal efficiency, short liquid boiling time, easy temperature control, pressure, and multiple heat sources to choose from (electricity, steam, gas).
5、 Technical Parameters of Zongzi Sandwich Pot
|
Nominal volume
|
50
|
100
|
200
|
300
|
400
|
500
|
600
|
800
|
1000
|
|
Caliber (mm)
|
Φ600
|
Φ700
|
Φ800
|
Φ900
|
Φ1000
|
Φ1100
|
Φ1200
|
Φ1300
|
Φ1400
|
|
Pot depth (mm)
|
400
|
450
|
530
|
630
|
680
|
730
|
780
|
830
|
900
|
|
Heat transfer area (m2)
|
0.45
|
0.58
|
1.12
|
1.42
|
1.75
|
2
|
2.3
|
3.2
|
3.9
|
|
Electric heating power (kw)
|
9
|
9
|
15
|
18
|
18
|
24
|
24
|
27
|
30
|
|
Thermal oil volume (L)
|
30
|
36
|
45
|
60
|
70
|
80
|
100
|
200
|
250
|
|
Working pressure
|
≤ 0.09Mpa (design can be adjusted according to customer usage)
|
||||||||
reminder:
1. The working pressure of the interlayer is ≤ 0.09Mpa. If the customer has special requirements, it can be customized according to the requirements.
2Jacketed kettleThe process parameters required for selection include material properties, working pressure, working temperature, special requirements, etc.

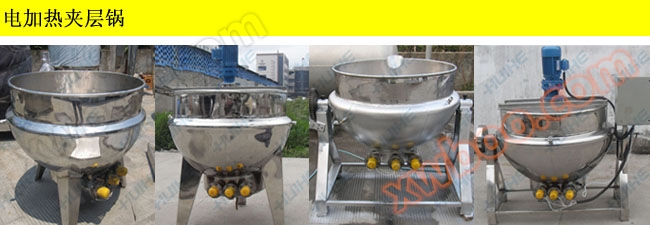

6、 Finished product drawing of sandwich pot
want to knowHuihe MachinerybuyJacketed kettleCustomers please click on the following link:
http://www.hhmachine.cn/partners_info.asp?hid=27
The netizens who read this article also read:
1The difference between steam jacket pot, electric heating jacket pot, and gas jacket pot
7、 Huihe Strength Display
Huihe Design Team

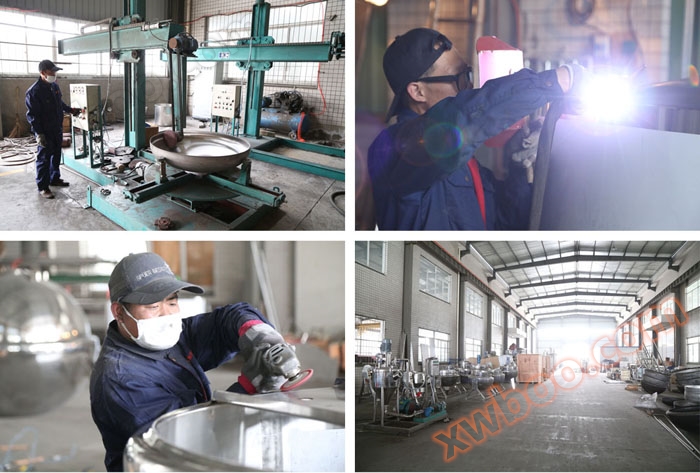

Huihe Factory Display
Case Study of Sandwich Pot
6 reasons to choose Huihe
1. Huihe Company has sales, engineering, and after-sales departments, all of which are dedicated to serving you;
2. What we are fighting for is not price, but quality and friendly service;
3. Our salespeople and engineers will patiently listen to your requirements and tailor materials for you;
4. Our after-sales colleagues will serve you from your order placement to actual production;
5. 15 years of industry experience;
6. On site visits to factories and offices.
8、 Introduction to Product Quality and Service of Huihe
The stainless steel container products produced by Huihe are packaged with shockproof foam paper, woolen bags or wooden boxes, which can protect the products!
