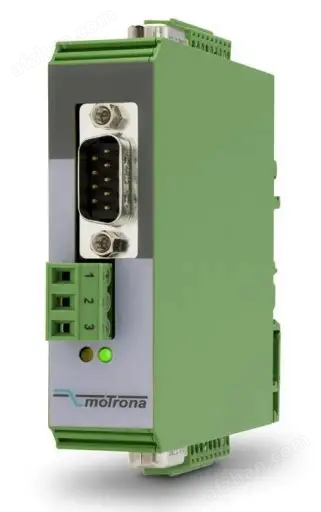

Motrona's MC800 Driver Controller

Motrona's MC800 Driver Controller

Motrona's motion controllers have been applied in various fields of modern driving technology. The firmware library contains optimization routines suitable for applications such as driver synchronization, indexing or intermittent printing, label printing, rotary cutting machines, flying scissors, and eccentric scissors.

Motrona-MC800 is an upgraded multi axis universal motion drive controller of MC700, with the core highlight of integrated series drive control (TandemDrive), supporting dual independent drive power output, adapting to heavy load high acceleration requirements, focusing on high-frequency signal processing, flexible bus and firmware adaptation, suitable for industrial scenarios such as dynamic cutting and synchronous drive, DIN rail installation, compatible with multiple encoders and sensors.

1、 Core Features

High cut-off frequency: The MC800 driver controller has a very high cut-off frequency of up to 2MHz, which can handle high-speed and high-precision motion control tasks, meeting the stringent dynamic performance requirements of high-speed motors and other equipment.

Flexible bus architecture: supports multiple fieldbus interfaces, such as CANopen、CC-Link、DeviceNet、EtherCAT、ModbusTCP、PROFIBUS、PROFINET、SERCOS-III Etc., facilitating seamless integration with various industrial automation equipment.

Multi axis control capability: The MC800 drive controller can simultaneously control multiple motion axes, achieving complex motion trajectory planning, and is suitable for application scenarios that require multi axis collaborative work.

Integrated series drive: The MC800 driver controller integrates a series drive controller, which can achieve shaft acceleration requirements by distributing power between two independent drivers, improving the overall performance and stability of the system.

2、 Typical application scenarios

Dynamic cutting machinery: flying shear, rotary cross cutting machine, high-speed saw cutting, series drive ensures high acceleration cutting accuracy, compatible with CT803 firmware.

Heavy duty synchronous drive: Large winding machine, stamping line, gantry shaft, dual drive load sharing to improve acceleration and positioning accuracy, compatible with FS801 firmware.

Packaging printing and slitting: Printing machine color matching, slitting machine length closed-loop, encoder high-frequency input+analog setting, ensuring consistency between printing and cutting.

Multi axis collaborative production line: handling/positioning for semiconductor/electronic manufacturing, compatible with SinCos/SSI encoders, suitable for compact installation in clean workshops.

3、 Technical specifications and advantages

Power requirements: The power input voltage range of the MC800 driver controller is 18~35VDC, which can adapt to different power environments.

Input/output configuration: The MC800 driver controller has multiple control input and output ports, supporting multiple signal formats such as HTL, RS422, SSI, etc., making it easy to connect with various encoder and sensor systems.

Easy to parameterize: The MC800 driver controller uses free Windows operating software, allowing users to easily set and debug parameters, reducing the difficulty and cost of use.

High reliability: The MC800 driver controller adopts a compact housing design and can be installed on a 35mm DIN rail, complying with the EN60715 standard, with high reliability and stability.
