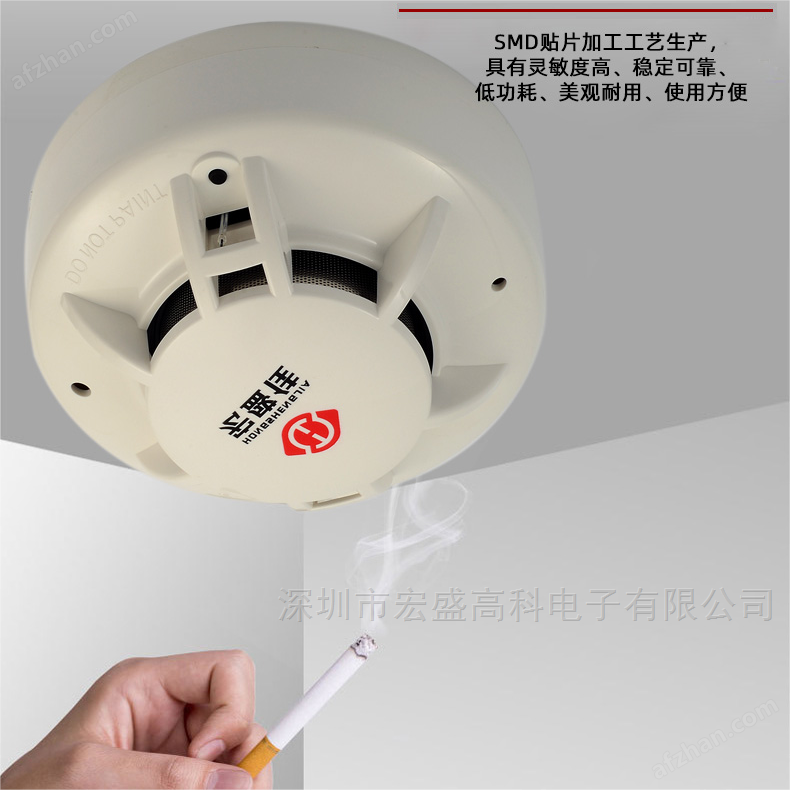

New national standard composite temperature and smoke sensing 2-in-1 detector sensor

NegotiableUpdate on 02/24

Model

Nature of the Manufacturer: Producers

Product Category

Place of Origin

Online Consult

Overview

The new national standard composite temperature and smoke detector sensor JTY-GM-HA211-RS485 networked temperature and smoke fire detector (hereinafter referred to as the detector) is suitable for fire pre alarm in civil and industrial places such as box transformers, cabinets, substations, warehouses, and motor rooms. The detector has the characteristics of high sensitivity, stability and reliability, low power consumption, beauty and durability, and easy use, and can be used in conjunction with security systems.

Product Details

New national standard composite temperature and smoke sensing 2-in-1 detector sensorJTY-GM-HA211-RS485Networked temperature and smoke fire detectors(Hereinafter referred to as detector)Suitable for fire prediction and alarm in civil and industrial places such as box transformers, cabinets, substations, warehouses, and motor rooms. The detector has the characteristics of high sensitivity, stability and reliability, low power consumption, beauty and durability, and easy use, and can be used in conjunction with security systems.

performance parameters

Alarm sound: ≥80dB

Power supply:DC9V～DC28V

Current: Static current ≤200uA

Alarm current ≤45mA

Operating Temperature -20℃~+60℃

Enhanced working temperature: -40℃ +80℃

Alarm temperature:57-60Customized alarm temperature: ℃70℃ 80℃

80℃ Relative humidity: ≤95%RH(40℃±2℃)

Smoke sensitivity: 1.06±0.26%FT .0.10dB/m~0.3 dB/m

Compliant with standards:GB4715-2024 GB4716-2024

Communication interface:RS-485 switch quantity

Communication protocol:Modbus-RTU

Belonging to shielding cover,Anti RF interference(20V/m~1GHz)

Self check: Press the detection button,detectorLEDAlways on, while sending out a report

New national standard composite temperature and smoke sensing 2-in-1 detector sensor

Police sound system (note: self-test only checks the internal functions of the detector itself, and there are some issues during self-test)RS485Signal output). Work: Under normal circumstances,The detector is approximately every 6 The second indicator light will flash once. The detector automatically detects the smoke concentration in the surrounding environment,And automatically compensate for sensitivity based on the usage environment conditions. When the smoke concentration approaches the alarm value, the detector accelerates the intelligent calculation of the smoke concentration trend,At the same time, the alarm indicator light starts flashing. If the calculation result reaches or exceeds the alarm value,The detector begins to sound and light an alarm. When the smoke concentration in the surrounding environment drops below the alarm value,The detector automatically returns to normal working condition. When the on-site temperature of the detector reaches 57 After the temperature drops, the detector indicator light starts flashing when the temperature on site is below57The synchronous detector automatically returns to normal working condition.RS-485Communication: Adopting standardsRS-485Communication interface, communication baud rate can be selected as:2400bpsThe4800bpsThe9600bpsThe19200bps, default to4800bps.Modbus-RTUProtocol: The address of the alarm status register is 03Is it using functionality 03Read, status is“0”Or“1”, often open（“1”To be normal“0”For alarm purposes, normally closed（“0”To be normal, “1”For alarm purposes.
