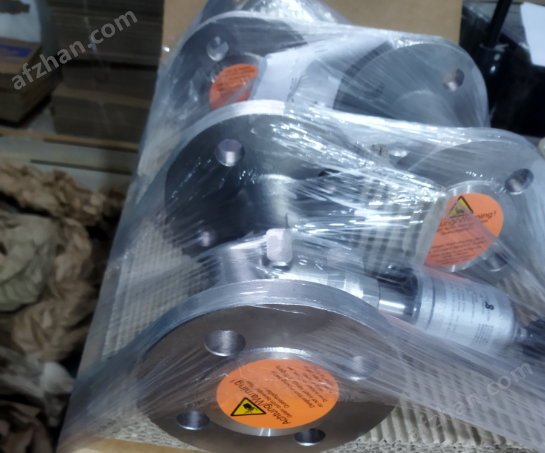

Schubert Salzer 7010 angle seat valve

Schubert Salzer 7010 angle seat valve

Schubert Salzer is a century old German enterprise specializing in fluid control and regulation technology. Its core business covers industrial control valves, flow meters, and other products, known for high precision and reliability.

Schubert&Selzer 7010 angle seat valve is a high-performance pneumatic angle seat valve with features such as compact design, high flow rate, temperature and pressure resistance, fast switching, high sealing performance, and flexible configuration. It is suitable for various industrial fields such as chemical production, food processing, steel, paper, etc.

Only high temperature and pressure levels among similar products. Pneumatic action for high cycle applications. There are multiple fast delivery options to choose from. Designed for various aggressive media including fluids, gases, and vapors.

Material

Stainless steel CF8M

Bronze Medal 5 (RG5)

Temperature:

Medium temperature ranges from -22 ° F to 338 ° F

The application temperature range is -148 ° F to 428 ° F

Core strengths

High frequency durability: The valve core is made of wear-resistant stainless steel and optimized for sealing. It can switch more than 1 million times and withstand slight pollution media.

Low retention and easy maintenance: The corner seat design has no dead zone, and the valve body can be left in the pipeline during maintenance, with only the actuator and plug removed.

High flow rate+low flow resistance: polished flow channel, high Cv value, suppresses water hammer and vibration.

Sanitary adaptation: electrolytic polishing, no retention, easy to clean, suitable for pharmaceuticals/food/beverages.

Flexible customization: oil-free/PTFE free/silicon free versions, suitable for special media such as oxygen/ozone

Ordering Example

7010/025V1DA021--2-- S --92: DN25, DIN11850 welded end, stainless steel valve body, sanitary grade, spring closed, with limit switch

Typical Applications

Industry: tire vulcanizing machine, steam system, chemical fluid switching, vacuum working condition (low 0.001 barabs).

Hygiene: pharmaceutical ingredients, food filling, CIP/SIP cleaning system.

　　Schubert&Selzer 7010 angle seat valve due to its high performance and reliabilitySuitable for multiple scenarios such as food and beverage, pharmaceutical, chemical and petrochemical, HVAC, automated production lines, and tire production. The specific analysis is as follows:

Food and beverage industry: The 7010 angle seat valve can be used to control the transportation and filling of various liquids, such as controlling the flow of malt extract and hops solution during beer brewing, and accurately controlling the filling volume and speed of beverages on the beverage filling line. Its materials that meet food hygiene standards and good sealing performance ensure the safety and quality of food and beverages.

Pharmaceutical industry: The pharmaceutical industry has high requirements for valve hygiene, precision, and reliability. The 7010 angle seat valve can be used in pharmaceutical production for drug delivery, ingredient preparation, and other processes. It can accurately control the flow of drug, prevent contamination, meet the requirements of aseptic operation in the pharmaceutical process, and ensure the quality of drugs.

Chemical and petrochemical industry: 7010 angle seat valve can be used to control the flow rate, pressure, and temperature of various chemical liquids and gases, ensuring the stability and safety of the production process. For corrosive chemical media, this valve can operate stably for a long time in harsh chemical environments due to its corrosion-resistant materials and good sealing performance.

HVAC system: 7010 angle seat valve is used to control the flow of hot water, cold water, steam and other media. Its high flow coefficient and fast switching performance can effectively regulate temperature and humidity, meet the environmental requirements of different areas in buildings, and improve energy utilization efficiency.

Automated production line: In automated industrial production lines, 7010 angle seat valves are widely used in various fluid control systems. For example, in painting production lines in automobile manufacturing, cleaning and electroplating production lines in electronic component production, etc., automatic control of valves is achieved through pneumatic or electric actuators to improve production efficiency and product quality.

Tire production: Tire production requires high control of valve valves, and the application of control valves on curing presses is crucial for forming valves, external pressure plates, and jacket valves. The 7010 angle seat valve, with its high control accuracy and long service life, can shorten the curing cycle, improve productivity, and reduce waste. Meanwhile, its easy to maintain feature also reduces production costs.
