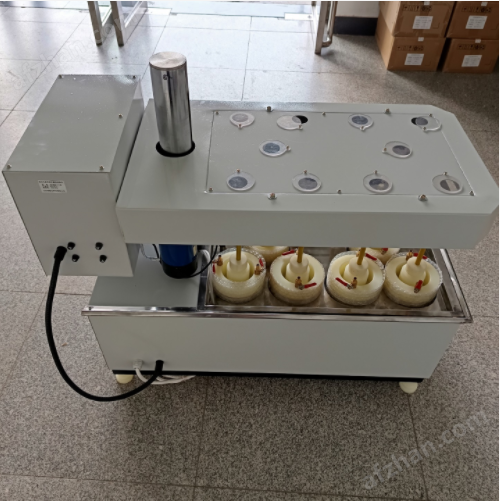

Sealed rotary hanging plate corrosion tester M61RCC - Ⅲ M

Sealed rotary hanging plate corrosion tester M61RCC - Ⅲ M

This instrument is mainly suitable for evaluating the performance of corrosion inhibitors filled with other gases in media, and can also be used in other media. Under negative pressure or pressure, this sealing device can meet the safety requirements for harmful gas testing.

Sealed rotary hanging plate corrosion tester M61RCC - Ⅲ M

Instrument technical specifications
1. Working voltage: 220V ± 10% 50HZ ± 5%
2. Whole machine consumption | power consumption | about 2-3KVA
3. Temperature control range: 20 ℃ -80 ℃ ± 0.2 ℃
4. Speed: 40 RPM -150 RPM ± 0.5 RPM
5. Number of test sealing device beakers: 10 sets
6. Sealing device working pressure range: -0.1~0.1Mpa
7. Sealing device transmission mode: coupling transmission
8. Dimensions (length, width, height): 1000 × 600 × 1000mm
9. Equipment weight: approximately 80Kg

Sealed rotary hanging plate corrosion tester M61RCC - Ⅲ M

Instrument structure and characteristics
The instrument adopts an equal weight cantilever electric | lifting | lowering structure, and the sealed beaker is made of | insulating | edge material, which can work under vacuum or pressure.
Due to the presence of 10 sets of rotating suspension brackets, the instrument can be used for both repeated experiments with the same configuration and experiments with different concentrations and configurations. As a component of the instrument, constant temperature, rotation, and device have taken some measures.
This instrument has low noise, small footprint, and is easy to operate and maintain. It is an instrument for circulating cooling water testing.
1. Install 10 sets of hanging bracket on the platform, divided into two groups, driven by speed regulating motors and non-contact speed measurement by Hall elements. Two sets can be used at the same speed or work at different speeds, with continuously adjustable speeds. Due to the use of Hall element speed measurement.
2. Instrument box: The main electrical control system is installed inside the instrument box, and the instrument switch indicator lights are all installed on the panel, making the structure compact and easy to operate and maintain. The temperature display meter and speed display both use digital display instruments.
3. Guide post: Electric screw rod hydraulic push rod for self movement, lifting, and lowering.
4. Constant temperature water bath: The water bath has a volume of 600 × 500 × 260mm and is equipped with 2-3KW electric heating rods and temperature measuring devices.
5. Temperature measuring resistor: Platinum resistor is used
6. Constant temperature, using a ventilation tube to blow in air and promote water circulation
7. The beaker is 2000ml, and the rotating rod is synchronously driven by a synchronous wheel
