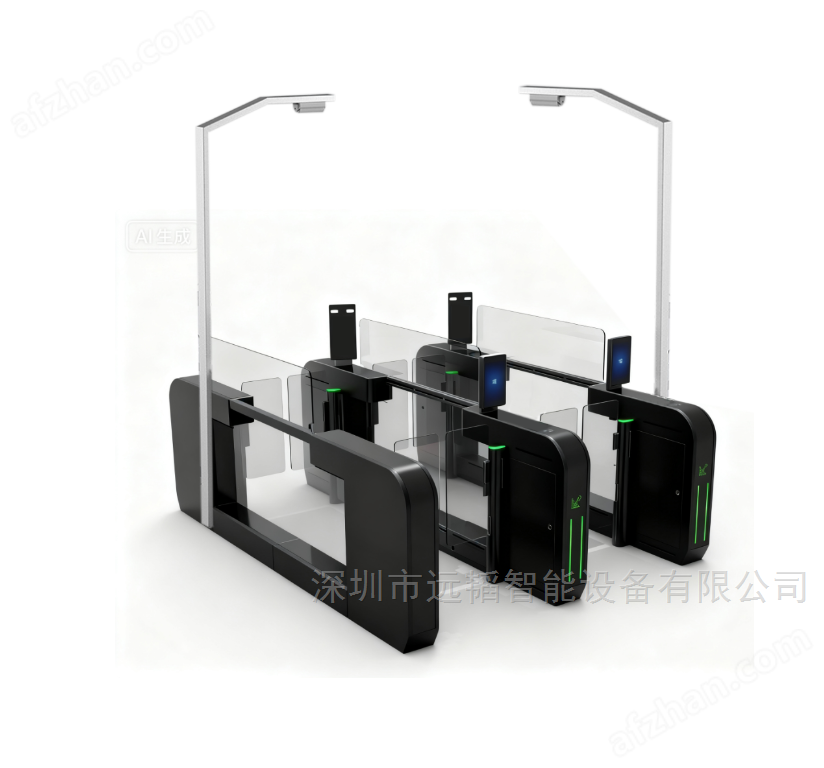

AI camera anti tailgating AB door quick pass door swing gate

AI camera anti tailgating AB door quick pass door swing gate

AI camera anti tailgating AB door quick pass door swing gate

bridge typeswing gate

bridge typeSwing brake is a commonly used swing brake, which includes voice swing brake and anti-collision swing brake. Customers can choose according to their requirements. Voice swing brake upgrades the swing brake mechanism and electrical control, and the mechanism undergoes heat treatment to improve its service life. Voice prompts enhance the processing capability of the swing brake motherboard. Ensure good synchronization of the swing gate. Operated on the LCD screen, easy to use. There are two types of anti-collision swing brakes: ordinary anti-collision swing brakes and anti-collision swing brakes. Ordinary anti-collision swing brakes are connected to the movement and swing arm with a mechanical flange, which uses spring pressure to overcome friction and achieve anti-collision. After the swing arm deviates, it is manually reset to improve the service life of the swing brake, so as not to bend the swing arm or damage the movement. The anti-collision swing brake is a product in swing brakes, with an encoder and solenoid valve clutch, encoder limit, solenoid valve clutch braking. After the swing arm deviates from the position, the external force is eliminated and the swing arm automatically resets. It has a high degree of intelligence and a memory function, greatly improving the service life of the swing brake. The overall quality of the whole machine is stable, the price is favorable, and it is easy to use. It has won high praise from users. The swing brake solves the problem of anti-collision and is not difficult to use. It is widely used. The most reliable product for consumers

Functional Features
1）swing gateEquipped with fault self checking and alarm prompt functions, convenient for users to maintain and use;
2) The operating status of programmable devices can be accessed through the built-in small keypad on the main control board; The voice motherboard has an LCD display screen, which has a Chinese display for easy operation.
3) Anti pinch, anti collision and anti-collision functions. When the swing arm encounters resistance during the reset process, the motor will automatically stop working within the specified time and reset again after a default delay (until reset), with a small force (≤ 2Kg);
4) The anti-collision function automatically locks the swing arm when no opening signal is received;
5) Adjustable arm synchronization (for double swing situations);
6) It has an automatic reset function. If the gate is opened and the user does not pass within the specified time, the system will automatically cancel the user's permission to pass this time;
7) Can be freely adjusted to be normally open or normally closed to meet the requirements of different venues;
8) Can be connected to various card reading devices and receive relay switch signals for operation;
9) Unidirectional and bidirectional swing function, capable of controlling personnel entry and exit in one or both directions;
10) Remote control and management can be achieved directly through the management computer;
11) Delay automatic reset, the system defaults to automatic reset within 10 seconds (adjustable) after activation;
12) The voice motherboard has a memory function that allows users to swipe their cards continuously.
13) The voice motherboard has a password lock function, and the gate will automatically lock when the time is up. The machine can be used after resetting the password.
13) The power-off swing arm automatically swings open and the power on swing arm automatically closes, meeting fire safety requirements.

Scalable functionality

1） Sound and light alarm functions, including illegal intrusion alarm, anti pinch alarm, etc;
2) Counting function;
3) Infrared reset function;
4) Extended chassis, extended swing arm, etc.

Standard technical parameters
◇ Chassis material:Adopting automotive paint baking technology

◇ Chassis size: Bridge chassis (RNCF8008L, RNCF6008L); twelve00*280*980MM
◇ Arm length:300mm (standard)Channel width standard 600MM-1500MM

◇ Swing arm transmission angle: 180 degrees
◇ Swing direction: unidirectional or bidirectional
◇ Working voltage: AC220 ± 10% V/50 ± 10% HZ
◇ Drive motor: 24V DC brushed motor
◇ Input interface: dry contact signal or 12V level signal or 12V pulse signal with pulse width ≥ 100ms, driving current ≥ 10mA
Communication interface: RS485 standard distance ≤ 1200 meters
Traffic speed: 40 people/minute (normally open), 25-30 people/minute (normally closed)
◇ Gate opening and closing time: 2-3 seconds
◇ Time required to enter traffic mode after power on: 3 seconds
◇ Automatic reset time after malfunction: 10 seconds
◇ Working environment: indoor, outdoor (shade shed)
◇ Temperature: -10 ℃ -50 ℃ Relative humidity: ≤ 90%, no condensation
