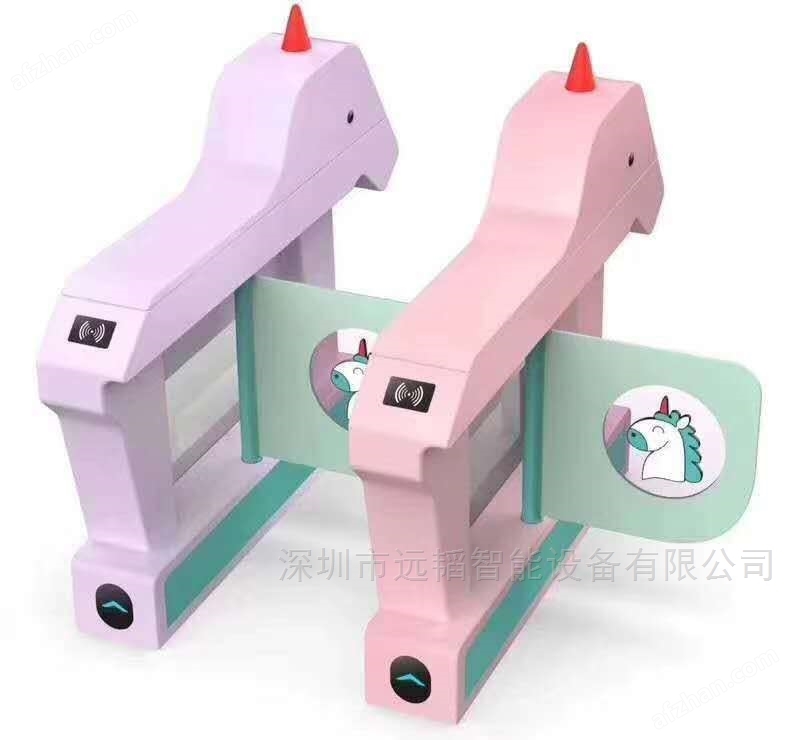

bridge typeKindergarten baking paintswing gate

Model: YT-B245

bridge typekindergartenbaking paintSwing gate is a commonly used swing gate in swing gates, which has voice functionfunctionAnd collision avoidancefunctionVoice prompts to enhance the processing capability of the swing brake motherboard，Ensure good synchronization of the swing gate.

Functional Features
1）swing gateEquipped with fault self checking and alarm prompt functions, convenient for users to maintain and use;
2) The operating status of programmable devices can be accessed through the built-in small keypad on the main control board; The voice motherboard has an LCD display screen, which has a Chinese display for easy operation.
3) Anti pinch, anti collision and anti-collision functions. When the swing arm encounters resistance during the reset process, the motor will automatically stop working within the specified time and reset again after a default delay (until reset), with a small force (≤ 2Kg);
4) The anti-collision function automatically locks the swing arm when no opening signal is received;

5) Adjustable arm synchronization (for double swing situations);
6) It has an automatic reset function. If the gate is opened and the user does not pass within the specified time, the system will automatically cancel the user's permission to pass this time;
7) Can be freely adjusted to be normally open or normally closed to meet the requirements of different venues;
8) Can be connected to various card reading devices and receive relay switch signals for operation;
9) Unidirectional and bidirectional swing function, capable of controlling personnel entry and exit in one or both directions;
10) Remote control and management can be achieved directly through the management computer;
11) Delay automatic reset, the system defaults to automatic reset within 10 seconds (adjustable) after activation;
12）The voice motherboard has a password lock function, and the gate will automatically lock when the time is up. The machine can be used after resetting the password.
13) The power-off swing arm automatically swings open and the power on swing arm automatically closes, meeting fire safety requirements.

Scalable functionality

1） Sound and light alarm functions, including illegal intrusion alarm, anti pinch alarm, etc;
2) Counting function;
3) Infrared reset function;
4) Extended chassis, extended swing arm, etc.

Standard technical parameters
◇ Chassis material: Domestic standard stainless steel, color options available

◇ Chassis size: Bridge chassis (RNCF8008L, RNCF6008L);long1100 * Width 260 * Height 980（MM）
◇通道: 600mm (standard), can also be 500-900mm
◇ Swing arm transmission angle: 180 degrees
◇ Swing direction: unidirectional or bidirectional
◇ Working voltage: AC220 ± 10% V/50 ± 10% HZ
◇ Drive motor:brushless motor
◇ Input interface: dry contact signal or 12V level signal or 12V pulse signal with pulse width ≥ 100ms, driving current ≥ 10mA
Communication interface: RS485 standard distance ≤ 1200 meters
Traffic speed: 40 people/minute (normally open), 25-30 people/minute (normally closed)
◇ Gate opening and closing time: 2-3 seconds
◇ Time required to enter traffic mode after power on: 3 seconds
◇ Automatic reset time after malfunction: 10 seconds
◇ Working environment: indoor, outdoor (shade shed)
◇ Temperature: -10 ℃ -50 ℃ Relative humidity: ≤ 90%, no condensation
