Hand disinfection, sole cleaning, shoe upper cleaning, and access control three roller gate

Our advantages: $r $n #160; 1. One machine replaces multiple machines and is concentrated in one area, making full use of workshop space; $r$n #160; 2. Multiple module combinations for hand disinfection, sole cleaning, boot cleaning, and access control management can be selected according to different customer needs; $r $n3. Change the traditional cleaning and disinfection mode, only complete the entire process can pass through the access control, and no violation can pass through the access control; $r $n4. The overall setting program does not require manual operation and is very intelligent; The replacement parts can be disassembled separately, which is very convenient; Hand disinfection, sole cleaning, shoe upper cleaning, and access control three roller gate

One stop cleaning machine for hand disinfection and shoe soles

Hand disinfection, sole cleaning, shoe upper cleaning, and access control three roller gate

Hand disinfection, sole cleaning, shoe upper cleaning, and access control three roller gate

XYT-X06

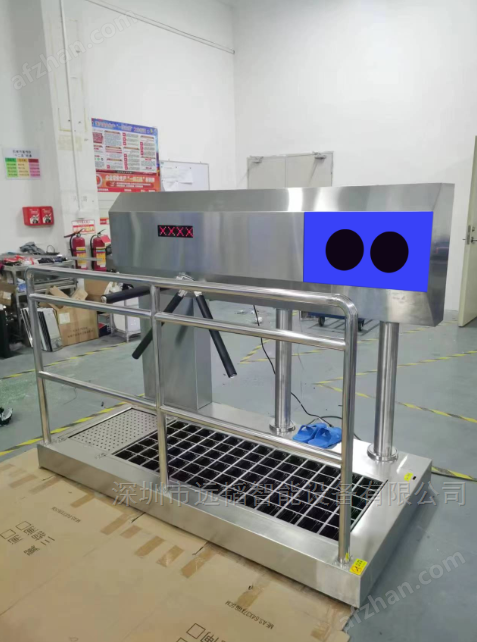

One stop cleaning machine for hand disinfection and shoe solesPlayed a mandatory hand disinfection roleCleaning the soles of shoesThe function of this system can effectively prevent employees from unintentionally disinfecting their hands when entering, and achieve automated unmanned management to ensure that each employee can ensure the disinfection of their hands, reliably guaranteeing hygiene, epidemic prevention, and safe production. The shell of this machine is made of 304 material, and the container is externally filled with liquid, which is convenient and fast. It is suitable for use in all food production workshops and GMP workshops. Fully automatic induction hand washing, induction drying, induction disinfection, avoiding secondary contact and preventing cross infection.

this modelProduct Model:XYT-XD06One stop cleaning machine for hand disinfection and shoe soles，We can ensure the hygiene of the hands of all personnel entering the production area. When using, after placing our hands in the disinfection room of the disinfection machine, the cleaning machine will automatically spray a suitable amount of hand sanitizer or disinfectant to ensure that the hands are cleaned or disinfected. Only after completing the entire cleaning or disinfection process, the rotating three roller gate can be opened for release, and employees and visitors can enter the production area through the disinfection pad machine. The disinfection machine can automatically spray hand sanitizer and disinfectant. The body of the disinfection machine is designed to be smooth for easy cleaning and maintenance

This hand disinfection machine is designed with a stainless steel body, simple operation, high efficiency, low maintenance rate, and excellent value for money. It is the best choice for manufacturers pursuing high hygiene standards,Coming out of the production area, you can press the button to enter and exit, but you don't need to disinfect your hands,After drying and spray disinfection, the gate is opened and the sole is cleaned and disinfected.

Performance Characteristics：

1. One machine replaces multiple machines and is concentrated in one area, making full use of workshop space;

2. Multiple module combinations for hand disinfection, sole cleaning, shoe upper cleaning, and access control management can be selected according to different customer needs;

3. Change the traditional cleaning and disinfection mode, only complete the entire process can pass through the access control, and any violation cannot pass through the access control;

4. The overall setting program does not require manual operation and is very intelligent; The replacement parts can be disassembled separately, which is very convenient;

5Infrared sensors achieve fully automatic operation without touch, avoiding cross contamination.

6One stop integrated disinfection function.

7、disinfectFunction: Induction disinfectionThen the gate can only be opened for passage.

8、Three stick gate machineUsers must be forced to disinfect their hands before entering. Simple, fast, and effective cleaning and disinfection

Technical parameters (hand disinfection gate):

Channel width: ≤ 550mm

通行速度：15-20 people per minute (depending on the speed of personnel operation)

Input voltage: 100-240v/(ac)

Working voltage: 24V/(DC)

Protection level:>44IP

Working temperature: -25 to+70 degrees

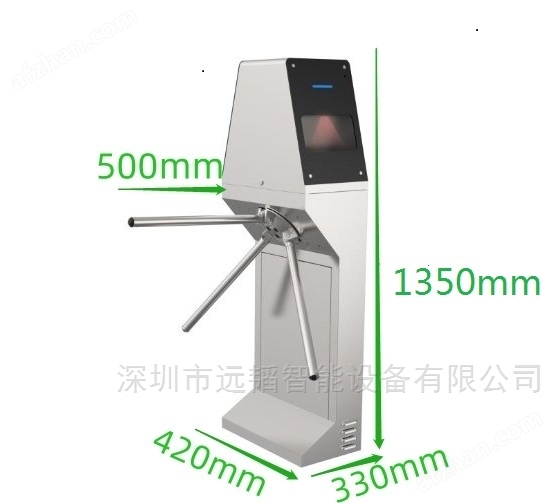

Product dimensions:2500*950*1350MM

Material: Stainless steel 304.

Application Scenario:Through high-precision infrared temperature detection and intelligent access control, non-contact rapid detection and disinfection of human body temperature can be achieved. Widely applicable to pedestrian flow control places such as offices, schools, shopping malls, communities, public services, and management projects.

Note:

1 This machine uses AC220V-240V.50/60HZ. Power ≤ 25W

2 When atomization is not complete, please check if the liquid is insufficient and replenish the liquid

3 If the nozzle is blocked, the nozzle can be unscrewed for cleaning or replaced

4 Please continuously sense for at least 10 seconds during first use to exhaust the air inside the pipeline

5 Please make sure to choose the appropriate liquid for this model, preferably 75% medicated alcohol
