EOCR-FEZ Schneider External ZCT Type Protector
NegotiableUpdate on 03/13
- Model
- Nature of the Manufacturer
- Producers
- Product Category
- Place of Origin
Overview
The EOCR-FEZ Schneider External ZCT Type Protector $r $nEOCR3EZ EOCR-FEZ Ground Leakage Protector not only monitors and protects against motor overload, phase loss, locked rotor, and current imbalance faults, but also monitors and protects the insulation and leakage conditions of the motor and its circuits. A B C three-phase and leakage current values are displayed cyclically, and the fault cause and fault current value can be displayed.
Product Details

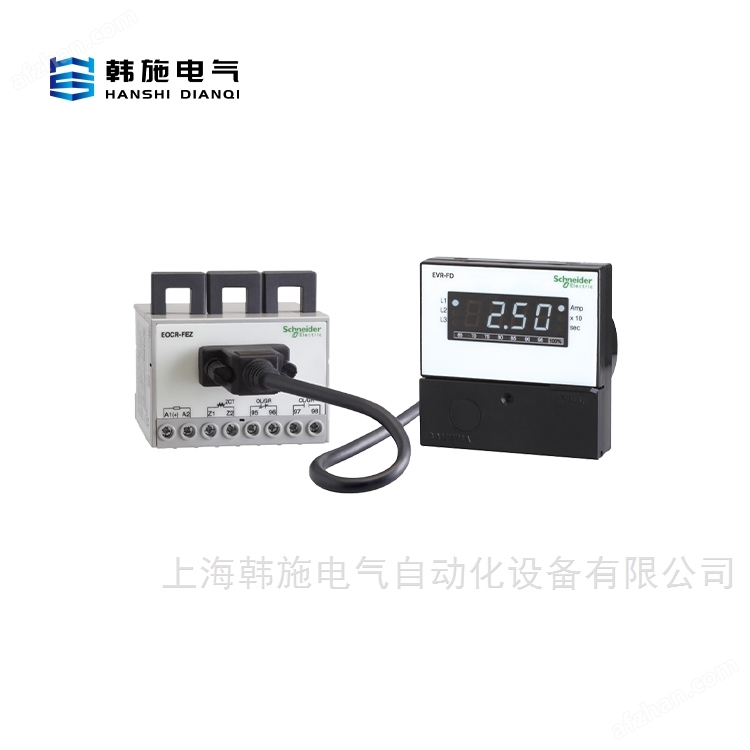

EOCR-FEZ Schneider External ZCT Type Protector
The EOCRFEZ protector has been widely used due to its excellent product performance and cost-effectiveness, and has received high praise from users. In 2022, Schneider Electric upgraded the product to the ECOR3EZ-05AUH/05AUT/05CUH/05CUT model; Eight models, EOCRFEZ-80AUH/80AUT/80CUH/80CUT, are sold by Shanghai Hanshi Electric as agents! This product has protection functions for overcurrent, undercurrent, phase loss, locked rotor, reverse phase, phase imbalance, and leakage
Residual Current Device (RCD)Technically, the following requirements should be met:
The sensitivity of electric shock protection should be correct and reasonable, and the general starting current should be within the range of 15-30mA.
The action time of electric shock protection should generally not exceed 0.1 seconds.
3. The protector should be equipped with necessary monitoring equipment to prevent it from losing its protective function when the operating state changes. For example, for voltage type electric shock protectors, a neutral grounding device should be installed.
EOCR-FEZ Schneider External ZCT Type Protector
protection function
✔ Overcurrent (timed limit: 0.2-120 seconds, inverse time limit: 1... 30 classes)
✔ Low current (0.5... 120 seconds)
✔ Phase loss (0.5-5 seconds)
✔ Reverse (0.1... 0.3 seconds)
✔ Current imbalance (1-10 seconds)
✔ Blocked rotation (after D-Time)
✔ Grounding (0.05 or 0.1-10 seconds)
EOCR-FEZSpecification Sheet
Basic Information | |
brand |
Schneider Electric |
Product Series |
EOCR |
place of origin |
South Korea (Yishan Factory) |
Authorized General Agent in China |
Shanghai Hanshi Electric Automation Equipment Co., Ltd |
Product Name |
EOCR-FEZ split typeElectronic overcurrent relay |
Application of Relay |
Three phase/single-phase motor protection |
Main functions |
Overload, underload, locked rotor (start/run), phase loss, reverse phase, current imbalance, leakage/ground fault |
Protection type |
Overload (In>set value) Under load (In<set value) Blocked rotation during startup (In>2-10 × In) Reverse phase Leakage/grounding fault (Ig>set value) Current imbalance (5-50%) |
Network type/frequency |
AC，50 / 60 Hz |
Current setting range |
05：0.5-7A 80：5-80A When used in combination with an external CT, the 05 type can protect up to 960 A when the current exceeds 80A |
residual operating current |
0.03 – 10 Aadjustable |
Electrical/mechanical characteristics | |
operating power supply |
100~240V AC |
Installation method |
Main body (35 mm DIN rail installation) Display panel (embedded installation) |
Contact configuration |
1 NC + 1 NO OL）OL=Trip |
Rated working voltage [Ue] |
600 V AC， 50-60 Hz (main circuit, UL compliant) 690 V AC， 50-60 Hz (main circuit, compliant with CSA) 690 V AC， 50-60 Hz (main circuit, compliant with IEC 60947-4-1) |
Rated impulse withstand voltage [Uimp] |
6 kV(Complies with IEC 60947-4-1) |
reset method |
Manual/Electrical/Automatic |
Time Setting |
Overcurrent action time: 0.2-120 seconds (timed) |
display mode |
Bar chart+7-segment LED |
Relay power consumption |
5 W |
Wiring specifications |
Control circuit cable 2 × 1... 1.5 mm ² flexible wire with cold pressed end (M3 screw) Control circuit cable 2 × 1... 1.5 mm ² flexible wire, without cold pressed end |
tightening torque |
Control circuit terminal: 0.8-1.2 N · m (suitable for 4.7 mm cables) |
Dimensions (W × H × D) |
56.3 × 70 × 106 mm Display panel: 70 × 72 mm |
Product weight |
Penetrating type: 0.39 kg Terminal type: 0.56 kg |
Usage environment | |
standard |
IEC 60947-4-1 |
certification |
CE |
Protection level |
IP20(Complies with IEC 60529) |
Operating Temperature |
-20 ° C...+60 ° C (compliant with IEC 60947-4-1) |
Storage temperature |
–40 °C … +85 °C |
Using altitude |
≤ 2000 m |
flame retardancy |
650 ° C, compliant with IEC 60695-2-12 |
impact resistance |
15 gn， 11 ms， Compliant with IEC 60068-2-7 |
anti-vibration |
4 gn(Panel installation), in accordance with IEC 60068-2-6 2 gn(35mm rail installation), in accordance with IEC 60068-2-6 |
insulation withstand voltage |
2 kV， 50–60 Hz， Between the shell and the circuit, in accordance with IEC 60255-5 1 kV， 50–60 Hz， Between contacts, in accordance with IEC 60255-5 2 kV， 50–60 Hz， Internal circuits comply with IEC 60255-5 |
surge resistance |
6 kV, compliant with IEC 61000-4-5 |
Electromagnetic Compatibility (EMC) |
Radio frequency electromagnetic field radiation immunity: 10 V/m, Level 3, in compliance with IEC 61000-4-3 Electrostatic discharge immunity: 8 kV (air), 6 kV (contact), in accordance with IEC 61000-4-2 Fast transient/burst immunity: 2 kV, compliant with IEC 61000-4-4 RF conducted immunity: 10 V, compliant with EN 61000-4-6 RF conducted emission: Class A, compliant with EN 55011 |

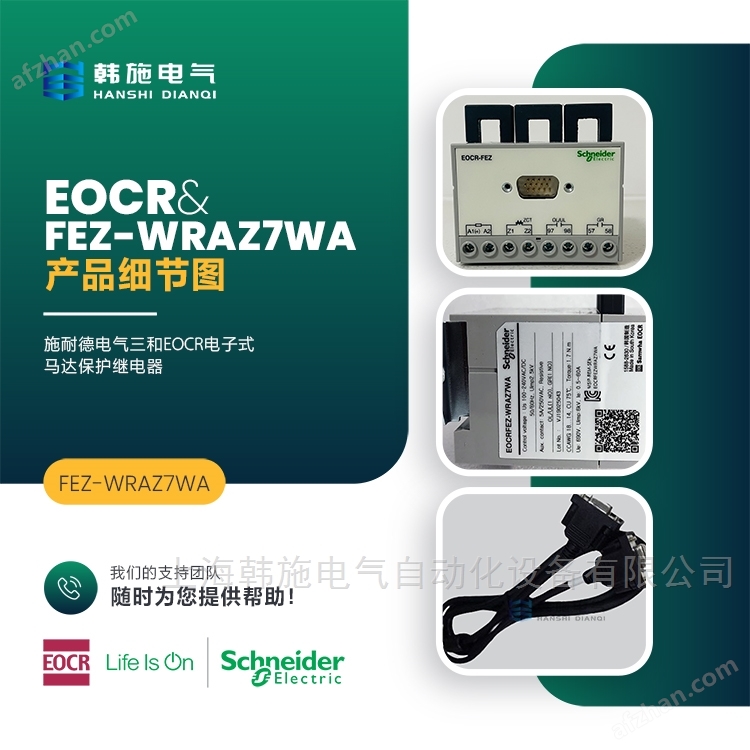

FEZ-WRAZ7WA Intelligent Motor Protection Relay Schneider EOCRProduct ordering method:
