ECS112PS Description

This model is an electronic switch embedded in MCU, designed to activate or deactivate semiconductor devices (TRIAC) based on the motor speed and corresponding starting torque

ECS112PS features

✔ Extend the service life of switch contacts

✔ Highly compatible with various motor designs

✔ Improve the efficiency of motor starting

✔ No switch noise, no contact shaking

✔ Protecting auxiliary windings or starting capacitors

✔ Can immediately recover from unexpected motor reversals

✔ Can be installed inside or outside the motor frame

ECS112PS product characteristics (typical values)

﹡For frequent (heavy load) restarts, it is recommended to parallel an additional discharge resistor to the starting capacitor

﹡﹡These are initialized through power interruption or normal motor operation status

Technical Specifications

EOCRSSD Schneider Electronic Digital Relay

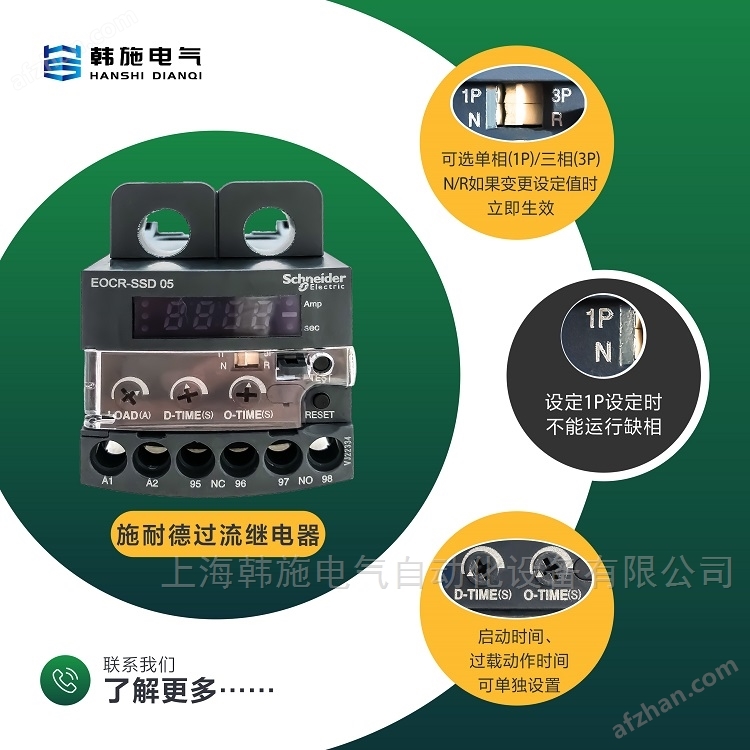

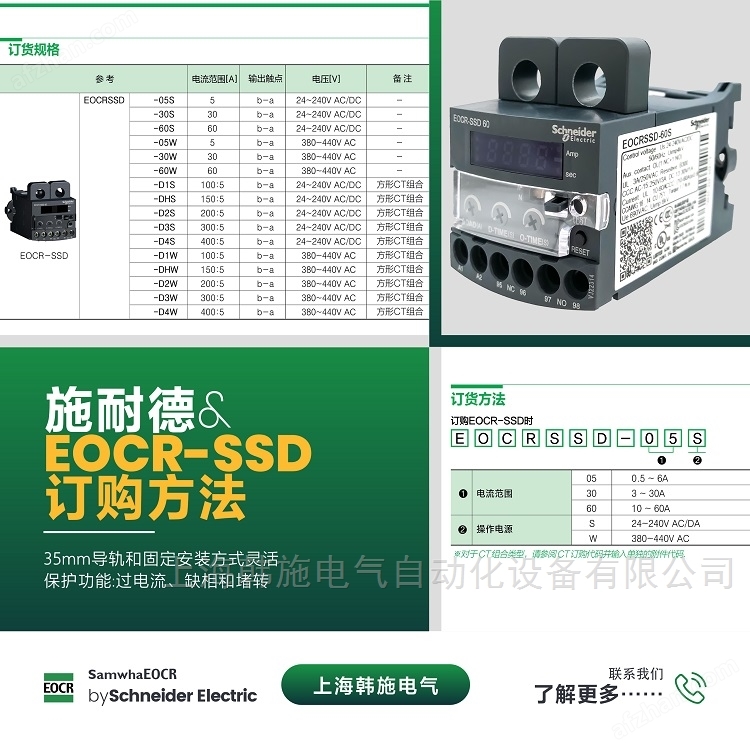

EOCR-SSD has overcurrent, phase loss, and locked rotor protection functions, and can display current values. At the same time, it can protect single-phase loads, and the safety modes N and R can be set by themselves. The power supply voltage is 24-240VAC/DC and 380-440VAC. According to different current protection ranges, it is divided into EOCRSSD-05S(0.5-6A),EOCRSSD-30S(5-30A),EOCRSSD-60S(10-60A),EOCRSSD-05W(0.5-6A),EOCRSSD-30W(5-30A),EOCRSSD-60W(10-60A). When used for single-phase load protection, only the neutral and live wires need to pass through 2 CTs respectively. At this time, it only has overcurrent protection function. EOCR-SSD adopts a 35mm guide rail and fixed installation method, which is easy to install and suitable for protecting equipment in various environments under 20-200Hz

The digital economy type overcurrent protection relay, also known as overload protector, has the functions of current monitoring and protection, phase loss and locked rotor. Compared with thermal relays, it has the characteristics of fast sensitivity and high accuracy. The current display function can also function as an ammeter.

EOCRSSD Schneider Digital Relay Product Details

EOCR-SSD wiring diagram

In the 'N' (fail safe) type, when the operating power is applied to A1，A2(or L1、L2)When,9596 switch on, 97 The 98 switch is turned off.

Shanghai Hanshi Electric, as a comprehensive protector for Schneider EOCR (formerly known as Sanhe) intelligent motors in South Korea, has been providing long-term stable supply and sales of the entire series of EOCR products. With quality assurance, we provide customers with good pre-sales, in sales, and after-sales services from beginning to end! The company has received unanimous recognition and praise from a large number of customers, and has maintained long-term strategic partnerships with well-known listed companies and large enterprises in the industry, establishing deep mutual trust and cooperation, and jointly promoting the rapid development of the industry.

EOCR, formerly known as Sanhe in South Korea, was a manufacturer of electronic relays. It was acquired by Schneider in 2001 and is now a wholly-owned subsidiary of Schneider. It is sold independently in China and is not sold in the same system as Schneider in China. Shanghai Hanshi Electric is! For product selection and technical consultation, please contact us by phone/email/.
