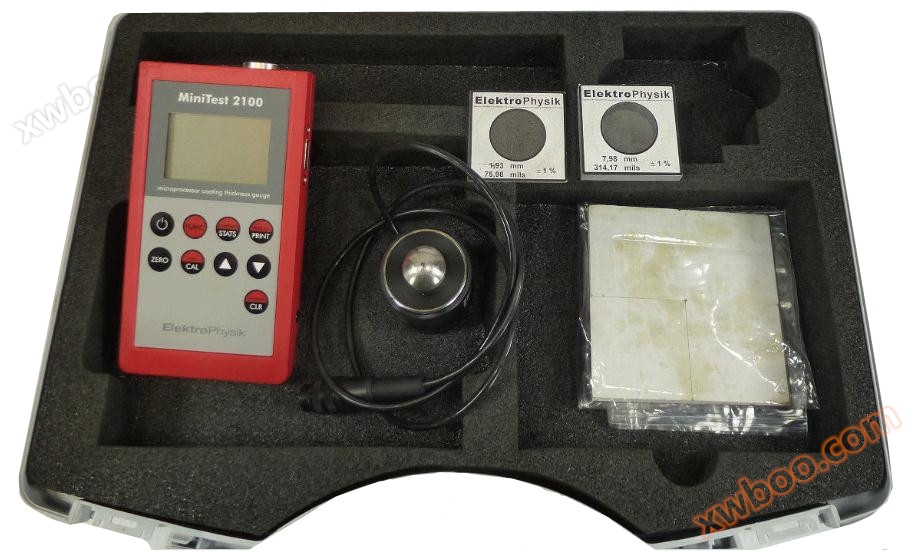

Elektrophysik (EPK) Minitest 2100 thickness gauge from Germany

NegotiableUpdate on 02/06

Model

Nature of the Manufacturer: Producers

Product Category

Place of Origin

Online Consult

Overview

MINITEST 2100测厚仪，根据测头类型的不同，分别运用磁感应和涡流原理测量覆层厚度。MINITEST2100型测厚仪，是便携式、无损、快速、精确测量覆层厚度的精密仪器。主要应用于防腐、电镀、化工、汽车、造船、航空、轻工等行业，适合实验室、工厂和户外现场使用。配置不同的测头，适用于不同场合。

Product Details

Product Description

Elektrophysik (EPK) Minitest 2100 thickness gauge from Germany-----Measure the coating thickness on steel or non-magnetic substrates using magnetic induction and eddy current principles respectively.MINITEST 2100 thickness gauge uses magnetic induction and eddy current principles to measure coating thickness according to different probe types.MINISTS2100 thickness gauge is a portable, non-destructive, fast, and precise instrument for measuring coating thickness. Mainly used in industries such as anti-corrosion, electroplating, chemical, automotive, shipbuilding, aviation, and light industry, suitable for use in laboratories, factories, and outdoor sites. Configure different probes for different occasions.

Functional features:

----When measuring on steel, MINISTS2100 utilizes the principle of electromagnetic induction to

----When measuring on non-magnetic substrates, it is based on the principle of eddy current.

----KeyboardControl can be transferred to a PC computer to enter the automatic control network.

----The measured values and user information are displayed on a large LCD monitor.

----When in low light, the monitor can choose background lighting to ensure reading of screen data.

----The MINISTS2100 memory array can automatically store over 10000 readings.

----Data can be printed and statistically evaluated, statisticsSix statistical values of readings x, s,n,max,min,kvar

----Six statistical values of readings x, s,n,max,min,kvar

MINITEST 2100Calibration method:

MINISTS11100/2100 has the following five different calibration methods:

Standard calibration: suitable for flat and smooth surfaces and rough measurements. For example, in situations where the calibration accuracy requirement is lower than a certain point.

One point calibration: set to zero, no need for standard foil. Used in situations where the allowable error exceeds 3%.

Two point calibration: Set to zero and use a standard foil. Used for error rangeMeasurements between 1-3% (* large). The range of probe error should be considered separately.

Two point calibration: Set to zero and use two standard foils. Used in the following situations:

A). Measure and read on rough surfaces;

B). Accurate measurement of a smooth surface with a thickness between two foil thicknesses.

Calibration through unknown thickness coating: foil calibration (only applicable to F06, F1.6, F3, FN2 probes used for F, and F1.6/90, F2/90, F10, F20, F50 probes). If there are no uncoated samples for comparison during calibration of the tested sample, this method should be used for calibration.

be carefulCalibration foil refers to all calibration standards, including 2mm, 5mm, and 10mm thick standard plates.

MINITEST 2100Other functions:

Perform average zero calibration on rough surfaces

※Using computers for basic calibration

※Read values of peripheralsTransmission and storage function

※Protect and lock calibration devicesSet up

※Replacing the battery involves storing numerical values and converting between metric and imperial systems

※Floating point and fixed-point data transfer

※Single value delay display within the group

※Display * small value in continuous measurement mode

MINITEST 2100Probe technical specifications:

probe	range	low-end resolving power	error	*Small curvature rate radius(Convex/concave)	*Small measurement Area diameter	*Xiao Ji Body thickness	Probe size
F05	0-500μm	0.1μm	±(1%+0.7μm)	1/5mm	3mm	0.2mm	φ15x62mm
F1.6	0-1600μm	0.1μm	±(1%+1μm)	1.5/10mm	5mm	0.5mm	φ15x62mm
F1.6/90	0-1600μm	0.1μm	±(1%+1μm)	Flat/6mm	5mm	0.5mm	φ8x170mm
F3	0-3000μm	0.2μm	±(1%+1μm)	1.5/10mm	5mm	0.5mm	φ15x62mm
F10	0-10mm	5μm	±(1%+10μm)	5/16mm	20mm	1mm	φ25x46mm
F20	0-20mm	10μm	±(1%+10μm)	10/30mm	40mm	2mm	φ40x66mm
F50	0-50mm	10μm	±(3%+50μm)	50/200mm	300mm	2mm	φ45x70mm
N02	0-200μm	0.1μm	±(1%+0.5μm)	1/10mm	2mm	50μm	φ16x70mm
N.08Cr	0-80μm	0.1μm	±(1%+1μm)	2.5mm	2mm	100μm	φ15x62mm
N1.6	0-1600μm	0.1μm	±(1%+1μm)	1.5/10mm	2mm	50μm	φ15x62mm
N1.6/90	0-1600μm	0.1μm	±(1%+1μm)	Flat/10mm	5mm	50μm	φ13x170mm
N10	0-10mm	10μm	±(1%+25μm)	25/100mm	50mm	50μm	φ60x50mm
N20	0-20mm	10μm	±(1%+50μm)	25/100mm	70mm	50μm	φ65x75mm
N100	0-100mm	100μm	±(1%+0.3mm)	100mm/plane	200mm	50μm	φ126x155mm
CN02	10-200μm	0.2μm	±(1%+1μm)	plane	7mm	unlimited	φ17x80mm
FN1.6	0-1600μm	0.1μm	±(1%+1μm)	1.5/10mm	5mm	F：0.5mm N：50μm	φ15x62mm
FN1.6P	0-1600μm	0.1μm	±(1%+1μm)	plane	30mm	F：0.5mm N：50μm
