The German Fischer DualScope FMP100 coating thickness gauge is a newly launched multifunctional coating thickness gauge by Fischer. The FMP100 coating thickness gauge is interchangeable between Chinese and English systems, with a bright color LCD display, touch screen, and USB interface. The FMP100 coating thickness gauge can be printed directly in PDF format, with password protection and automatic data backup. The FMP100 coating thickness gauge probe can be selected as a dual-purpose probe, which can automatically distinguish between magnetic and non-magnetic substrates during measurement without the need to replace the probe

Product Details

product description

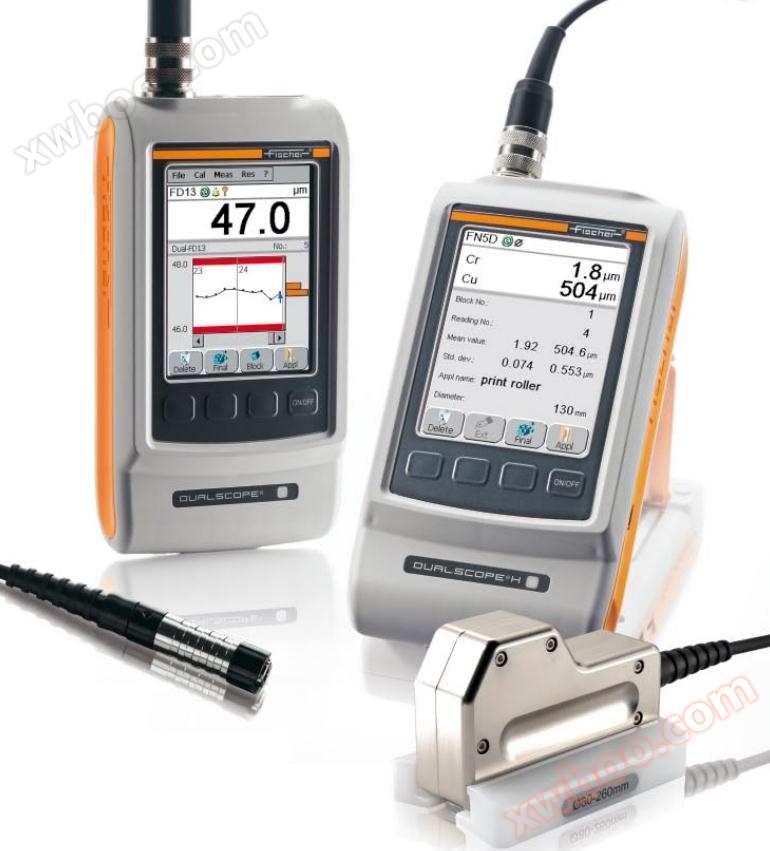

FISCHER Fischer, GermanyDualScope FMP100Thickness gauge - an advanced handheld instrument equipped with a color touch screen, capable of non-destructive measurement of almost all metal coatingsThe German Fischer DualScope FMP100 coating thickness gauge is a newly launched multifunctional coating thickness gauge by Fischer. The FMP100 coating thickness gauge is interchangeable between Chinese and English systems, with a bright color LCD display, touch screen, and USB interface. The FMP100 coating thickness gauge can be printed directly in PDF format, with password protection and automatic data backup. The FMP100 coating thickness gauge probe can be selected as a dual-purpose probe, which can automatically distinguish between magnetic and non-magnetic substrates during measurement without the need to replace the probe. In addition, there are multiple probe options that provide a user-friendly operating system to automatically identify the substrate, combining the two measurement methods (magnetic induction/eddy current, in compliance with DIN EN ISO 2178, ASTM D7091, and DIN EN ISO 2360 standards). This universal equipment can not only measure various coatings on steel, but alsoMeasurements can also be taken on coatings on non-ferrous metals and non-conductive substrates.

DualScope FMP100Main features:

◇Windows CE operating system with graphical user interface and user-defined files and folders
◇Large capacity memory that can store thousands of applications with different calibrations
◇Comprehensive evaluation and statistical functions, as well as support for graphical display of data, such as FDD。
◇What is the provided computer software FISCHER DataCenter? It has the following functions:

◇Transmission and storage of measurement values, comprehensive statistical and graphical evaluation, easy generation and printing of personal testing reports
◇Various probe models are available, including many special probes designed for complex measurement applicationshead
◇High resolution touch screen and virtual keyboard can be operated using a stylus or finger
◇USB communication and printer ports can be set to various European and Asian languages
◇Measure and capture various display screens, and visualize real-time processes with a concurrent 'raw value graph'

Following standards andConvention:

Non magnetic coating on magnetic metal substrates (using magnetic induction methods following DIN EN ISO 2178, ASTM B499), such as zinc, chromium, copper, tin, or paint, varnish, plastic, enamel on iron or steelNon-conductive coatings on non-magnetic metal substrates (using eddy current methods following DIN EN ISO 2360, ASTM B244), such as paints, varnishes, or plastics on aluminum, brass, or zinc, including aluminum oxide filmsASTM D7091-05 standard practice, non-destructive measurement of dry film thickness of non-magnetic coatings applied to ferrous and non-magnetic metals, non-conductive coatings applied to non-ferrous metals

DualScope FMP100Evaluation and statistical function:

※ Display important statistical data such as mean, standard deviation, * small/* large value, and range
※Display important statistical features, final results, and analyze variance (ANOVA) values
※Represented graphically as a histogram or a total frequency table
※Calculation of tolerance range and CP and CPK index correlation processing capability for input options

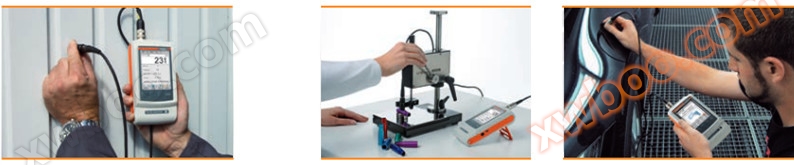

DualScope FMP100Typical application areas

Electroplating industry: Measurement of non-magnetic material coatings, such as zinc, chromium, copper, and tin coatings on steel
※ Coating manufacturing industry: coatings, paints, plastics on steel or aluminum, copper, brass
Automotive industry: using cavity probes to measure coatings on the interior of car bodies
Chemical industry: Porcelain paint in steel containers

※ Aviation: anodized film on aluminum

Technical parameters of DualScope FMP100:

Equipment typename	DUALSCOPE FMP100
Optional probe	Dual function probeProbe FD10：Smart plug-in probe with microprocessor chip for measuring coating thickness using magnetic induction and eddy current methods, elastic measurement system. Cable length:1.5m（5 feet）
resolution	0.1um
Measurement application and measurement range	0-1300um NF/Fe 0-800um ISO/NF
measuring method	magnetic induction/Automatic identification using eddy current method
measurement error useFischerStandard film shall prevail	NF/Fe：0-50um：≤0.5um 50-1300um：≤1% ISO/NF：0-100um：≤0.5um 100-800um：≤1%
repeatability useFischerStandard film shall prevail	0-100um：≤0.25um 100-1300um：≤0.5%

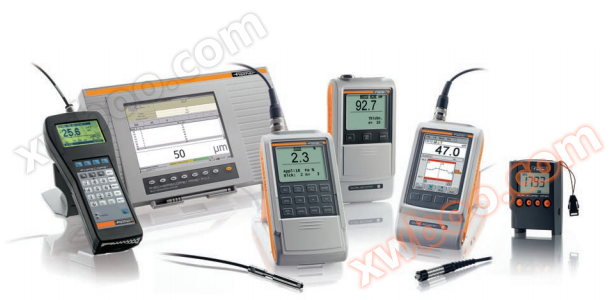

The relevant high-precision coating detection instrument products are introduced as follows:
