Facial recognition channel gate, real name attendance, scenic spot ticket checking, three roller gate

Facial recognition channel gate machine, real name attendance system, scenic spot ticket checking, three roll gate. The three roll gate is made of stainless steel plate stamping, with a beautiful and elegant appearance, rust prevention, and durability. The system also uses standard electrical interfaces to facilitate the integration of barcode cards, ID cards, IC cards, facial recognition, fingerprints, ID cards, QR codes and other reading and writing devices on this device, providing orderly and civilized passage for personnel entering and exiting, and preventing illegal personnel from entering and exiting. At the same time, in order to meet the requirements of fire exits, power outages and pole drops are implemented in emergency situations to organize personnel evacuation.

Facial recognition channel gate, real name attendance, scenic spot ticket checking, three roller gate

Facial recognition channel gate, real name attendance, scenic spot ticket checking, three roller gate

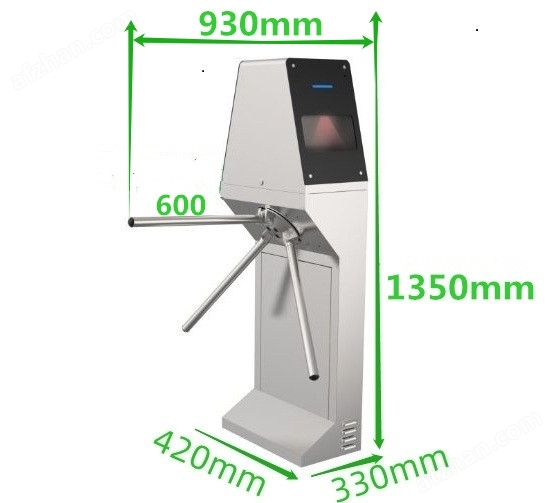

Vertical Three-Roller Gate

Vertical Three-Roller GateMade of stainless steel plate stamping, with a beautiful and elegant appearance, rust proof and durable, and the system adopts standard electrical interfaces for easy barcode card insertionTheIDcardTheICcardFace, fingerprint, ID card, QR codeWait for the read-write device to be integrated into this device， This provides an orderly and civilized way of passage for personnel entering and exiting, and can prevent illegal personnel from entering and exiting. At the same time, in order to meet the requirements of fire exits, power outages and pole drops are implemented in emergency situations, and personnel evacuation is organizedscatter..

tripod turnstileTechnical Parametersnumber ：

Light reminder：LEDDirection of passage refers toshow
Using the principle of optical hole positioning, there is no delay requirement for input control signals
Working environment: indoor, indooroutside(Yin shed
temperature：-10℃ ～ 50℃ relative humidity：≤90%Not condensing
Sensor card reading card slot size: comes with standard mounting bracket or customized
Opening time：0.2second
通行速度：30person/minute
Communication interface: StandardaccurateRS485Interface, distanceleave≤1200rice
Input interface: dry contact signalor+12VLevel signal or pulsewide≥100msofDC12VPulse signal, driving electricityflow≥10mA；
Structure: Framework structureconstitute/stainless steel casing

Production process: Fully computerized CNC laser cutting machine production

Dimensions: Length600×wide330×tall980（mm）

Barrier length: Chassis tooutside510(mm)

Maximum bearing capacity of the gate rod:50Kg

Driving force for gate rod operation：3Kg

Brake rod transmission mode: digital mode

Steering of the brake lever: one-way, two-way (optional); Multiple working modes are available for selection, allowing for bidirectional card reading

Restricted flow, can also read the card on one side and prohibit entry in the other direction, and read the card on the other side and allow free passage in the other direction

Automatic reset function: After opening the gate, if there is no passage within the specified time, the system will automatically lock, and the passage time can be adjusted

Three roll brake function featurespoint ：
· Adopting electromagnetic locking and photoelectric unlocking, it has a long service life, high reliability, and fast response speed.
· The entire system runs smoothly, with low noise and minimal impact.
· It has a call self check function and automatically restores to the locked state.
· There are multiple working modes to choose from, including bidirectional card reading, card reading in one direction while prohibiting entry in the other direction, and card reading in one direction while allowing free passage in the other direction.
· It has the function of power-off pole lowering and manual pole lifting when powered on. After power on, the pole is first pressed and then lifted to the upper horizontal line.
· Equipped with power-off and pole lowering functions to meet the special needs and fire safety requirements of users.
· It has a unified and standardized external electrical interface, which can be connected to various access control attendance or other control devices for system integration, and can be remotely controlled and managed through a management computer.
· The access control software can count the number of people passing in a certain direction and present it to the manager, so that the manager is familiar with the number of people passing in that direction.
· Having clear directional indication function for intuitive useofLEDPassers indicate whether passage is allowed or prohibited.
· It has card reading with and without memory function, and users can set it according to their own needs through the motherboard keyboard.
· Through software settings, the total number of personnel inside the venue can be limited to meet the special needs of certain special occasions.
· It has an automatic reset function. After reading the card, the traveler will arrive at the designated time（4When there is no passage within seconds, the system will automatically cancel the current passage permission of the traveler.

Three roll gate system testing powercan ：

Left side open gate passage: When there is a left side open gate signal, the three roller gate will automatically unlock, and the direction indicator will change to a green passage sign, waiting for pedestrians to enter; When a pedestrian enters and pushes the three roller gate to rotate a certain angle, the reset photoelectric switch becomes effective and after turning the reset photoelectric switch, the system automatically completes the locking action, and the direction indicator turns into a red no go sign.

Right side gate opening passage: When there is a right side gate opening signal, the motor will automatically operate in an unlocked state, and the direction indicator will turn into a green passage sign, waiting for pedestrians to enter; When a pedestrian enters and pushes the three roller gate to rotate a certain angle, the reset photoelectric switch becomes effective and after turning the reset photoelectric switch, the system automatically completes the locking action, and the direction indicator turns into a red no go sign.

The maximum duration of each passagefor4When no one passes through after the set passage time, the device will automatically reset;
Drop rod function test: Cut off the power and lower the gate rod; After the power is turned on, the electromagnet will generate magnetic force, and manual lifting can be performed;

Lifting method: First press the rod with force, then lift it to a horizontal position and clamp it in place;

Typical Applications
⊙Office locations: smart buildings, commercial buildings, offices, factories, etc
⊙Educational institutions: schools, colleges, research institutes, libraries, etc
⊙Commercial service venues: supermarkets, shopping malls, hotels, clubs, banks, etc
⊙Residential locations: residential areas, communities, apartments, dormitories, etc
⊙Transportation stations: Bus station, train station, subway, airport
⊙Scenic areas: scenic spots, amusement parks, theaters, sports centers
