German Elektrophysik (EPK) MiniTest 650 thickness gauge

NegotiableUpdate on 02/06

Model

Nature of the Manufacturer: Producers

Product Category

Place of Origin

Online Consult

Overview

The MiniTest 650 is particularly suitable for measuring coating thickness on harsh environments and abrasive surfaces, such as sandblasted steel, heavy-duty corrosion-resistant shipbuilding, offshore and mining facilities, and plasma sprayed surfaces.

Product Details

product description

German Elektrophysik (EPK) MiniTest 650 thickness gauge------More durable and high-precision, it is an ideal measuring tool for the precision machining industry.MiniTest 650 is an upgraded version of 600, designed for use inSimilar to roughSpecially designed for measuring the surface of coatings in harsh environments such as sandblasted steel plates and plasma spraying.A sturdy coating thickness gauge with a fixed external probe, used for all non-magnetic coatings on steel and all insulation coatings on non-ferrous metals. Especially suitable for measuring coating thickness in harsh environments and on grinding surfaces, such as, Sandblasting steel, heavy-duty corrosion-resistant shipbuilding, offshore and mining facilities, plasma sprayed surfaces. MiniTest 650 is the successor product of MiniTest 600, which has undergone years of trial and testing. To measure on rough steel surfaces, for example At the shipyard, it is equipped with a special wear-resistant F-probe, which can be used for a long time.

MiniTest 650 Typical Applications

The design of MiniTest 650 is aimed at durability and high precision, making it an ideal tool for measurement work in any precision machining industry.

The easy to operate rough coating thickness gauge extends the mechanical life on one hand,

On the other hand, it meets the high-precision requirements of any professional user in industries such as shipbuilding, automotive, bridge construction, and architecture.

According to different models, MiniTest 650 is suitable for measuring:

Any non-magnetic coating on steel, such as paint, enamel, chromium, zinc, etc.

Any insulation coating on non-ferrous metals (such as copper, aluminum, austenitic stainless steel), such as paint, anodized film, ceramics, etc.

Main features of MiniTest 650

Coating thickness measurement up to 2 and 3 millimeters

Universal probe, providing automatic substrate recognition, can quickly measure steel and non-ferrous metals

Durable probes provide almost unlimited durability

USB interface transfers data to PC

Statistical evaluation of readings (measurement data)

Rubber trimmed shell providedImpact protection.

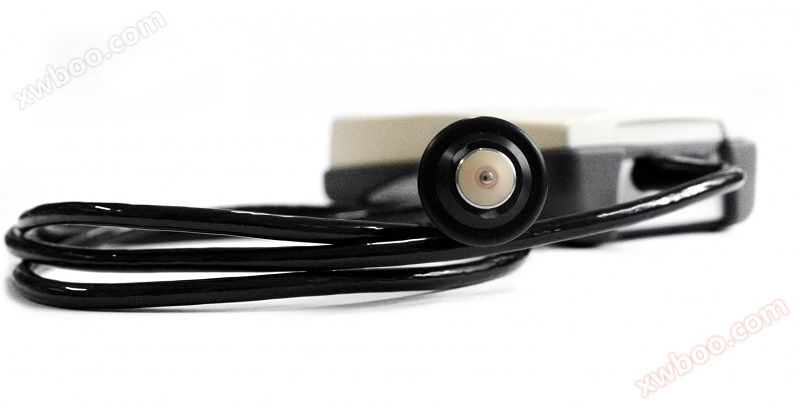

The newly developed probe is made of wear-resistant hard alloy material

MiniTest 650 model description

MiniTest 650 F

Measure non-magnetic coatings (varnish, enamel, etc.) on ferromagnetic substrates such as steel used in construction and automotive bodies,

Chromium, etc.).

Statistics display (number of readings, mean, standard deviation, * large value, * small value).
The measurement range is 0 to 3 millimeters.
Interchangeable units of measurement are μ m or mil.
1 point and 2 point calibration.

MiniTest 650 N
Measure insulation coatings (varnish, enamel, anodized film, etc.) on non-ferrous metals (aluminum, copper, brass, etc.).
Statistics display (number of readings, mean, standard deviation, * large value, * small value).
The measurement range is 0 to 2 millimeters.
Interchangeable units of measurement are μ m or mil.

1 point and 2 point calibration.

MiniTest 650 FN
Measure non-magnetic coatings (such as varnish, enamel, etc.) on ferromagnetic substrates (such as steel used in construction and vehicle bodies),

And there are measurements availableInsulation coatings (varnish, enamel, anodized film, etc.) on colored metals (aluminum, aluminum, etc.)
Statistics display (number of readings, mean, standard deviation, * large value, * small value).
The measurement range is 0 to 2 millimeters.
Interchangeable measurement sheetsPosition μ m or mil.
1 point and 2 point calibration.

MiniTest 650 B-FN
Measure non-magnetic coatings (such as varnish, enamel, etc.) on ferromagnetic substrates (such as steel used in construction and vehicle bodies),

And measure insulation coatings (varnish, enamel, anodized film, etc.) on non-ferrous metals (aluminum, aluminum, etc.)）

The measurement range is 0 to 2 millimeters.
The preset measurement unit is μ m or mil. Please indicate this when placing an order.
1 point calibration.

MiniTest 650 B-F

Measure non-magnetic coatings (varnish, enamel, etc.) on ferromagnetic substrates such as steel used in construction and automotive bodies,

Chromium, etc.).

The measurement range is 0 to 3 millimeters.
The preset measurement unit is μ m or mil. Please indicate this when placing an order.
1 point calibration.

MiniTest 650 E-F
Measure non-magnetic coatings (varnish, enamel, chromium, etc.) on ferromagnetic substrates such as steel used in construction and automotive bodies.
The measurement range is 0 to 3 millimeters.
The preset measurement unit is μ m or mil. Please indicate this when placing an order.

MiniTest 650 E-FN
Measure non-magnetic coatings (such as varnish, enamel, etc.) on ferromagnetic substrates (such as steel used in construction and vehicle bodies),And testingInsulation coatings (varnish, enamel, anodized film, etc.) on non-ferrous metals (aluminum, aluminum, etc.)

The measurement range is 0 to 2 millimeters.

MiniTest 650Technical Parameter
measuring range	Ftype(steel): 0 μm - 3000 μm / 120 mils Ntype(Non ferrous metals): 0 μm - 2000 μm / 80 mils FNtype(Dual probe): 0 μm - 2000 μm / 80 mils
Measurement uncertainty	± (2 %reading+ 2 μm / 0.08 mils)
*Small curvature radius	5 mm / 0.2“Convex surface 25 mm /1“concave
*Small measurement area	Ø 20 mm / 0.8“
*Low base thickness	Fprobe: 0.5 mm / 20 mils Nprobe: 50 μm / 2 mils
display	4Digital image data(11 mm / 0.44”)
unit of measurement	μm – mils,User Selectable
calibration	Standard,1Point and2Point calibration
statistics	From * high9.999Reading calculation –average value –standard deviation –Number of readings –Small value –Large value
data interface	USB
power supply	3jointAAAMicro battery (over)10,000Individual readings)
Size and Weight	Thickness gauge: 70 mm x 122 mm x 32 mm / 2.7” x 4.8” x 1.26” probe: Ø 15 mm x 62 mm / Ø 0.60” x 2.44” 225 g / 7.93 ozs
ambient temperature	Thickness gauge: 0 °C - 50 °C/32 °F - 122 °F probe: -10 °C - 70 °C/14 °F - 158 °F
