Mg sensor steering column force sensor

NegotiableUpdate on 02/16

Model

Nature of the Manufacturer: Producers

Product Category

Place of Origin

Online Consult

Overview

The force applied by the mg sensor steering column force sensor $r $n causes compression or strain of the substrate. Measure deformation using a strain gauge.

Product Details

Mg sensor steering column force sensor

Pressure measuring element, three-axis position: steering column

Direction of force Fx, Fy, Fz

Application: Measuring Forces in the Steering Column

Equivalent type customized version

Resistance measurement specification: strain gauge

Selection: Polarity based on customer specifications

Mg sensor steering column force sensor

Technical Description

The applied force causes compression or strain of the matrix. Measure deformation using a strain gauge.

The wiring of multiple strain gauges used in the full bridge circuit compensates for the influence of temperature on the zero signal and the cross effects from other force and torque applications.

technical specifications	unit	value
technical specifications	unit	Fx	Fy	Fz
measurement range	kN	20	20	20
sensitivity	µV/V/kN	120	120	55
output signal	mV/V	2.4	2.4	1.1
Bridge resistance	Ω	350	350	700
Zero signal	mV/V	≤ 0.05
Nonlinear amplitude	%	≤ 1.0
lag	%	≤ 2.0
Channel crosstalk	%	≤ 5.0
power supply voltage	V	2–15
ultimate load	%	150
insulation resistance	MΩ	> 100
temperature range	°C	-30…+70
weight(approximate value)	g	180

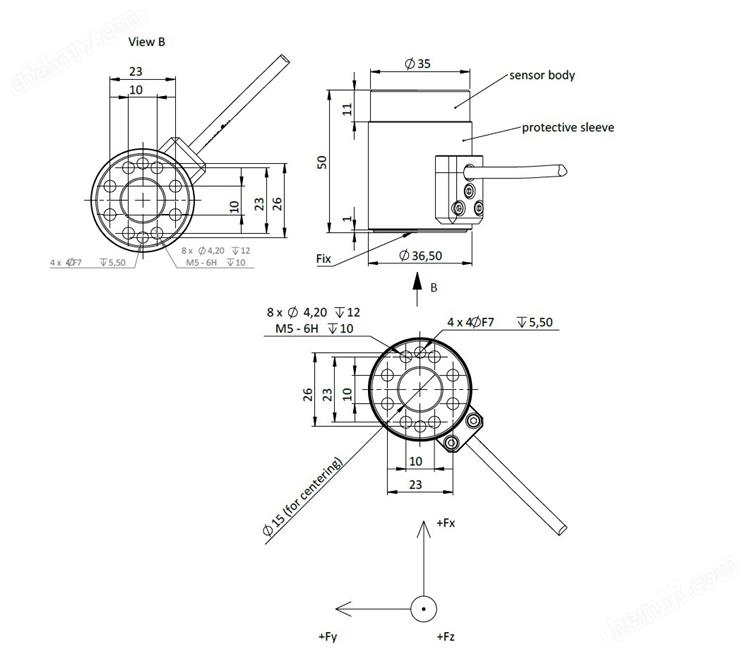

mg-sensor转向管柱力传感器

Torque detectionMeasure the torque of the driver turning the steering wheel to determine the output of the power assist motor.

Steering angle detectionMonitor the steering wheel rotation angle for ADAS functions such as EPS control and lane keeping (LKA).

Steering speed detectionSome sensors can also detect steering speed and optimize dynamic power response.
