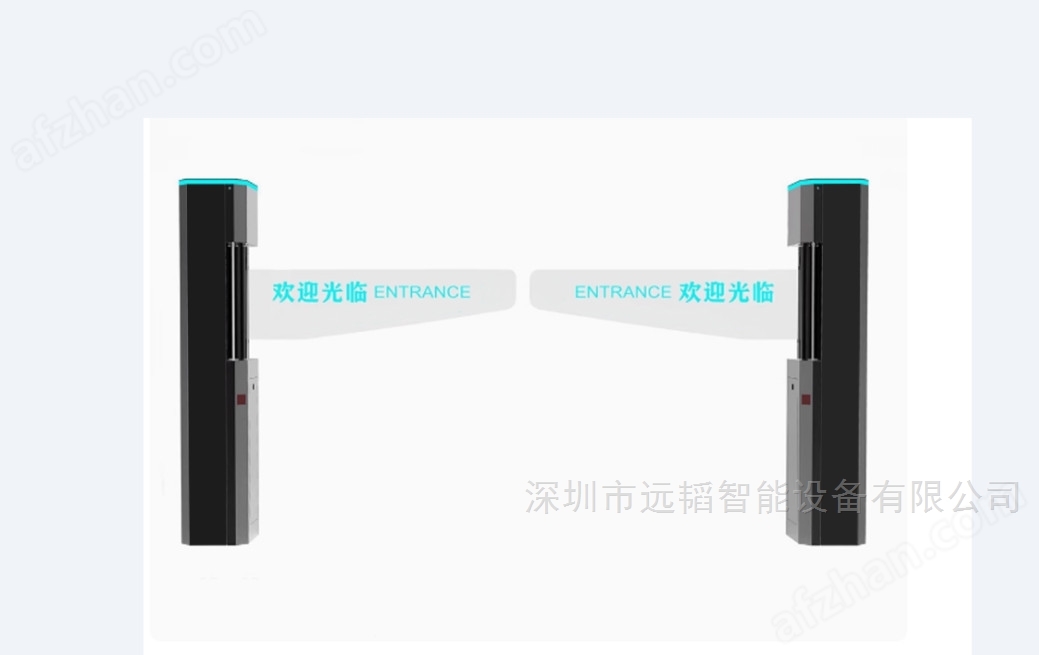

Supermarket column swing gateProduct Introduction

model：YT-B243

Supermarket column swing gateIt is a powerful and fast barrier free personnel access control system, which is an ideal device for intelligent personnel access management. It effectively solves the problems of obstacles in traditional three roll gate access, especially for luggage carrying and disabled personnel, as well as low access speed. It is an ideal upgraded product for three roll gates. Mainly used in shopping malls, high-end residential areas, etc. Main functions: Unidirectional induction on/off; The same functionality can also be extended in both directions.

Technical Specifications:

1.1 Structure: Made of stainless steel plate stamping, rust proof, moisture-proof, sturdy and durable, while also having emergency power supply for power outagescan Voice broadcasting, anti pinch function, Six column beltIllegal intrusion, reverse flow alarm.

1.2 Overall dimensions:

Main column diameter:220MM*180mm*1000MM. Attachment rod diameter：89mm*980MM

Attachment rod and main body width:>swing rodlong Height:980mm

1.4 Arm length swing：500mm-800mm

1.5 The maximum load-bearing capacity of the swing arm：30Kg

1.6 Swing arm transmission angle：180°

1.7 Swing direction: bidirectional

1.8 working power supply：AC220 ±10%V/50 ±10%HZ

1.9 drive motor： DC brushed powermachine200W/24V1.

10 input interface： dry contact signalor12VLevel signal or pulsewide≥100msof12VPulse signal, driving electricityflow≥10mA

1.11 communication interface：RS485markaccurate Communication distanceleave≤1200rice

1.12 通行速度： 40person/Minutes (normally open)，25-30person/Minutes (normally closed)

1.13 Gate opening and closing time：2-3second

1.14 The time required to enter the traffic state after power on： 3second

1.15 Automatic reset time after malfunction：10second

1.16 Work environment:

◇Indoor and outdoor (shade shed)

◇temperature：-10℃—— 50℃

◇relative humidity：≤90%Not condensing

Features and characteristics
1）Equipped with fault self checking and alarm prompt functions, convenient for users to maintain and use;
2)Programmable device operation status through the built-in small press pad on the main control board;
3)Anti pinch and anti collision functions: When encountering resistance during the reset process of the swing arm, the motor automatically stops working within the specified time, and resets again after a default delay (until reset) with great forcesmall(≤2Kg)；
4）The anti-collision function automatically locks the swing arm when no opening signal is received;
5）Arm synchronization function;
6)It has an automatic reset function. If the gate is opened and the user does not pass within the specified time, the system will automatically cancel the user's permission to pass this time;
7）Can be freely adjusted to be normally open or normally closed to meet the requirements of different venues;
8）Induction or delayed automatic reset, the system defaults to enabledafter10Second (adjustable) automatic reset;
9）The power-off swing arm automatically swings open and the power on swing arm automatically closes, meeting fire safety requirements

Main structure and configuration
Lordpillar 2root
Appendixpillar 4root
Appendixrod 8pendulumarm 2a
controlboard 2set
voltage transformationdevice 2a
electricitymachine 2a
Movement and Transmission Departmentdivide 2set
Scope of application:

Suitable for one-way or two-way control of pedestrian flow in and out channels.

Applicable places: supermarkets, border checkpoints, banks, hotels, tourist attractions、Electronic ticket verification system for high-end office buildings, restaurants, upscale residential areas, etc、 Hospitals, special passages with high foot traffic

What are the advantages of supermarket turnstiles

There are many engineering companies doing supermarket projects now, and with the trend of the times, more and more supermarkets are using infrared sensing turnstiles to restrict personnel flow and reduce congestion. Although many people are using them, many people do not know the advantages of supermarket turnstiles! It's okay if you don't know, Shenzhen Yuantao Intelligent Equipment Co., Ltd. will come all the way for you.

AAnti pinch function: It has both mechanical and electronic anti pinch functions, and the dual anti pinch function greatly improves the safety and reliability of the whole machine. Security products put customer safety first, and there are no safety hazards for customers when passing through supermarket turnstiles. Even if the electronic anti pinch is damaged, the mechanical anti pinch force is very small, and the swing brake is open or reset（≤3N.M）It can automatically slip.

　　BFault self inspection is both generous and convenient for maintenance and use.

　　DSwing arm synchronization function: When the swing gate receives a traffic command, both swing arms open the gate at the same time. Upon receiving the gate closing command, they will immediately close the gate synchronously, with consistent steps and good synchronization.

EPower off and opening function: In case of emergency, after the backup power is disconnected, the power-off will synchronously open the swing arm of the swing gate, which meets the requirements of fire safety. It will perform self inspection upon power on and automatically close.

Sometimes customers may ask to make it normally closed in the event of a power outage! At this point, we need to analyze for our customers. Supermarkets are places with high pedestrian traffic, and in order to prevent emergency situations, the passage must be unobstructed. We must follow fire safety regulations. On the other hand, it is convenient for the supermarket. Supermarkets usually have goods in and out at night, and in the event of a power outage, the supermarket will set up gates to create an accessible passage that will not hinder the entry and exit of goods.
